Description

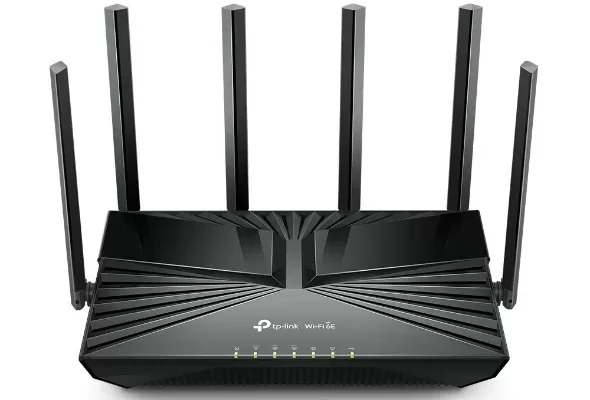

AXE5400 Tri-Band 6-Stream Wi-Fi 6E Router
- WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.‡
- AXE5400 Tri-Band: Delivers Wi-Fi speeds up to 5.4 Gbps, enabling your devices to run at full speed.†
- Extensive Coverage: 6× antennas and Beamforming ensure broad coverage.†
- OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
- Connect More Devices: OFDMA, MU-MIMO, and a powerful CPU increase capacity by 4 times to enable simultaneous stable transmission to more devices.†
- HomeShield: Customize your home network with enhanced security and control.*
- Great Compatibility: Works with all Wi-Fi devices** and all internet providers***, and is compatible with Amazon Alexa.\
| WIRELESS | |
|---|---|
| Standards | • IEEE 802.11ax 6 GHz, • IEEE 802.11ax/ac/n/a 5 GHz, • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AXE5400 • 6 GHz: 2402 Mbps • 5 GHz: 2402 Mbps • 2.4 GHz: 574 Mbps |
| WiFi Range | 2-3 Bedroom Houses
6× Fixed High-Performance Antennas Beamforming High-Power FEM |
| WiFi Capacity | Very High
Tri-Band OFDMA Airtime Fairness DFS 6 Streams |
| Working Modes | • Router Mode • Access Point Mode |
| SECURITY | |
|---|---|
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection |
| Guest Network | 1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN • PPTP • L2TP |
| VPN Client | • OpenVPN • PPTP • L2TP |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Ethernet Ports | • 1× Gigabit WAN Port • 4× Gigabit LAN Ports |
| USB Support | 1× USB Port
• Supported Partition Formats: • Supported Functions: |
| Buttons | • LED On/Off Button • WPS Button • Wi-Fi On/Off Button • Power On/Off Button • Reset Button |
| Power | 12 V ⎓ 2.5 A |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| Parental Controls | HomeShield Parental Controls
Custom Profiles |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, RoHS |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | FCC: ≤29 dBm (2.4 GHz), ≤28 dBm (5 GHz), ≤22 dBm (6 GHz) |
| WiFi Reception Sensitivity | 2.4 GHz: 11ax HE20 MCS0: -95 dBm, 11ax HE20 MCS11: -64 dBm 11ax HE40 MCS0: -92 dBm, 11ax HE40 MCS11: -62 dBm 5 GHz: 6 GHz: |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 10.3 × 5.6 × 2.0 in (262 × 143.5 × 51.5 mm) |
| Package Contents | • Wi-Fi Router Archer AXE5400 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
