| Image Sensor | 1/2.8" 2.4Megapixel CMOS |
| Electronic Shutter | 1/3s~1/100,000s |
| Video Frame Rate | 25/30/50/60fps@720P; 25/30fps@1080P |
| Min. Illumination | 0.05Lux/F1.4, 0Lux IR on |
| Video Output | 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
| Max. IR LEDs Length | 30m, Smart IR |
| Day/Night | Auto(ICR) / Color / B/W |
| Focal Length | 2.7~12mm |
| Angle of View H | 93º~35º |
| Lens Type | Manual / Fixed Iris |
| Power Supply | DC12V±20% |
| Power Consumption | Max 4.5W |
| Working Environment | -30°C~+60°C |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Ingress Protection | IP67 |
| Material | Metal |

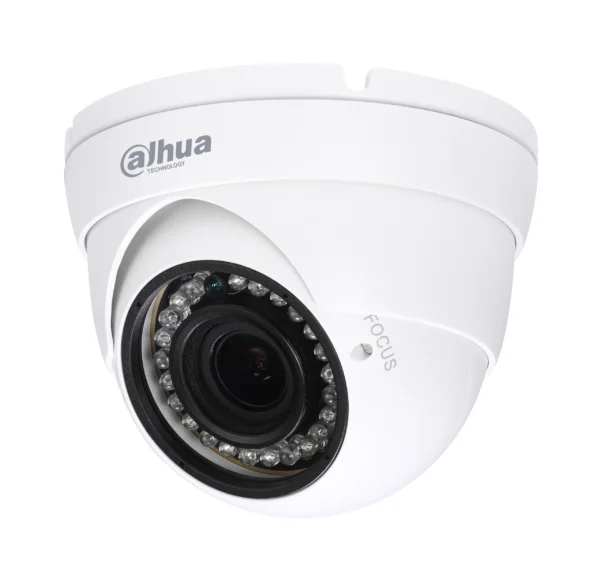

DH-HAC-HDW2220RP-VF – Dahua 2.4Megapixel 1080P Water-proof IR HDCVI Dome Camera
Call for Price
- 1/2.8″ 2.4Megapixel CMOS
- 25/30fps@1080P, 25/30/50/60fps@720P
- High speed, long distance real-time transmission
- HD and SD switchable
- OSD Menu, control over coaxial cable
- DWDR, Day/Night(ICR), AWB, AGC, BLC, 3DNR
- 2.7~12mm vari-focal lens
- Max. IR LEDs length 30m, Smart IR
- IP67, DC12V
