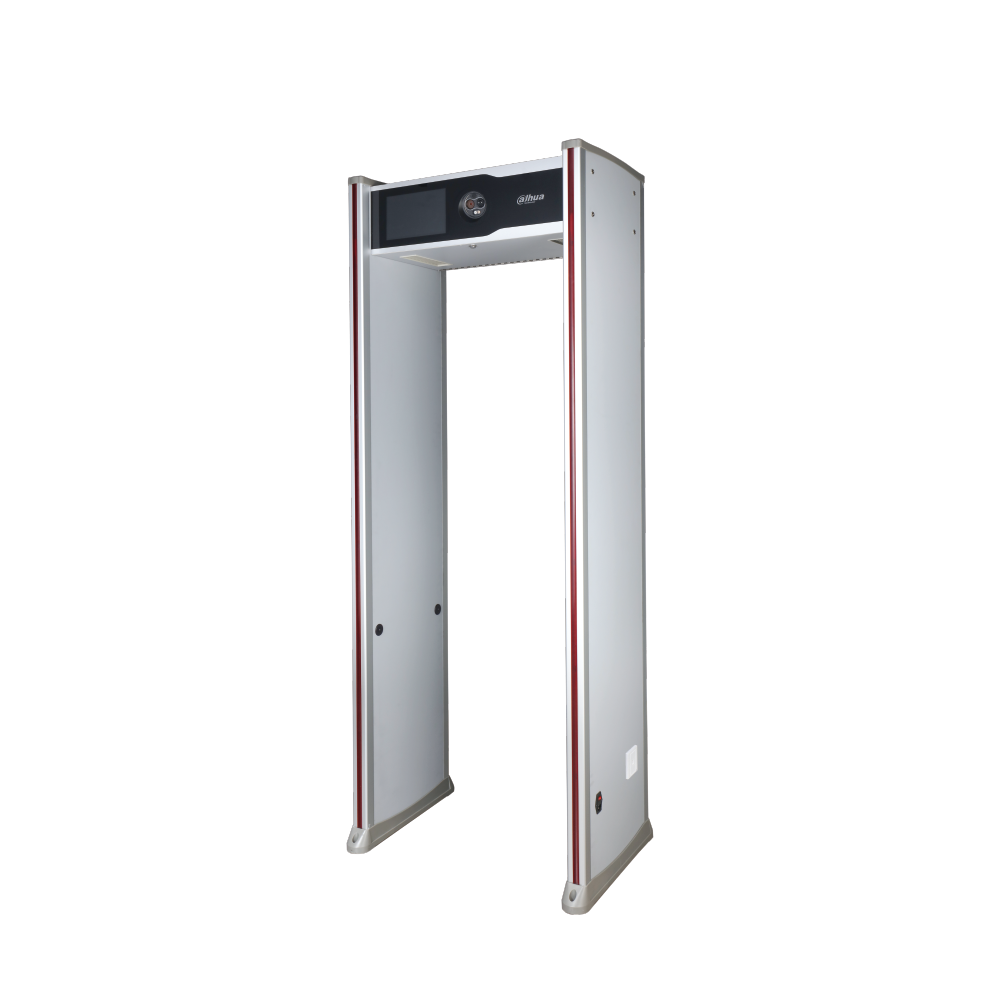

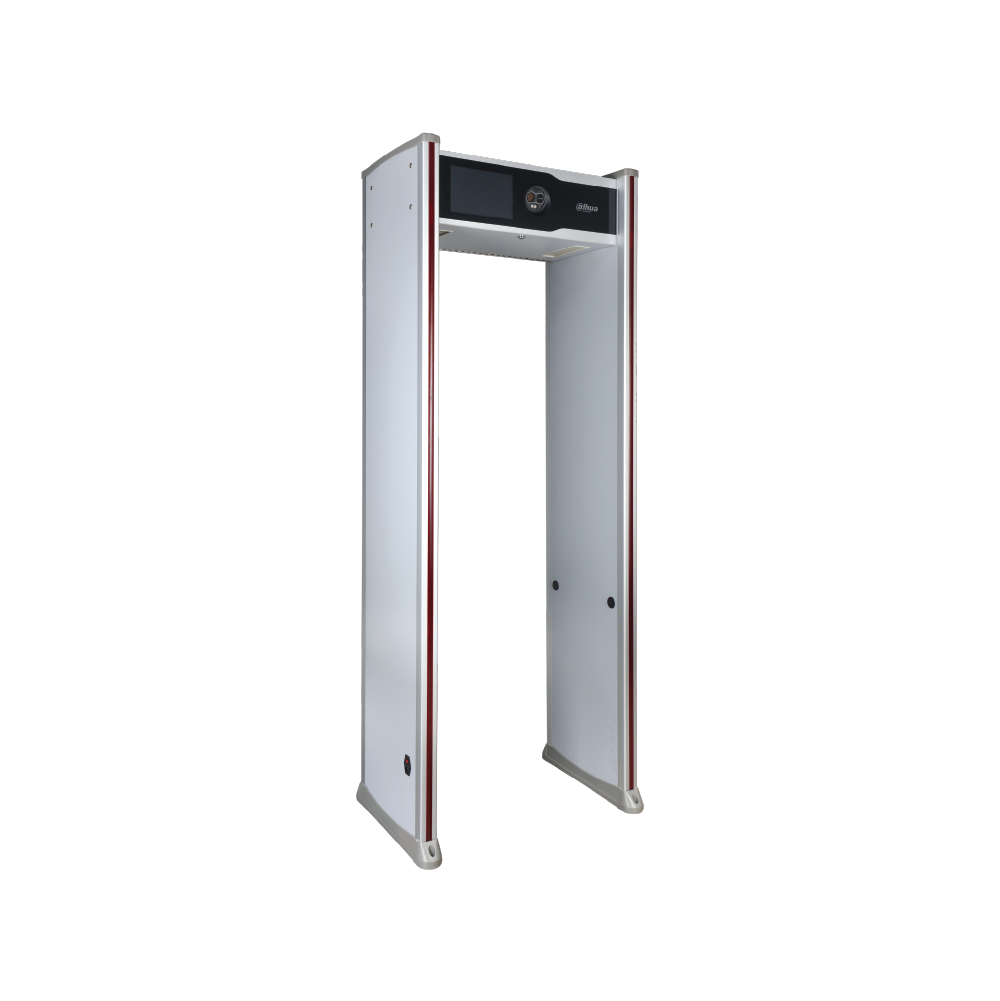

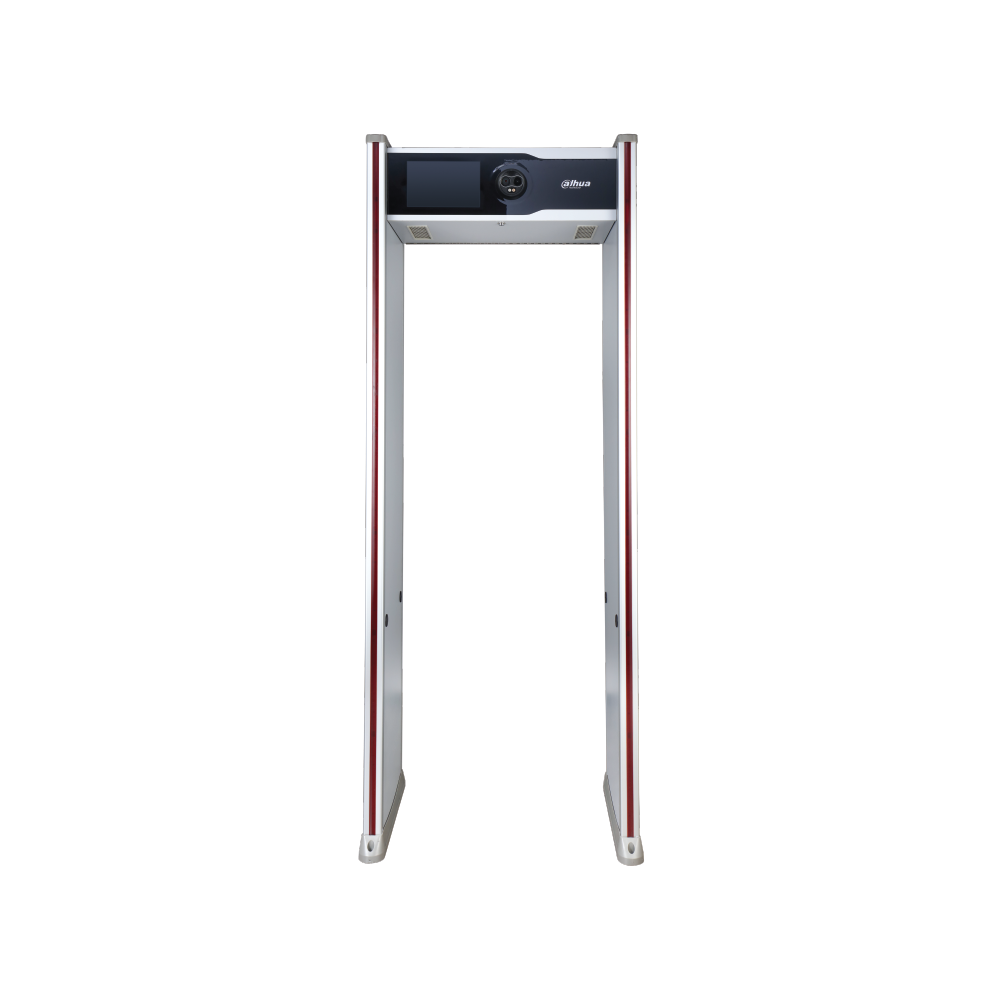

D718R-T – Walk-through Metal Detector

System

Display

2*10.1-inch LCD screen

People Counting Display

Displays pass number, metal alarms, temperature alarms, video, images of personnel detection and comparison, history data and body temperature.

Metal Detection

Detection Sensitivity

NILECJ-STD-0601.00 L1-L4

Precise Positioning

6/12/18 overlapping detection zones, bilateral transmission and receipt of detection signals; 4-panel indicator lights.

Zone Indication

6/12/18 Independent zones selectable, and multiple metal items can be located simultaneously.

IR Sensor

Supports the switching of multiple start-stop modes for two-pair of IR sensor. Infrared sensor can reduce false alarms; automatic alarm statistics and pass/return statistics

Adjustable Sensitivity

0-9,999 levels of sensitivity can be set for each zone. The higher the level, the higher the sensitivity.

Operating Frequency

Supports 7,000-level adjustable frequencies and auto frequency search.

POST(Power On Self-Test)

Power on self-test.

Alarm Tone

9 independent alarm tones selectable, and temperature alarm can be set independently.

Alarm Volume

9 independent alarm volumes selectable, and mute mode can be set.

Personnel Detection

Personnel Detection

12 persons/second (1,080P) for one channel, and 12 persons/second (1,080P) for two channels. Supports personnel identification without mask.

Personnel Attribute

Supports extraction of gender, age, glasses, mask and other attributes.

Intelligent Playback (Personnel Picture)

Query conditions: By pass channel, time and personnel attributes. Function: Supports the linkage of search results and playback of 10 seconds of video before and after the event, and search results export as excel, video and picture.

Personnel Identification

Personnel Database Management

1. Import method: single/batch import personnel pictures through the browser 2. Input personnel information: name, gender, birthday, province, city, certificate type, and certificate number. 3. Database capacity: Up to 10 personnel databases with 300,000 pictures can be created, and the total capacity is 30 G. 4. Image requirements: jpg format, maximum 256 KB for a single image, pixel is greater than 100×100.

Personnel Comparison

1. Comparison mode: Post-FD + Post-FR. 2. Intelligent performance: 8 pictures/second 3. Post intelligent function configuration: ordinary/stranger mode. It supports the deployment of multiple personnel databases, alarm warning, linkage video, capture, IPC external alarm output, voice prompt, buzzer, log recording and mail. 4. Post intelligent performance: 1-channel personnel comparison (1,080p video stream)

VIP Mode

Identifies the VIPs through personnel identification. Metal alarm function can be closed when the VIP passes and resumes after passing.

Behavior Analysis

General Behavior Analysis

Supports 1-channel general behavior analysis function, and can judge tripwire intrusion and area intrusion.

Video and Audio

Network Video Input

Up to 4-channel cameras

Resolution

3200W/2100W/1200W/800W/600W/500W/400W/300W/1080P/960p/720P/D1/CIF/QCIF

Video Bit Rate

32 kbps to 6,144 kbps

Audio Sampling Rate

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Compression

Smart H.265; H.265; Smart H.264; H.264

Audio Compression

G.711a; G.711u; PCM; G.726

Stream Type

Video Stream and composite stream

Video Output

External 1 HDMI output, resolution: 1920×1080/1280×1024/1280×720

Window Split

1/4 window

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; manual; scheduled

Multi-channel Playback

Up to 4 channels

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (personnel and motion detection)

Alarm

Metal Alarm

Supports the display of pass number, metal alarms and metal alarm zone, data query, as well as linkage video query and export.

Temperature Alarm

The sound and light alarm will be triggered and displayed clearly on the screen when the temperature reaches the threshold. The temperature alarm can be linked with personnel and metal alarm information; It also supports data query and export.

Mask Alarm

The sound and light alarm will be triggered if the passing person doesn't wear a mask.

General Alarm

Motion detection; privacy masking; local alarm

Anomaly Alarm

Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception

Intelligent Alarm

Supports personnel detection and identification.

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

Network

Network Protocol

HTTP; HTTPS; TCP/IP; Ipv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P; IPv6

Interoperability

ONVIF; SDK

Browser

IE11, google (Configuration only)

Certifications

Certifications

GB 15210-2018 IEC 60068-2-1 IEC 60068-2-2 CE-LVD: Low Voltage Directive 2014/35/EU CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU CE-RED: Radio Equipment Directive 2014/53/EU FCC: 47 CFR FCC Part 18, Subpart B

Safety

ICNIRP 2010 Guidelines ICNIRP 1998 Guidelines EC directive 2013/35/EU EC recommendation 1999/519/EC IEEE C95.1:2005

Port and Indicator

Power Button

Power Button Power switch on both door panels, and metal detection power switch on the front panel

Indicator Light

One green indicator

Environmental Interference

Monitors and displays real-time signal strength of environmental interferences

HDD Interface

2*SATA ports, Max 8T, an additional HDD is required.

Alarm Input/Output Port

2 alarm inputs, 2 alarm outputs, internal port

RS-485 Port

1 internal port

USB Port

2*USB 3.0, internal port

HDMI

1

Network Port

Detector underside network port RJ45 port, 10/100 Mbps, 1 for each side.

POE Port

4 internal ports, 3 available

General

Tunnel Dimensions

1,990 mm × 720 mm × 580 mm (78.35" × 28.35" × 22.83" ) (H × W × D)

Product Dimensions

2,261 mm × 840 mm × 580 mm (89.02" × 33.07" × 22.83" ) (H × W × D)

Packaging Dimensions

Packing Box (Detector panel): 2,310 mm × 650 mm × 260 mm (90.94" × 25.59" × 10.24" ) (H × W × D) Packing Box (Host box): 863 mm × 554 mm × 439 mm (33.98" × 21.81" × 17.28" ) (H × W × D)

Net Weight

ISC-D718R-T: 18 kg (39.68 lb); ISC-D718R-D: 39 kg (85.98 lb)

Gross Weight

ISC-D718R-T: 25 kg (55.12lb); ISC-D718R-D: 45 kg (99.21 lb)

Power Supply

100–240 VAC; 50-60 Hz

Max. Power Consumption

50 W

Standby Power Consumption

34 W

Operating Temperature

–20 °C to 60 °C (–4 °F to 140 °F)

Working Humidity

<95% (RH), non-condensing

Storage Temperature

–20 °C to 65 °C (–4 °F to 149 °F)

Storage Humidity

<95% (RH), non-condensing

Installation

Ground mount

Camera Technical Specifications

Thermal

Detector Type

Vanadium Oxide Uncooled FPA

Max. Resolution

256 x 192

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Thermal Sensitivity (NETD)

≤50mK@f/1.0

Focal Length

3.5 mm

Field of View

H: 50.6°, V: 37.8°

Thermal Focus Mode

Athermalize

Close Focus Distance

0.5 m (1.64 ft)

Aperture

F1.0

Image Enhancement

Digital Detail Enhancement (DDE)

Digital Zoom

16 ×

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

Temperature Monitoring Range

30 °C to 45 °C (86 °F to 113 °F)

Temperature Monitoring Error

±0.5 °C

Body Temperature Monitoring

Yes

Visible

Image Sensor

1/2.7'' CMOS

Max. Resolution

2,336 × 1,752

Pixel

4 MP

Horizontal Resolution

≥1,600 TVL

Min. Illumination

Color: 0.05 lux Black & white: 0.005lux 0Lux (IR on)

AGC

Auto; manual

Noise Reduction

2D NR; 3D NR

S/N Ratio

>55 dB

White Balance

Auto/Manual/Indoor/Outdoor/Tracking/Sodium lamp/Natural/Street lamp

Defog Function

Electronic Defog

Electronic Shutter

1 s-1/30,000 s (auto/manual adjustment)

BLC

Yes

WDR

DWDR

HLC

Yes

Day/Night

Auto (ICR); Color and B/W

IRIS Control

Auto; manual

Exposure Compensation

Yes

Focus Control

Manual

Focal Length

4 mm

Field of View

H: 71.2° V: 52° D: 92.6°

Close Focus Distance

1.0 m (3.28 ft)

Aperture

F1.6

Illuminator Type

IR

IR Illuminator On/Off Control

Auto; manual

Max illumination Distance

30 m (98.43 ft) (IR)

Illuminator Angle

100⁰/lamp
