| Input | |
| Video Input | 5-ch |
| Max Resolution | 6MP |
| Two-way Audio Input | N/A |
| Bandwidth | Income 80Mbps; Outcome 80Mbps |
| Internet Protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, PPPoE, NTP, UPnP, SMTP, IGMP, Multicast |
| Output | |
| HDMI/VGA Output |
HDMI: 1-ch, 1920Γ1080, 1280Γ720, 800Γ600, 1024Γ768, 1366Γ768, 1440Γ900, 1280Γ800 VGA:1-ch, 1920Γ1080, 1280Γ720, 800Γ600, 1024Γ768 |
| Screen Split | 1/3/4/6 |
| Audio Output | N/A |
| Decoding | |
| Decoding Format | S+265/H.265/H.264 |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Preview Capability | 1Γ6MP, 1Γ5MP, 1Γ4MP, 2Γ3MP, 3Γ1080P, 5Γ720P, 5Γ4CIF |
| Synchronous Playback | 1Γ6MP, 1Γ5MP, 1Γ4MP, 2Γ3MP, 3Γ1080P, 5Γ720P |
| Records Encryption | Yes |
| Hard Disk | |
| SATA | 1 SATA interface for 1 HDD |
| Capacity | Up to 10TB for each HDD |
| eSATA Interface | N/A |
| Array Type | N/A |
| External Interface | |
| Network Interface | 1xRJ45 self-adaptive 10/100 Mbps network interface |
| USB Interface | 2ΓUSB 2.0 |
| Serial Interface | N/A |
| Alarm In/Out | N/A |
| Reliablity | |
| N+M Hot Standby | N/A |
| ANR | N/A |
| Face Recognition | |
| Base Libraries | 32 |
| Face Pictures | 10,000 |
| Video Stream for Recognition | 1 |
| Picture Stream for Recognition | 5 |
| Face Picture Search | Yes |
| General | |
| Web Version | Web6 |
| Language | English, Simple Chinese |
| Operating Conditions | -10βο½55β, 10%~90% RH |
| Power Supply | DC12V 3.33A |
| Consumption (without HDD) | β€10W (without HDD) |
| Chassis | 1U |
| Dimensions | 45.1Γ255Γ231 mm (1.78Γ10.04Γ9.09 inch) |
| Weight (without HDD) | 1.55Kg (3.42lb) |
| Certification | CE, FCC |

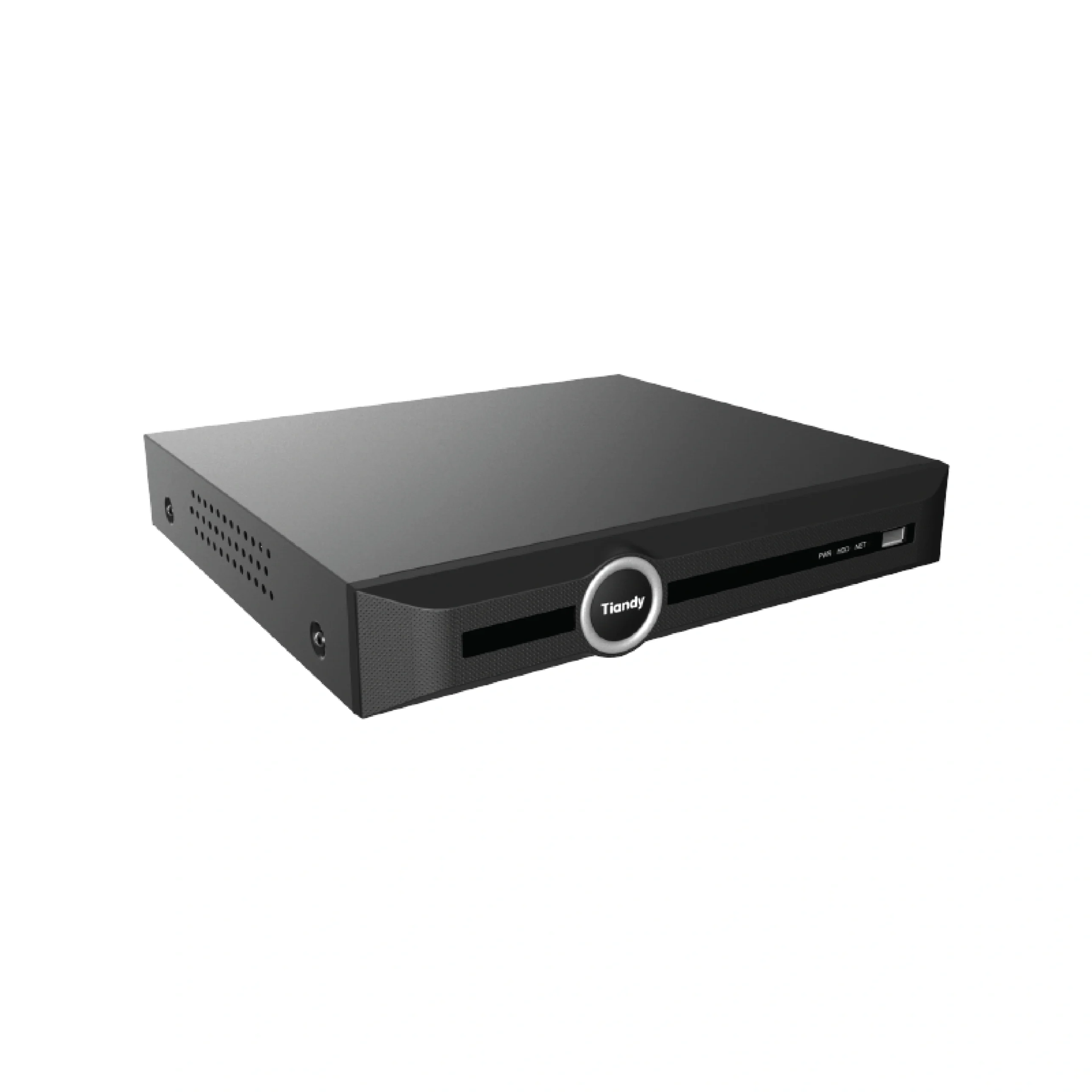

TC-R3105 Face Recognition NVR
Call for Price
HD Input
- S+265/H.265/H.264 video formats
- Connectable to the third-party network cameras
- Up to 5-channel input
- Support live view, storage, and playback of the connected camera at up to 6MP resolution
HD Output
- HDMI and VGA simultaneous output HD Storage
- 1 SATA interface, up to 10TB for 1 HDD
- S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1ΓRJ45 self-adaptive 10/100 Mbps network interface
Various Applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
- 1:N people face recognition.
- Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Smart search for the selected area in the video and smart playback to improve the playback efficiency
- Web6 supports plug-in-free browsing and can preview videos on all browsers
- Support cloud upgrade
- Support voice broadcast, built-in Speaker
Description
TC-R3105 Spec: I/F
5CH 1HDD S+265 Face Recognition NVR
Feature
HD Input
- S+265/H.265/H.264 video formats
- Connectable to the third-party network cameras
- Up to 5-channel input
- Support live view, storage, and playback of the connected camera at up to 6MP resolution
HD Output
- HDMI and VGA simultaneous output HD Storage
- 1 SATA interface, up to 10TB for 1 HDD
- S+265 compression effectively reduces the storage space and costs by up to 75%
HD Transmission
- 1ΓRJ45 self-adaptive 10/100 Mbps network interface
Various Applications
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
- 1:N people face recognition.
- Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Smart search for the selected area in the video and smart playback to improve the playback efficiency
- Web6 supports plug-in-free browsing and can preview videos on all browsers
- Support cloud upgrade
- Support voice broadcast, built-in Speaker
