Description
Features
● Built-in 100v/70v transformer
● In-ceiling type loudspeaker
● 6.5”x1,1”x1 Coaxial speaker
● Rated power output at 10W-20W
● High sensitivity(88±2dB)
● ABS Ivory White engineering plastic
● Fast installation by rotating clip

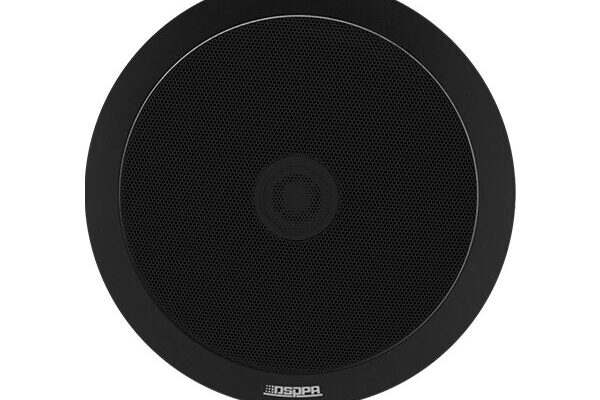

The DSP703B is a ceiling speaker with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 6.5” speaker driver is designed of wide frequency response 60-18,000Hz, the multiple terminals 10W & 20W can be applied to different occasions vary in area sizes and background noises; It is made of high quality engineering plastic, which ensures long-term durability, and will never be out of shape or fading; Spring clip clamp makes the easy and secure installation; Driver surround excellent damping, long life, clear and sonorous sound.
It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
| Model | DSP703B |
| Full-range | 6.5” X 1, 1”X 1 |
| Rated Power | 20W |
| Max Power | 20W |
| Line Input | 70/100V |
| Sensitivity(1M,1W) | 90± 2dB |
| Max SPL(1M) | 101± 2dB |
| Freq. Response | 60-18,000Hz |
| Cutout Size | Ø194 – Ø200mm |
| Dimensions (H x W x L) | 95 x Ø228mm |
| Weight | 1.8kg |
