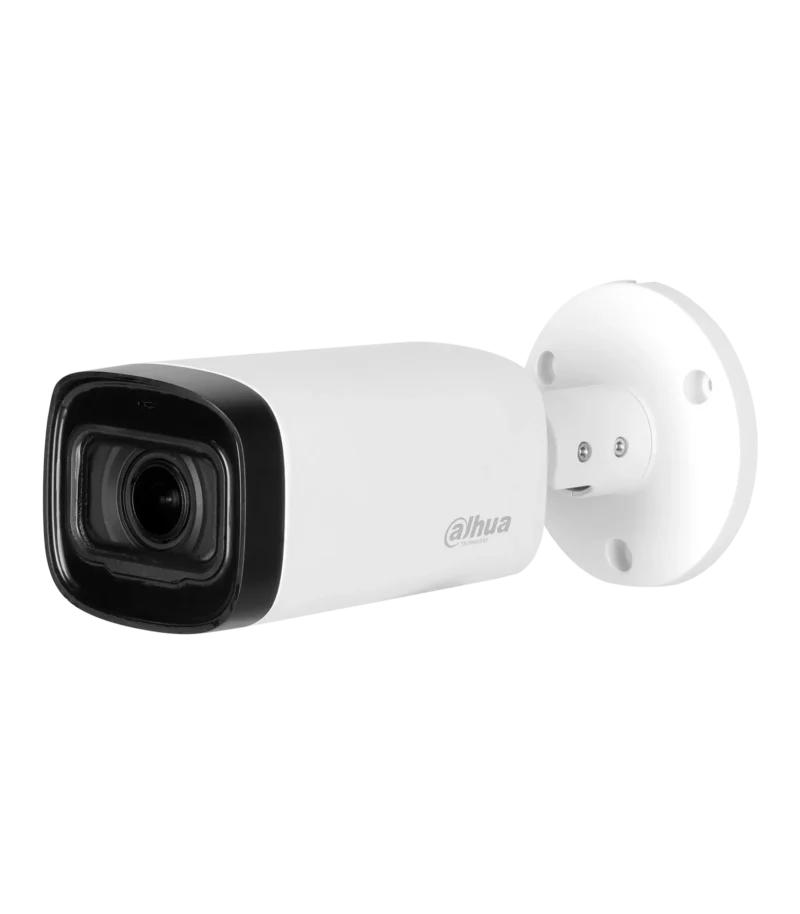

DH-HAC-HFW1801R-Z-A - Dahua 4K Starlight HDCVI Motorized Vari-focal IR Bullet Camera
DH-HAC-HFW1801R-Z-A - Dahua 4K Starlight HDCVI Motorized Vari-focal IR Bullet Camera - Image 2

DH-HAC-HFW1801R-Z-A – Dahua 4K Starlight HDCVI Motorized Vari-focal IR Bullet Camera

Call for Price

>Max. 15 fps@4K.
> 120 dB true WDR, 3D NR.
> Smart IR Illumination.
> 80 m illumination distance.
> Super Adapt.
> Built-in MIC.
> Auto focus, 2.7 mm–13.5 mm motorized lens.
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.

Continue Shopping Categories: , , Tags: , Brand:

Camera

Pixel

8 MP

Image Sensor

4K CMOS

Max. Resolution

3840 (H) × 2160 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 [email protected] (Color, 30 IRE) 0.001 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Lens Mount

φ14

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.5

Field of View

Horizontal: 114°–32° Vertical: 58°–17° Diagonal: 138°–36°

Iris Control

Fixed

Close Focus Distance

0.8m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

85.3 m (279.86 ft)

34.1 m (111.88 ft)

17.1 m

(56.10 ft)

8.5 m

(27.89 ft)

T

280.0 m (918.64 ft)

112.0 m (367.45 ft)

56.0 m (183.73 ft)

28.0 m

(91.87 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30 fps TVI: PAL: 4K@15 fps NTSC: 4K@15 fps AHD: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H NTSC: 960H

Resolution

4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440); 1080p (1920 x 1080); 960H (960 x 576/960 x 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; WDR; HLC-Pro

WDR

120 dB

White Balance

Auto;Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

Yes

Illumination Mode

Smart IR

Defog

Electronic defog

Digital Zoom

4×

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC (-A)

Power

Power Supply

12 VDC ± 30% (It is recommended to use a

power adapter to supply the power for one camera)

Power Consumption

Max 10.6W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

90.4 mm × 90.1mm ×209.6 mm (3.56" × 3.55" × 8.25")

Net Weight

0.55 kg (1.21 lb)

Gross Weight

0.72 kg (1.59 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
