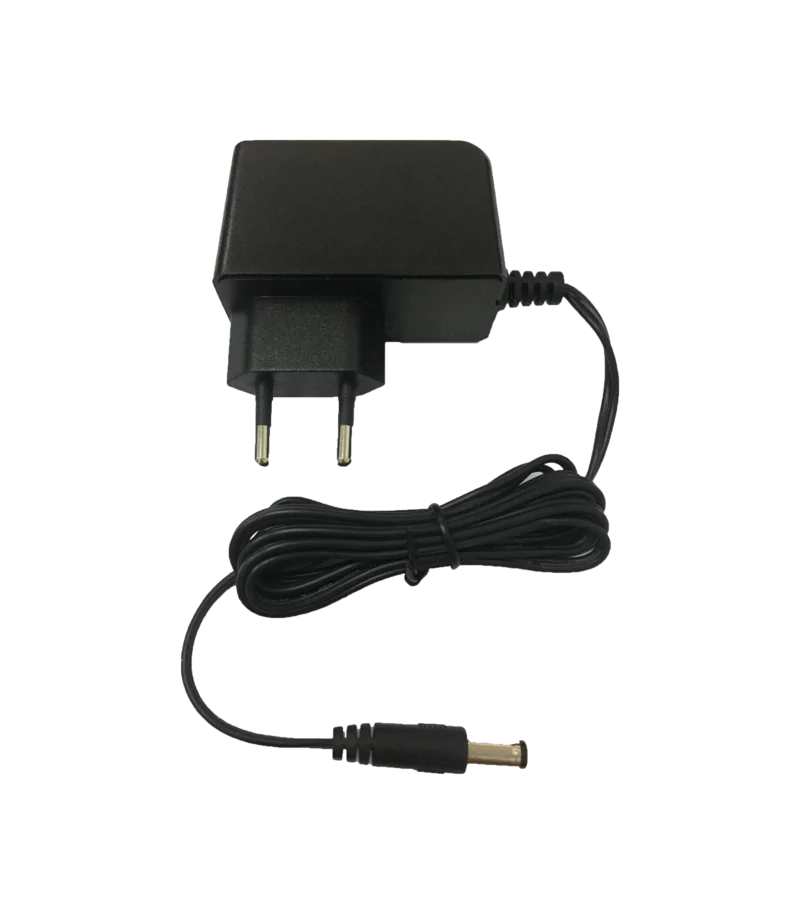

DH-PFM321 Series - Dahua DC12V 1A Power Adapter

DH-PFM321 Series – Dahua DC12V 1A Power Adapter

Call for Price

Categories: , , Tags: , Brand:

> Easy installation;
> 90~264Vac wide input voltage range, meet the requirements in different parts for electric network fluctuation;
> High quality and reliability: pass 3 months high temperature aging test;
> 4KV outdoor lightning protection grade.

>Β Fully Meets ERP.COMMISSION REGULATION (EU)2019/1782 Requirement

Electrical Specification
Input Voltage Range 90–264 VAC
Input Plug 2-pin Euro plug 3-pin British plug 2-pin North American plug
Efficiency 80.15% (V) 80.15% (V) 82.96% (DOE VI)
Output Voltage 12 VDC (+7%, –3%)
Output Current 1 A
Max. Output Power 12 W
No Load Power Consumption < 0.3 W
Protection/Environmental
Protection Surge protection, over temperature protection, over current, voltage load protection ESD: IEC61000-4-2 Β±6 kV Contact; Β±8 kV Air Surge: EN61000-4-5 Combination Wave: Common Mode Β±4 KV (12 ohms); Differential Mode Β±2 kV (2 ohms)
Working Temperature –10 Β°C to +55 Β°C (–14 Β°F to +131Β°F)
Working Humidity < 90% (RH)
Physical Properties
Weight 0.084 kg (0.19 lb) 0.09 kg (0.20 lb) 0.091 kg (0.20 lb)
Dimensions 76.5 mm Γ— 73.6 mm Γ— 28.5 mm (3.01" Γ— 2.9" Γ— 1.12") 71.9 mm Γ— 73.6 mm Γ— 49.1 mm (2.83" Γ— 2.9" Γ— 1.93") 83.4 mm Γ— 63.2 mm Γ— 29.3 mm (3.28" Γ— 2.49" Γ— 1.15")
Installation Wall-mount
Color Black
Input Plug 2-pin Euro plug 3-pin British plug 2-pin North American plug
Outgoing Cord DC wire: 1,500 mm (59.06"/4.92 ft)
DC Plug Ξ¦5.5 mm Γ— Ξ¦2.1 mm Γ— 10 mm (Ξ¦0.22" Γ— Ξ¦0.08" Γ— 0.39")
Certifications
Certifications PFM321-EN/PFM321-BS: CE LVD(EN62368-1:2014) CE EMC(EN55032:2015,EN55035: 2017,EN50024:2010+A1:2015,EN61000-3-2:2014,EN61000-3-3:2013) PFM321-US: UL-VI(UL60950-1) FCC(FCC Part 15 Subpart B) DOE(VI)

Description

PFM321 Series

DC12V 1A Power Adapter

> Easy installation;
> 90~264Vac wide input voltage range, meet the requirements in different parts for electric network fluctuation;
> High quality and reliability: pass 3 months high temperature aging test;
> 4KV outdoor lightning protection grade.
>Β Fully Meets ERP.COMMISSION REGULATION (EU)2019/1782 Requirement
