Dahua/2MP/30x/Starlight IR PTZ Network Camera/MOI Approved

Call for Price

Description

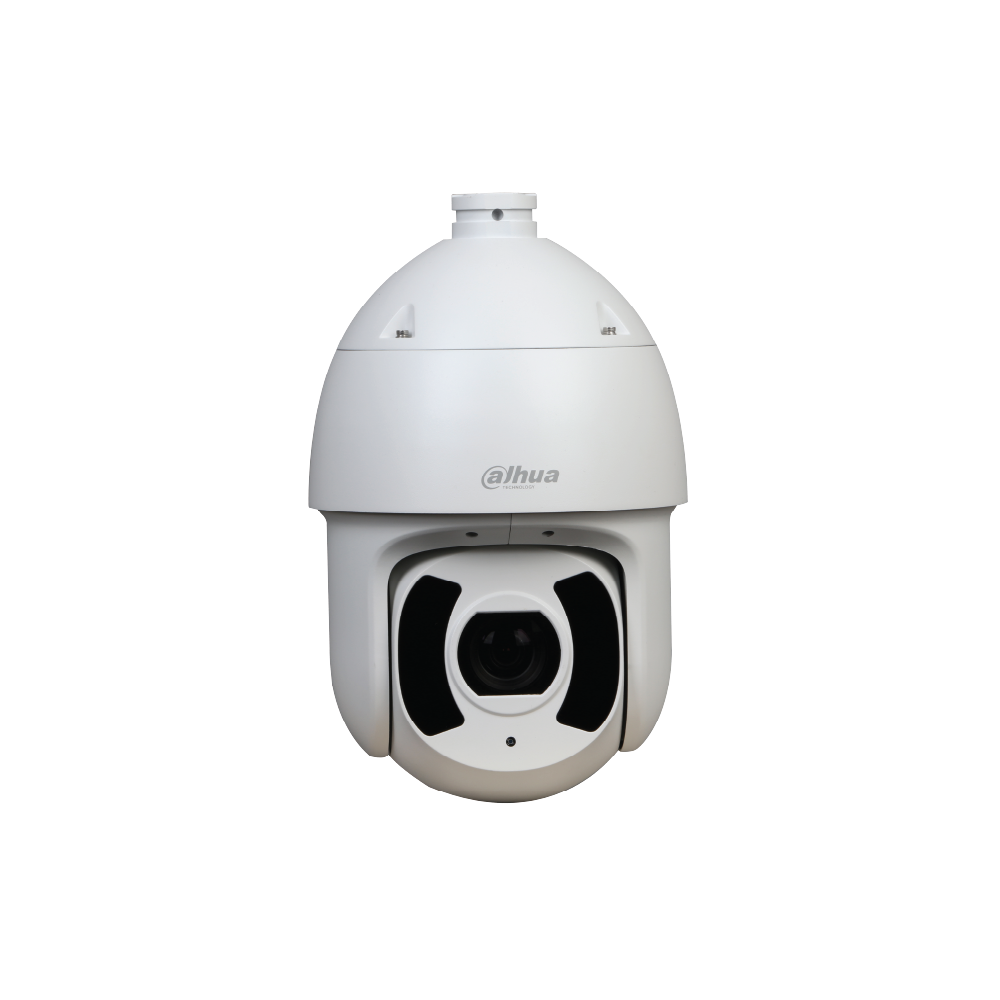

2MP 30x Starlight IR PTZ Network Camera Dahua DH-SD6CE230U-HNI.

> 1/2.8” 2Megapixel STARVIS™ CMOS.

> Powerful 30x optical zoom.

> Starlight technology.

> Max. 50/60fps@1080P.

> Auto-tracking and IVS.

> IR distance up to 200m.

> Support PoE+.

> IP67, IK10.

Camera
Image Sensor1/2.8” STARVIS™ CMOS
Effective Pixels1920(H) x 1080(V), 2 Megapixels
RAM/ROM1024M/128M
Scanning SystemProgressive
Electronic Shutter Speed1/1s~1/30,000s
Minimum IlluminationColor: [email protected]; B/W: [email protected]; [email protected] (IR on)
IR DistanceDistance up to 200m (656ft)
IR On/Off ControlAuto/Manual
IR LEDs6
Lens
Focal Length4.5mm~135mm
Max. ApertureF1.6 ~ F4.4
Angle of ViewH: 67.8° ~ 2.4°
Optical Zoom30x
Focus ControlAuto/Manual
Close Focus Distance100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DetectObserveRecognizeIdentify
1862m(6109ft)744m(2441ft)372m(1220ft)186m(610ft)
PTZ
Pan/Tilt RangePan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
Manual Control SpeedPan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset SpeedPan: 300° /s; Tilt: 200° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)
Intelligence
Event TriggerMotion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Auto TrackingSupport
IVSTripwire, Intrusion, Abandoned/Missing
Advanced Intelligent FunctionsFace Detection, Heat Map
Video
CompressionH.265+/H.265/H.264+/H.264/MJPEG(Sub Stream)
Streaming Capability3 Streams
Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame RateMain stream1080P/1.3M/ 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH.265/H.264: 448K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
Backlight CompensationBLC / HLC / WDR (120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Noise ReductionUltra DNR (2D/3D)
Motion DetectionSupport
Region of InterestSupport
Electronic Image Stabilization (EIS)Support
DefogSupport
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 areas
Audio
CompressionG.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Network
EthernetRJ-45 (10Base-T/100Base-TX)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,

ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,

DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

InteroperabilityONVIF Profile S&G, API
Streaming MethodUnicast / Multicast
Max. User Access20 users
Edge StorageNAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, DMSS
Smart PhoneIOS, Android
Certifications
CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB,ANSI C63.4- 2014

UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Interface
Video Interface1 port(BNC, 1.0V[p-p], 75Ω)
RS4851
Audio I/O1/1
Alarm I/O7/2
Electrical
Power SupplyDC24V/2.5A(±25%), PoE+(802.3at)
Power Consumption17W, 25W(IR On, Heater On)
Environmental
Operating Conditions-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceIK10
Construction
CasingMetal
Dimensionsφ209×337.4mm
Net Weight5.8kg(12.79lb)
Gross Weight9.1kg(20.06lb)
