Dahua/Access ANPR Camera/DHI-ITC215-PW6M-LZF-B

Call for Price

Description

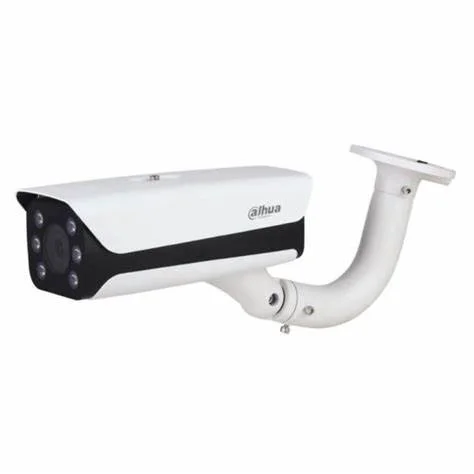

Access ANPR Camera Dahua – ITC215-PW6M-LZF-B.
2MP Access ANPR Camera.

> Adopts high-performance CMOS image sensor and processor for in-depth extraction and analysis of vehicle information 24/7.

> Embraces deep learning algorithm for accurate recognition of vehicles without license plate, and vehicle model, vehicle logo, vehicle series, vehicle color, and more.

> Built-in LED illuminator for simplified installation

> Motorized vari-focal lens, easy for installation and commissioning.

> Integrated design with low power consumption, IP67,IK10 protection grade.
Basic
Illuminator Number6 white light illuminators, brightness adjustable
Image Sensor1/2.8” CMOS
Image Resolution1920 × 1080 (OSD black strip excluded)
Video ResolutionMain stream: 1080P (1920 × 1080)/720P (1280 × 720)
Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)
Video Frame RatePAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)
NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)
Bit RateH.264B: 32Kbps–32768Kbps
H.264M: 32Kbps–32768Kbps
H.264H: 32Kbps–32768Kbps
H.265: 32Kbps–32768Kbps
MJPEG: 512Kbps–65536Kbps
Video CompressionH.264B/H.264M/H.264H/H.265/MJPEG
Picture Encoding FormatJPEG
Noise Reduction3DNR
White BalanceFull auto, auto color temperature range, customized color temperature
Electronic Shutter Speed1/50–1/10000, auto or manual
WDR120 db
Edge EnhancementYes
Exposure ModeFull auto, customized auto, customized
Iris ControlAuto iris (W: 1.6–T: 3.3)
Performance
Trigger ModeVideo detection; I/O coil
ShutterSingle shutter
Storage1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128G
Image Tampering PreventionYes. Video/picture can be checked through watermark and verification
Field of ViewHorizontal: 108.1° (W)–30.3° (T);

Vertical: 56.3° (W)–17.1° (T);

Diagonal: 130.9° (W)–34.8° (T)

Illumination Distance12 m (39.37 ft)
Capture Range3 m–6 m (9.84 ft–19.69 ft)
Detected Lane Width3 m –4 m (9.84 ft–13.12 ft)
Min Ambient Illuminance0.002 Lux. Illuminator is designed with the camera for illumination
Max Speed that the Camera Detects60 km/h
Alarm EventAlarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal access
SecurityAuthorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
OSD OverlaySupports overlay of time, address, plate, vehicle (color, type, accuracy), vehicle posture, counterfeit, checkpoint direction, trigger source, and custom
Automatic Network Replenishment (ANR)Yes. Transfer through platform/FTP
Auto RegistrationYes
Intelligence
Vehicle DetectionVehicle capture rate ≥99%
Vehicle RecognitionSupports recognizing vehicle type, vehicle logo, vehicle series, vehicle color,
license plate, features of driver and front-seat passenger, and vehicle without
plate. Vehicle recognition rate ≥95%
Video MetadataYes
Intelligent Track FrameIntelligent frame display. Supports displaying vehicle plate and vehicle path
Port
Lens MountΦ14
Analog Output1
Network1 × 100/1000 M Ethernet port (RJ-45)
RS-4852
RS-2321
Alarm Input3, optocoupler input (on-off input)
Alarm Output3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers
Audio Input1-channel RCA port
Audio Output1-channel RCA port
General
Power Supply12V DC, 24V AC, PoE+
Power Consumption<20W
Operating Temperature−30°C to +65°C (−22°F to +149 °F)
Operating Humidity10%RH–90%RH (no condensation)
CasingMetal and plastic
Protection GradeIP67, IK10
Dimensions486.7 mm × 124.3 mm × 185.5 mm (19.16” × 4.89” × 7.30”) (L × W × H)
Net Weight1.9 kg (4.19 lb)
Gross Weight3.3 kg (7.28 lb)
InstallationBent pole bracket (included)
Lens3.2 mm –10.5 mm
Certification
CE, FCCYes
RoHSYes
