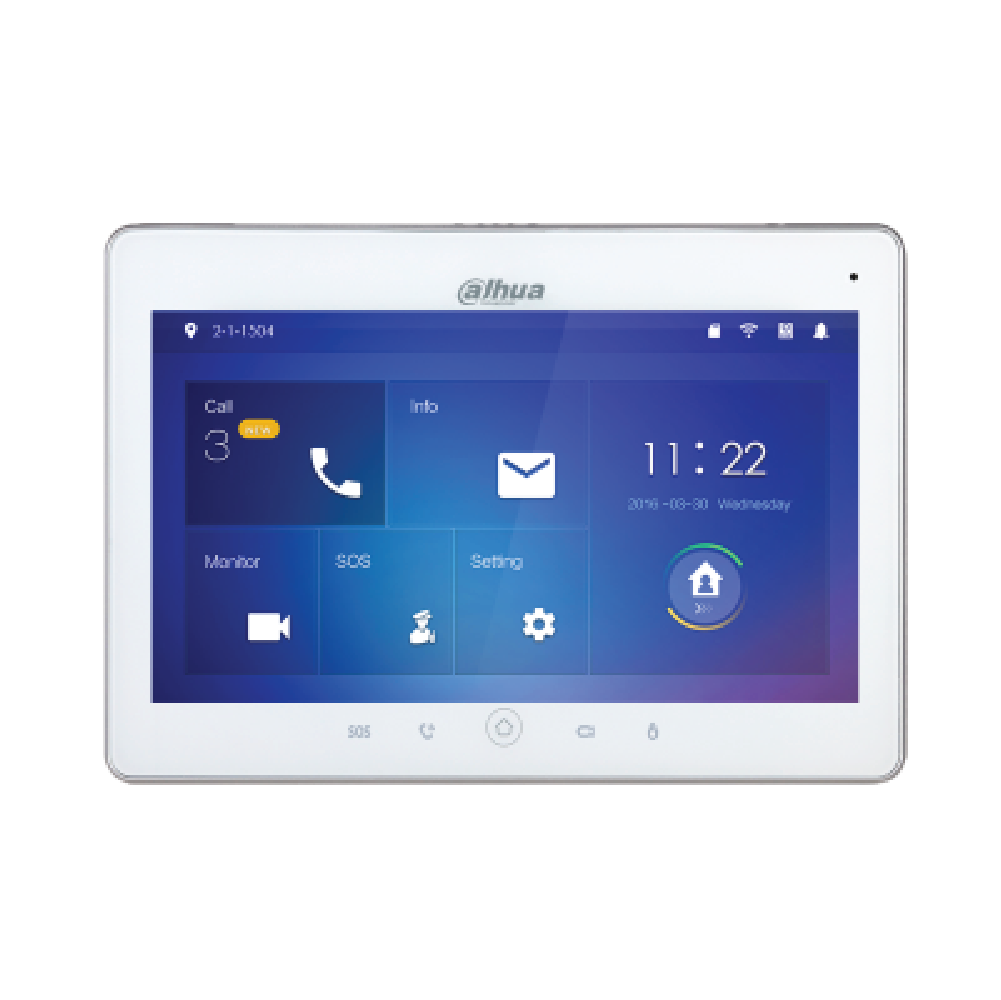

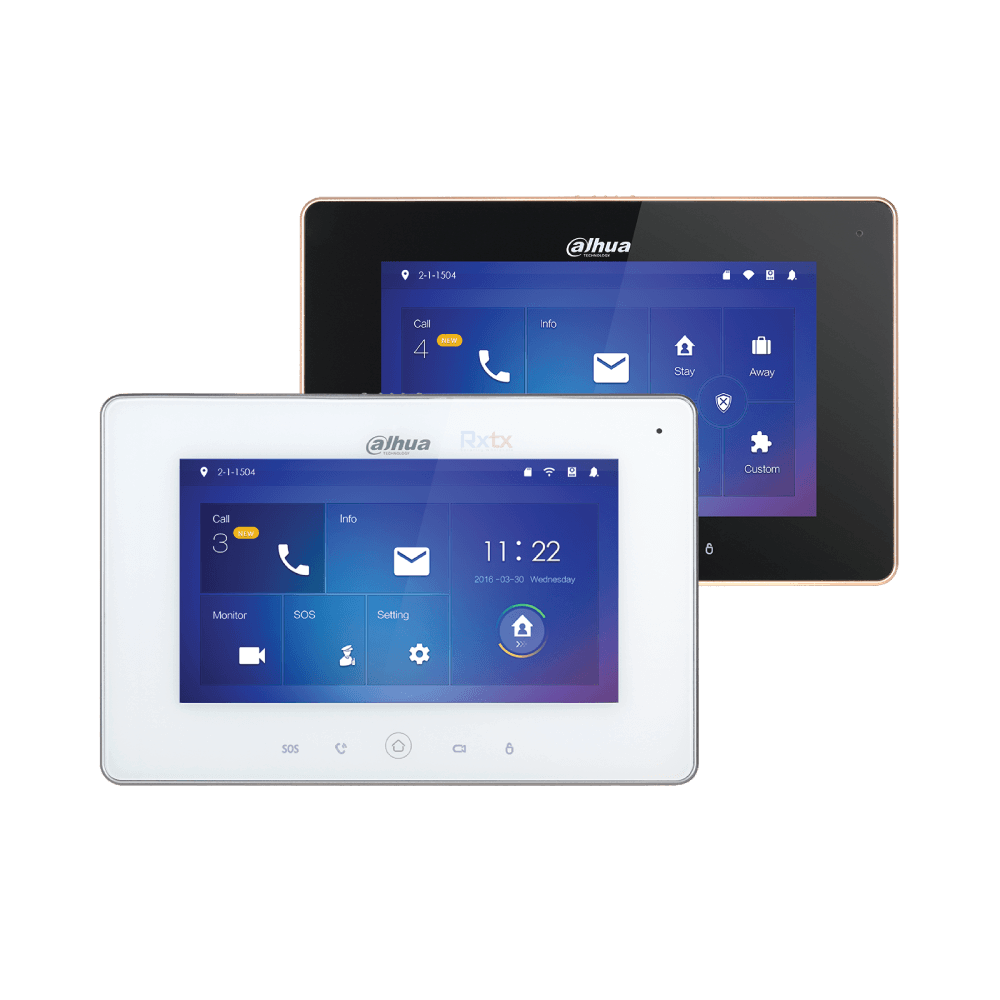

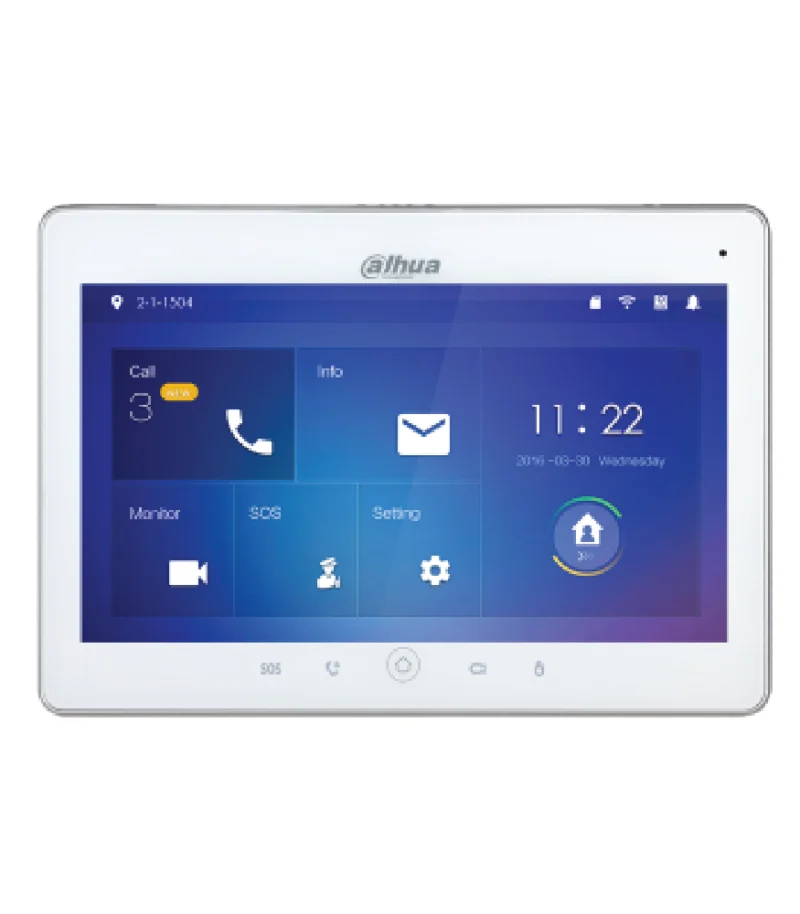

Dahua / Wi-Fi Indoor Monitor 7″ Touch Screen for Intercom

Call for Price

Description

Wi-Fi Indoor Monitor 7″ Touch Screen for Intercom Dahua DHI-VTH5221DW-S2.

WiFi Wireless 7″ Touchscreen Intercom Indoor Monitor.

7″ TFT Capacitive touch screen, 1024 x 600.

IPC surveillance.

6-channel wired alarm integration, 6ch wireless alarm integration (433MHZ).

Micro SD card optional, max 32GB.

Record & Snapshot (SD card needed).

Technical Specification

  • Model: VTH5221DW-S2

System

  • Main Processor: Embedded Micro Processor
  • Operation System: Embedded LINUX OS

Video

  • Video Compression: H.264

Audio

  • Audio Compression: G.711
  • Audio Input: All-direction Microphone
  • Audio Output: Built-in Loudspeaker
  • Bidirectional Talk: Support Dual-way Bidirectional talk

Display

  • LCD Screen: 7″ 1024 x 600

Operation Mode

  • Input: Touch buttons and capacitive screen

Interface

  • Wired Zones: 6 on-board zones
  • Wireless Zones: 8 wireless zones
  • Alarm Out: 1
  • RS485: 1

Network

  • Wi-Fi: IEEE802.11b/g/n
  • Ethernet: 10M/100Mbps Self-adaptive
  • Network Protocol: TCP/IP

General

  • Memory Slot: Micro SD, Max 32GB
  • Installation: Surface
  • Power: DC 12V, PoE(802.3af)
  • Power Consumption: Work ≤7W
  • Working Temperature: ﹣10°C to +55°C
  • Relative Humidity: 10%RH–90%RH
  • Dimensions: 215.0mm×140.0mm×21.0mm
  • Weight: 0.8kg
