DS-KH6320-WTE1
Hikvision DS-KH6320-WTE1 - KH6 Series/IP-Based/Indoor Station - Image 2

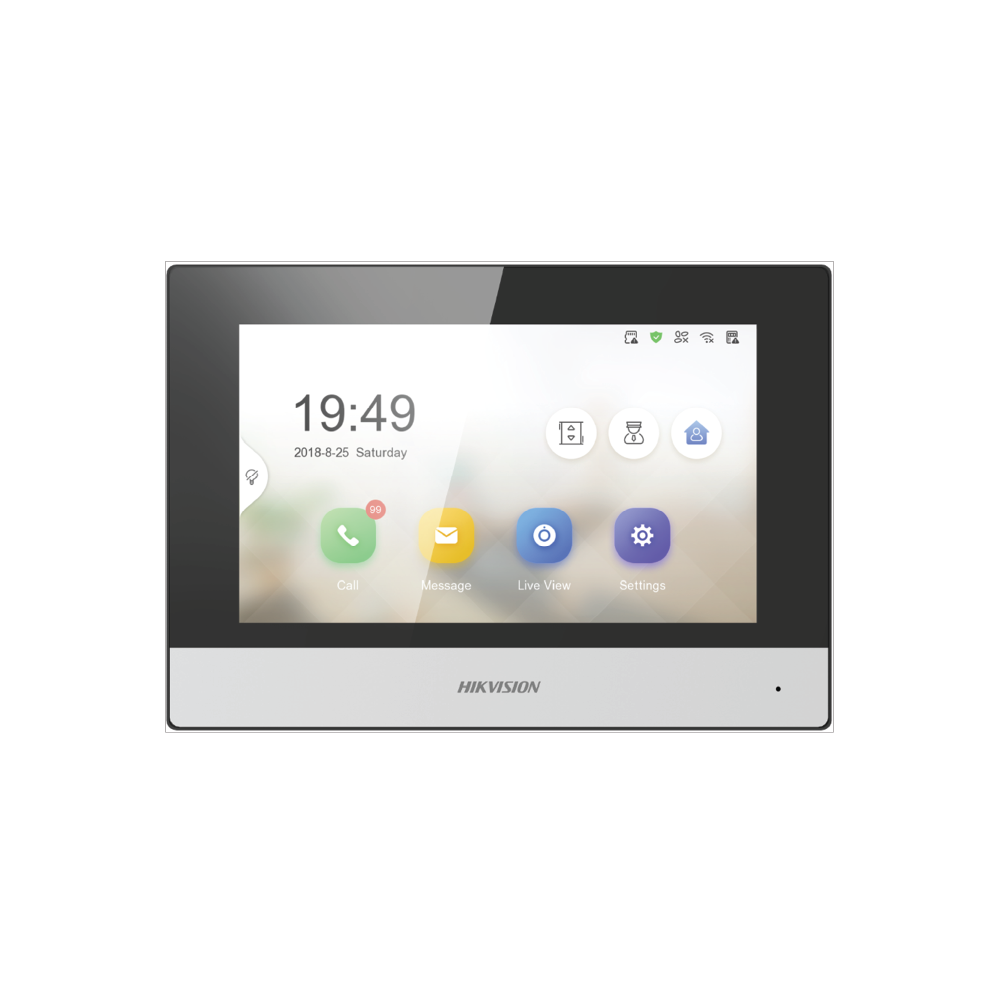

Hikvision DS-KH6320-WTE1 – KH6 Series/IP-Based/Indoor Station

Call for Price

Categories: , , , Tags: , Brand:

7-inch TFT touch screen with 1024 × 600 resolution
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Live view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by linkage with a alarm system and notify the center to handle in time
Elevator access control

Description

KH6 Series IP-Based Indoor Station – Hikvision DS-KH6320-WTE1.

New UI V2.0: User friendly design.

7-inch colorful touch screen with resolution 1024 × 600.

Standard PoE.

Stores messages and capture pictures in the TF card.

Remote unlocking via the client software or the mobile client.

Views live videos of door stations and linked cameras.

  • System Parameters
  • Operating SystemEmbedded Linux operation system
  • ROM32 MB
  • RAM128 MB
  • CPUEmbedded processor
  • Display Parameters
  • Screen Size7-inch colorful TFT screen
  • Operation MethodCapacitive touch screen
  • TypeColorful TFT screen
  • Resolution1024 × 600
  • Video Parameters
  • Lens/
  • Resolution/
  • FOV/
  • WDR/
  • Video Compression StandardDS-KH6320-WTE1
  • Focal Length/
  • Audio Parameters
  • Audio Compression StandardG.711 U
  • Audio InputBuilt-in omnidirectional microphone
  • Audio OutputBuilt-in loudspeaker
  • Audio Compression Bitrate64 Kbps
  • Audio QualityNoise suppression and echo cancellation
  • Volume AdjustmentAdjustable
  • Capacity
  • Event Capacity200
  • Notice Capacity16
  • Linked Indoor Extensions Capacity5
  • Linked Doorphone Capacity8
  • Network Parameters
  • Communication ProtocolTCP/IP, SIP, RTSP
  • Wired Network10/100 Mbps self-adaptive
  • Wi-Fi StandardWi-Fi 802.11 b/g/n
  • Bluetooth Version/
  • 3G/4G Standard/
  • Zigbee/
  • Device Interfaces
  • Alarm Input8-ch alarm inputs
  • Network Interface1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER/
  • RS-4851
  • USB/
  • TF CardMax to 32 G, SD 2.0 or lower version
  • Alarm Output2
  • Power Interface1
  • General
  • Button0
  • InstallationSurface mounting
  • Indicator0

  • With package: 683 g

    Without package: 355 g

  • Protective Level/
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimensions200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
  • Battery/
  • Application EnvironmentIndoor
  • Power Consumption≤ 6 W
  • LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
