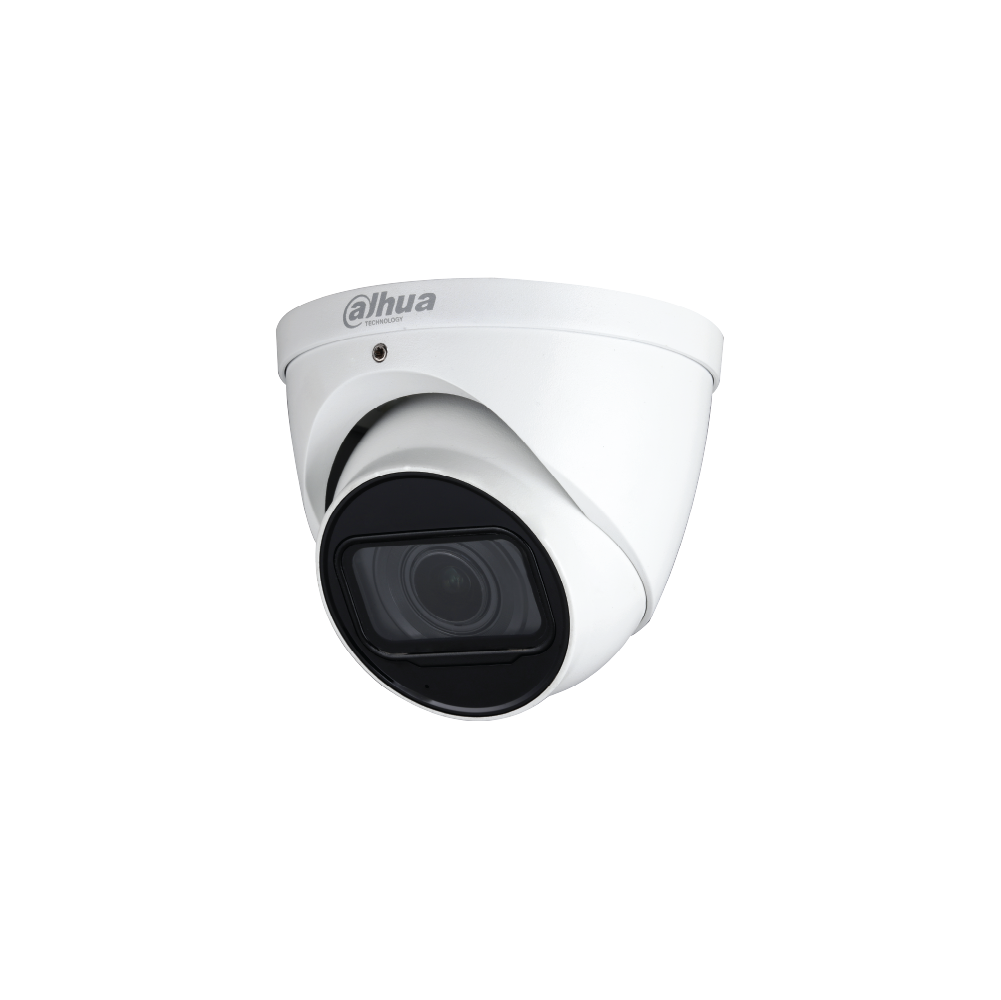

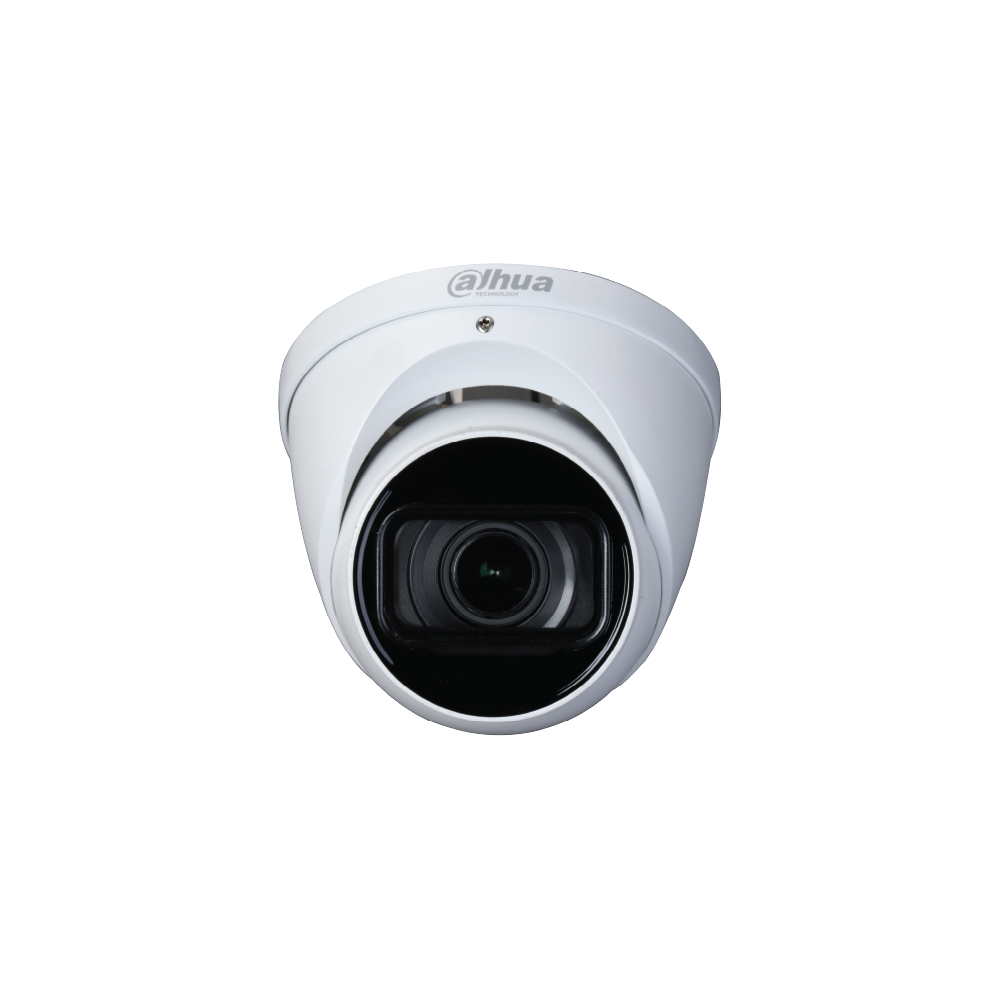

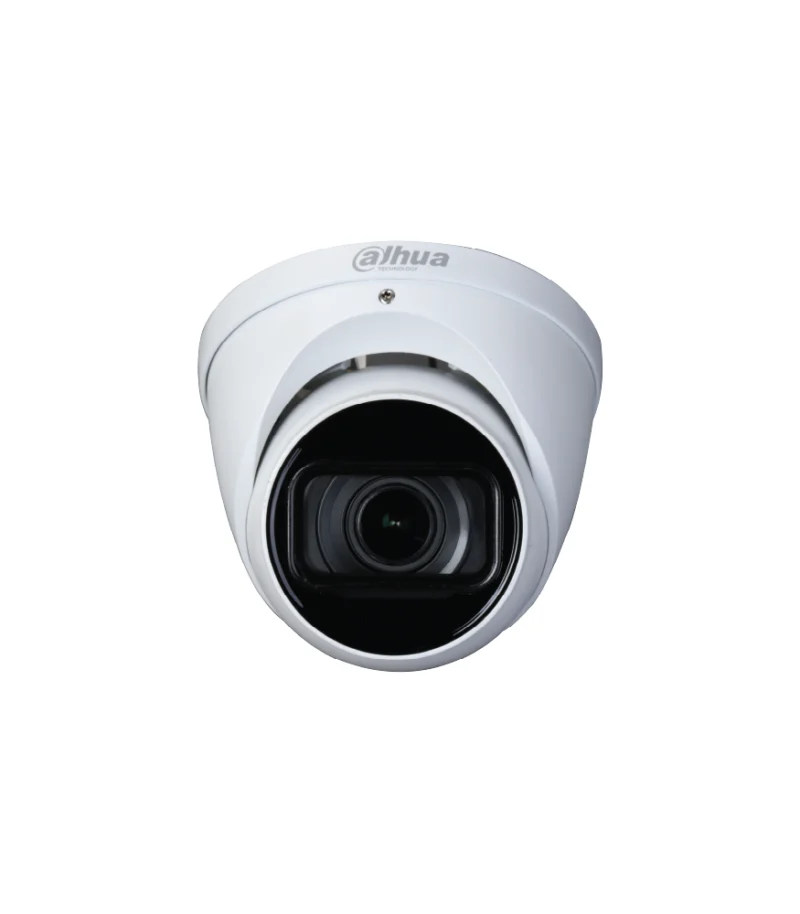

Dahua/4K Starlight/HDCVI/Motorized Vari-focal IR Eyeball Camera

Call for Price

Description

4K Starlight/HDCVI/Motorized Vari-focal IR Eyeball Camera – Dahua DH-HACHDW1801TP-ZA.

  • Outdoor HDCVI Camera.
  • Resolution 8MP (3840×2160).
  • 15fps@4K, 20fps@5MP, 25/30fps@4MP.
  • Multi-format support.
  • Motorized lens 2.7-13.5mm.
  • Built-in microphone.
  • WDR Support(120dB).
  • IR LED 60m (mechanical IR-cut filter).
  • Power supply 12V.
Camera TypeHDCVI
Matrix1/2.7 CMOS
Permission8MP (3840×2160)
Frame rateCVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps CVBS: PAL/NTSC AHD: 4K@15fps; 5M@20fps; 4M@25fps/30fps TVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps
Sensitivity, Lux0.03Lux/F1.8, 0Lux IR on
Video output1 HD-TVI/AHD/CVI/CVBS
Alarm inputs/outputsNo
Audio Inputs/OutputsBuilt-in microphone
Focal length, mm2.7-13.5
Viewing angle°horizontal: 105° – 33°, vertical: 56° – 18°, diagonal: 126° – 38°
IR-illumination, m60
Smart IReat
Day/night functioneat
OSD menueat
Illumination compensationeat
WDR120dB
Signal amplificationeat
Noise Reduction (DNR)2D/3D
White Balanceeat
Private Areaseat
Nutrition12V DC
Consumption7.8W
Operating temperature-30°C ~ +60°C
Degree of protectionIP67
Case materialmetal
Dimensions, mm122×104.8
Weight, g580
