Hikvision/4MP/25×/IR Network Speed Dome

Call for Price

Description

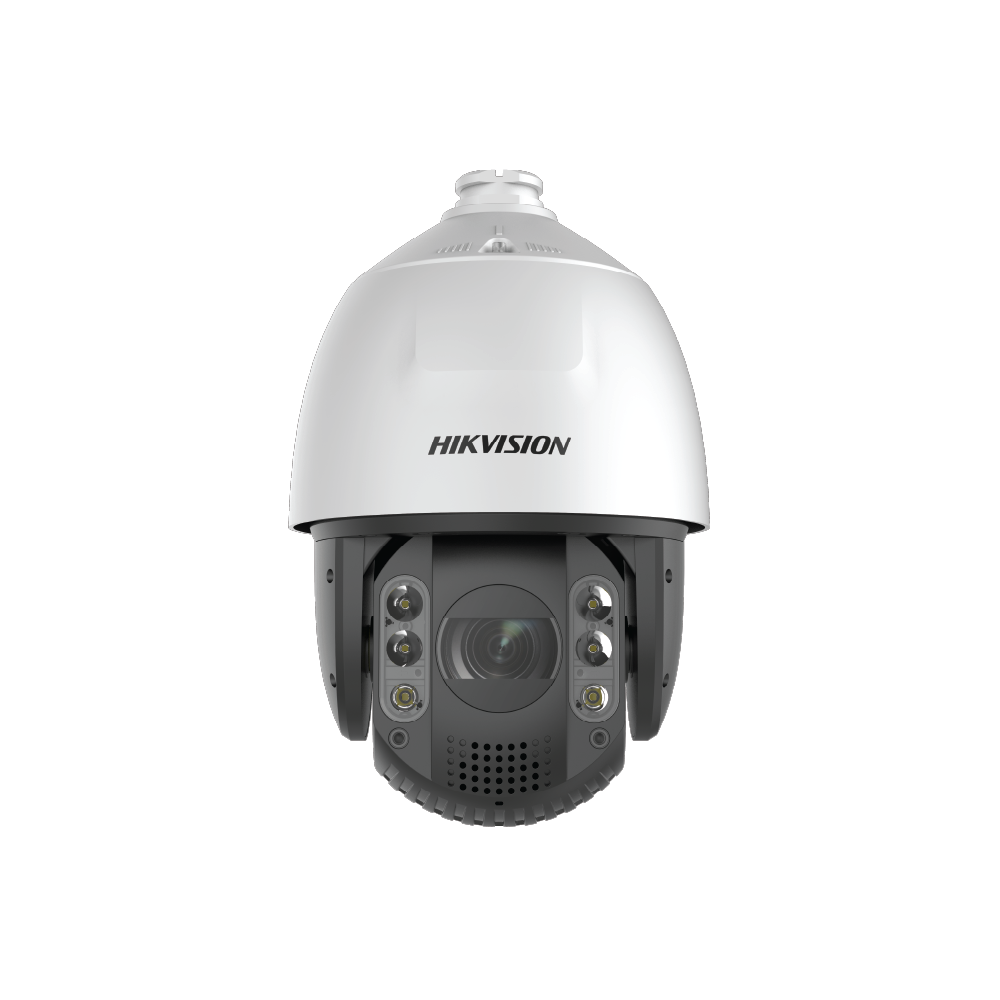

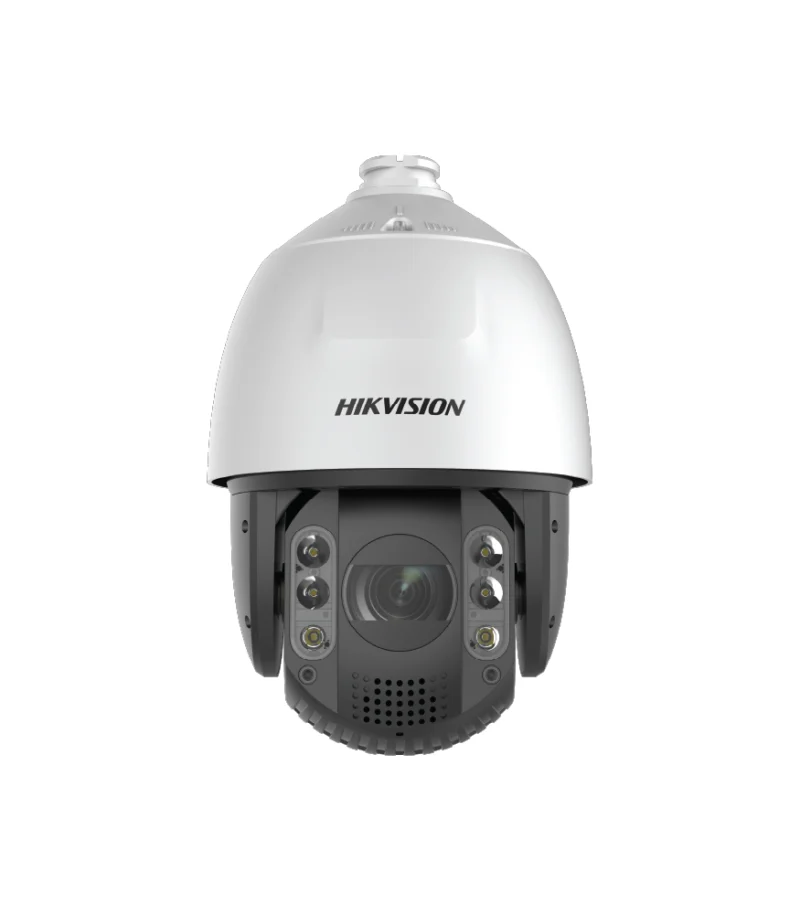

7-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome – Hikvision DS-2DE7A425IW-AEB.

1/2.8″ progressive scan CMOS.

High quality imaging with 4 MP resolution.

Excellent low-light performance with powered-by-DarkFighter technology.

Audio visual alarm: The white flashing light and audible warning can be triggered by certain events.

25× optical zoom and 16× digital zoom provide close up views over expansive areas.

Expansive night view with up to 200 m IR distance.

Focuses on human and vehicle targets classification based on deep learning.

Face capture: Up to 5 faces captured at the same time.

  • Camera
  • Image Sensor1/2.8″ progressive scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/30,000 s
  • Day & NightIR cut filter
  • Zoom25x optical, 16x digital
  • Slow Shutteryes
  • Lens
  • Focal Length4.8 mm to 120 mm
  • FOV

    Horizontal field of view: 55° to 2.4° (wide-tele),

    Vertical field of view: 33° to 1.4° (wide-tele),

    Diagonal field of view: 61.5° to 2.8° (wide-tele)

  • FocusAuto, semi-auto, manual
  • ApertureMax. F1.6
  • Zoom SpeedApprox. 3.6 s
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeIR Distance: up to 100 m
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional PanYes
  • Presets300
  • Preset Freezingyes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, auxiliary output
  • Power-Off Memoryyes
  • Video
  • Main Stream

    50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

    60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

    60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264/MJPEG

  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)8 fixed regions for each stream
  • Audio
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/HostUp to 32 users, 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, HikCentral Pro, Hik-Connect
  • Web BrowserChrome 57.0+, Firefox 52.0+, Safari 11+, IE11
  • Image
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR> 52 dB
  • DefogDigital defog
  • Image StabilizationEIS
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
  • Regional FocusYes
  • Regional ExposureYes
  • Interface
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Audio

    1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;

    1 output (line out), line level, output impedance: 600 Ω

  • Alarm1 input, 1 output
  • ResetYes
  • Event
  • Basic EventMotion detection, video tampering alarm, exception, alarm input and output
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
  • Deep Learning Function
  • Face Capture

    Detects up to 5 faces simultaneously.

    Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • General
  • Power

    12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR;

    PoE (802.3at)

  • DimensionØ 164.5 mm × 290 mm (Ø 6.48″ × 11.42″)
  • WeightApprox. 2 kg (4.41 lb.)
  • MaterialADC12
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • DemistYes
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection
