Description
- IP video intercom kit for villa or house, only one call button

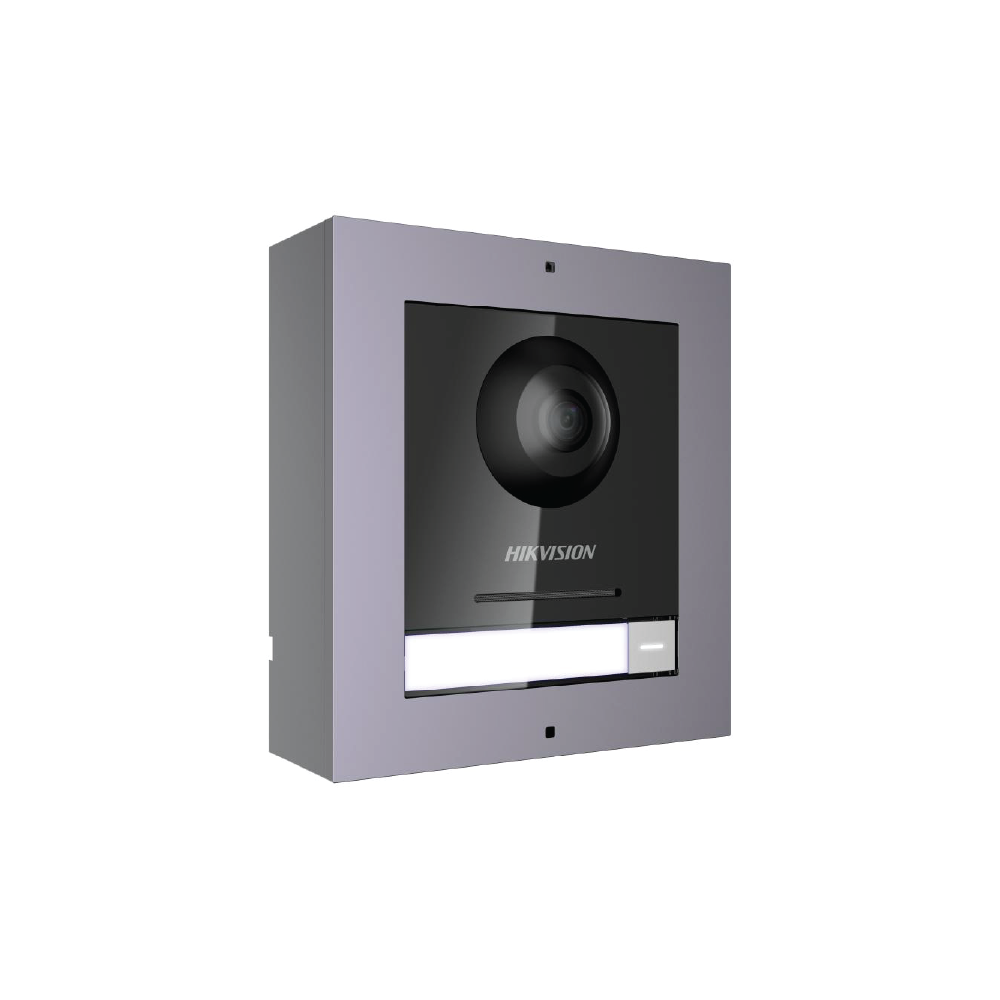

- DS-KD8003-IME1/Surface x1
- DS-KH6320-WTE1 x1
- 4 port standard PoE switch x1
- 16GB TF card x1
- European power supply adaptor included (please mark for other standards when you order)
- Door Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Flash32 MB
- RAM256 MB
- Door Station/Video Parameters
- Camera2MP HD camera
- Night VisionLow illumination IR supplement mode:3 m
- Backlight CompensationSupport
- Digital Noise ReductionSupport
- WDRSupport
- Field Of ViewHorizontal: 146°, Vertical: 82°
- Video Compression StandardH.264
- Motion DetectionSupport
- Door Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- Audio Compression StandardG.711 U, G.711 A
- Audio Compression Rate64 Kbps
- Audio IntercomTwo-way audio communication
- Door Station/Network Parameters
- Network ProtocolTCP/IP, RSTP
- Wired Network10/100 Mbps Ethernet
- Door Station/Device Interfaces
- Network Interface1 RJ45
- RS-4851 (1 for Hikvision’s sub module communication)
- Alarm Input4 (2 exit butttons and 2 door contacts by default)
- Debugging Port1
- Lock Control2 (2 relay, max to 30 V, 2 A)
- TAMPER Switch1
- Power Interface12 VDC power output (max to 12 V, 500 mA)
- Door Station/General
- Power Consumption≤ 5 W
- Working Temperature-40° C to 60° C (-40° F to 140° F)
- Working Humidity10% to 95%
- Dimension
Device: 98 mm × 100 mm × 42 mm (3.86″ × 3.94\” × 1.65\”)
Cover:117 × 107 × 4 mm (4.61 × 4.21\” ×0.16\”)
Installation Frame:117 × 107 × 32.7mm (4.61 × 4.21\” ×1.29\”)”
- InstallationSurface mounting
- Protection LevelIP65
- Indicator0
- Power Supply
IEEE802.3af, standard PoE
12 VDC
- Indoor Station/System Parameters
- Operation SystemEmbedded Linux operation system
- Memory128 MB
- Flash32 MB
- Indoor Station/Display Parameters
- Display Screen7-inch colorful TFT screen
- Display Resolution1024 × 600
- Operation MethodCapacitive touch screen
- Indoor Station/Audio Parameters
- Audio InputBuilt-in omnidirectional microphone
- Audio OutputBuilt-in loudspeaker
- Audio QualityNoise suppression and echo cancellation
- Audio Compression StandardG.711 U, G.711 A
- Audio Compression Rate64 Kbps
- Indoor Station/Network Parameters
- Wired Network10/100 Mbps self-adaptive
- Wireless NetworkWi-Fi 802.11 b/g/n
- ProtocolTCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
- Indoor Station/Device Interfaces
- RS-4851
- Alarm Input8-ch alarm inputs
- Relay Output2
- TF CardMax to 32 G, SD 2.0 or lower version
- Indoor Station/General
- Power Consumption≤ 6 W
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Dimension (L X W X H)200 mm × 140 mm × 23.6 mm (7.9″ × 5.5″ × 0.9″)
