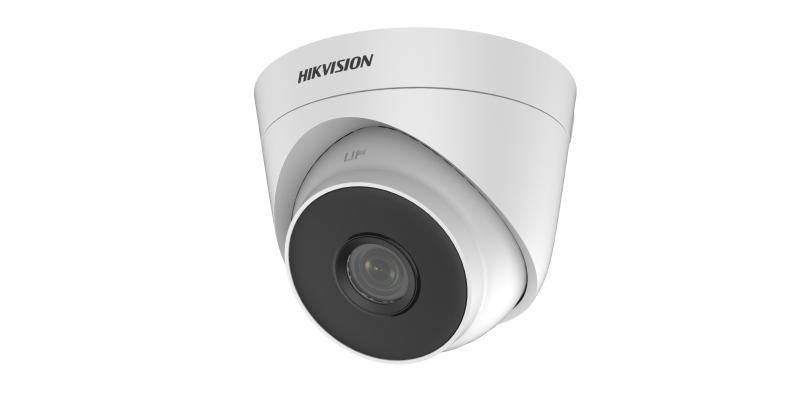

DS-2CE56D0T-IT1F(C) - Hikvision 2 MP Fixed Turret Camera

DS-2CE56D0T-IT1F(C) – Hikvision 2 MP Fixed Turret Camera

Call for Price

SKU: DS-2CE56D0T-IT1F(C) Categories: , , Tags: , , Brand:
  • 2 MP turret camera
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Available models:
DS-2CE56D0T-IT1F(2.8mm)(C)
DS-2CE56D0T-IT1F(3.6mm)(C)

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) Γ— 1080 (V)
  • Min. Illumination0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
  • Day & NightICR
  • Angle AdjustmentPan: 0 to 360Β°, Tilt: 0 to 75Β°, Rotation: 0 to 360Β°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV

    2.8 mm, horizontal FOV: 101Β°, vertical FOV: 60Β°, diagonal FOV: 122Β°

    3.6 mm, horizontal FOV: 79.6Β°, vertical FOV: 43.5Β°, diagonal FOV: 93.7Β°

    6 mm, horizontal FOV: 51.9Β°, vertical FOV: 30Β°, diagonal FOV: 58.8Β°

  • Lens MountM12
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness, Sharpness, Smart IR
  • Frame RateTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC
  • White BalanceAuto/Manual
  • AGCYes
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • General
  • MaterialPlastic
  • DimensionΞ¦ 110 mm Γ— 93.2 mm (Ξ¦ 4.33" Γ— 3.67")
  • WeightApprox. 211 g (0.47 lb.)
  • Operating Condition-40 Β°C to 60 Β°C (-40 Β°F to 140 Β°F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Power Supply12 VDC Β± 25%
  • ConsumptionMax. 2.2 W
  • IR RangeUp to 20 m
  • Approval
  • ProtectionIP67

Description

2 MP Fixed Turret Camera
  • 2 MP turret camera
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
