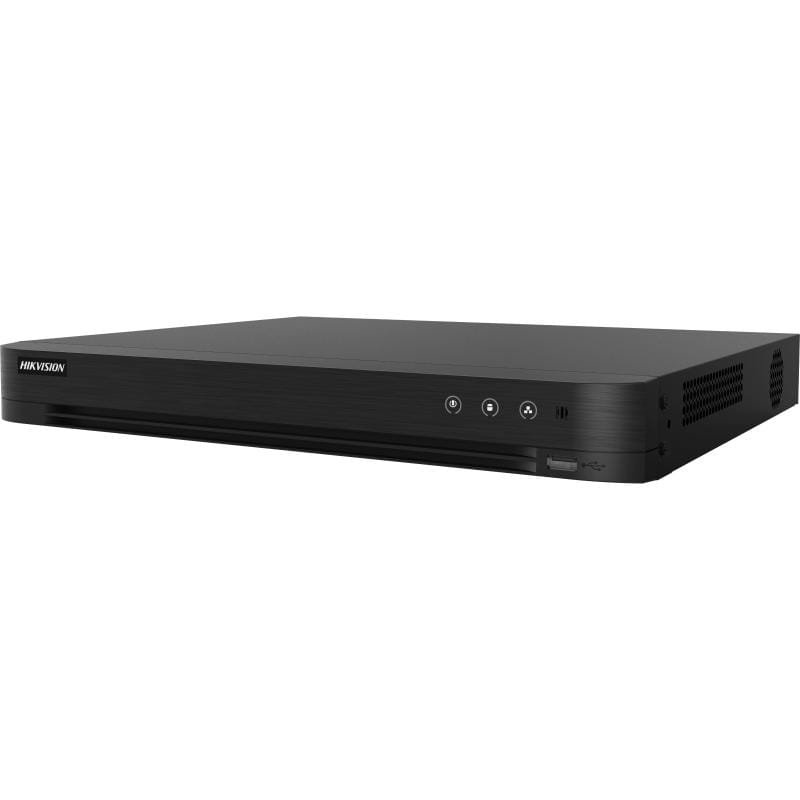

iDS-7216HUHI-M2/S - 16-ch 5 MP 1U H.265 AcuSense DVR

iDS-7216HUHI-M2/S – 16-ch 5 MP 1U H.265 AcuSense DVR

Call for Price

SKU: iDS-7216HUHI-M2/S Categories: , , Tags: ,
  • Deep learning-based motion detection 2.0 for all analog channels
  • Deep learning-based perimeter protection
  • Efficient H.265 pro+ compression technology
  • Up to 8 MP@8 fps/5 MP@12 fps encoding capability
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Up to 32-ch IP camera inputs (up to 8 MP)

Available models:

iDS-7216HUHI-M2/S(USA-STD)(E)4A+ALM16/4
iDS-7216HUHI-M2/S(USA-STD)(E)US4A+ALM/2T
iDS-7216HUHI-M2/S(USA-STD)(E)/4A+ALM/4T
  • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

    it can classify human and vehicle, and extremely reduce false alarms caused by objects

    like leaves and lights;

    Quick search by object or event type is supported;

  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 4-ch
  • Facial Detection
  • Facial Detection and CaptureFace picture detection, face picture search
  • Video and Audio
  • IP Video Input

    8-ch (up to 24-ch)

    Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps

    Up to 8 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    16-ch

    BNC interface (1.0 Vp-p, 75 Ξ©), supporting coaxitron connection

  • HDMI Output

    1-ch, 4K (3840 Γ— 2160)/30Hz,

    2K (2560 Γ— 1440)/60Hz,

    1920 Γ— 1080/60Hz,

    1280 Γ— 1024/60Hz,

    1280 Γ— 720/60Hz

    HDMI/VGA simultaneous output

  • VGA Output

    1-ch, 1920 Γ— 1080/60Hz, 1280 Γ— 1024/60Hz, 1280 Γ— 720/60Hz

    HDMI/VGA simultaneous output

  • CVBS InputPAL/NTSC
  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75 Ξ©),

    resolution: PAL: 704 Γ— 576, NTSC: 704 Γ— 480

  • Synchronous playback16-ch
  • HDTVI Input8 MP(3840 Γ— 2160)@15 fps, 8 MP(3840 Γ— 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 Γ— 1944)@20 fps, 5 MP(2560 Γ— 1944)@12 fps, 4 MP(2560 Γ— 1440)@30 fps, 4 MP(2560 Γ— 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • AHD Input5 MP(2560 Γ— 1944)@20 fps, 5 MP(2560 Γ— 1944)@12 fps, 4 MP(2560 Γ— 1440)@30 fps, 4 MP(2560 Γ— 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • HDCVI Input8 MP(3840 Γ— 2160)@15 fps, 8 MP(3840 Γ— 2160)@12 fps, 5 MP(2592 Γ— 1944)@20 fps, 4 MP(2560 Γ— 1440)@30 fps, 4 MP(2560 Γ— 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • Audio Output1-ch, RCA (Linear, 1 KΞ©)
  • Audio Input

    1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΞ©)

    16-ch via coaxial cable

  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΞ©) (using the audio input)
  • Recording
  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate

    Main stream:

    8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bitrate32 Kbps to 10 Mbps
  • Dual-streamSupport
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Network
  • Total Bandwidth128Mbps
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPβ„’, HTTPS, ONVIF
  • Remote Connection128
  • Network Interface

    1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

  • Wi-FiWi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
  • Auxiliary Interface
  • SATA2 SATA interfaces
  • CapacityUp to 10 TB capacity for each disk
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface

    Front panel: 1 Γ— USB 2.0

    Rear panel: 1 Γ— USB 3.0

  • Alarm In/OutN/A (optional to support)
  • General
  • Power Supply12 VDC, 5 A
  • Consumption≀ 19 W
  • Working Temperature-10 Β°C to +55 Β°C (+14 Β°F to +131 Β°F)
  • Working Humidity10% to 90%
  • Dimension (W Γ— D Γ— H)380 Γ— 320 Γ— 48 mm (15.0 Γ— 12.6 Γ— 1.9 inch)
  • Weight≀ 2.1 kg (4.6 lb)

Description

16-ch 5 MP 1U H.265 AcuSense DVR
  • Deep learning-based motion detection 2.0 for all analog channels
  • Deep learning-based perimeter protection
  • Efficient H.265 pro+ compression technology
  • Up to 8 MP@8 fps/5 MP@12 fps encoding capability
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Up to 32-ch IP camera inputs (up to 8 MP)
