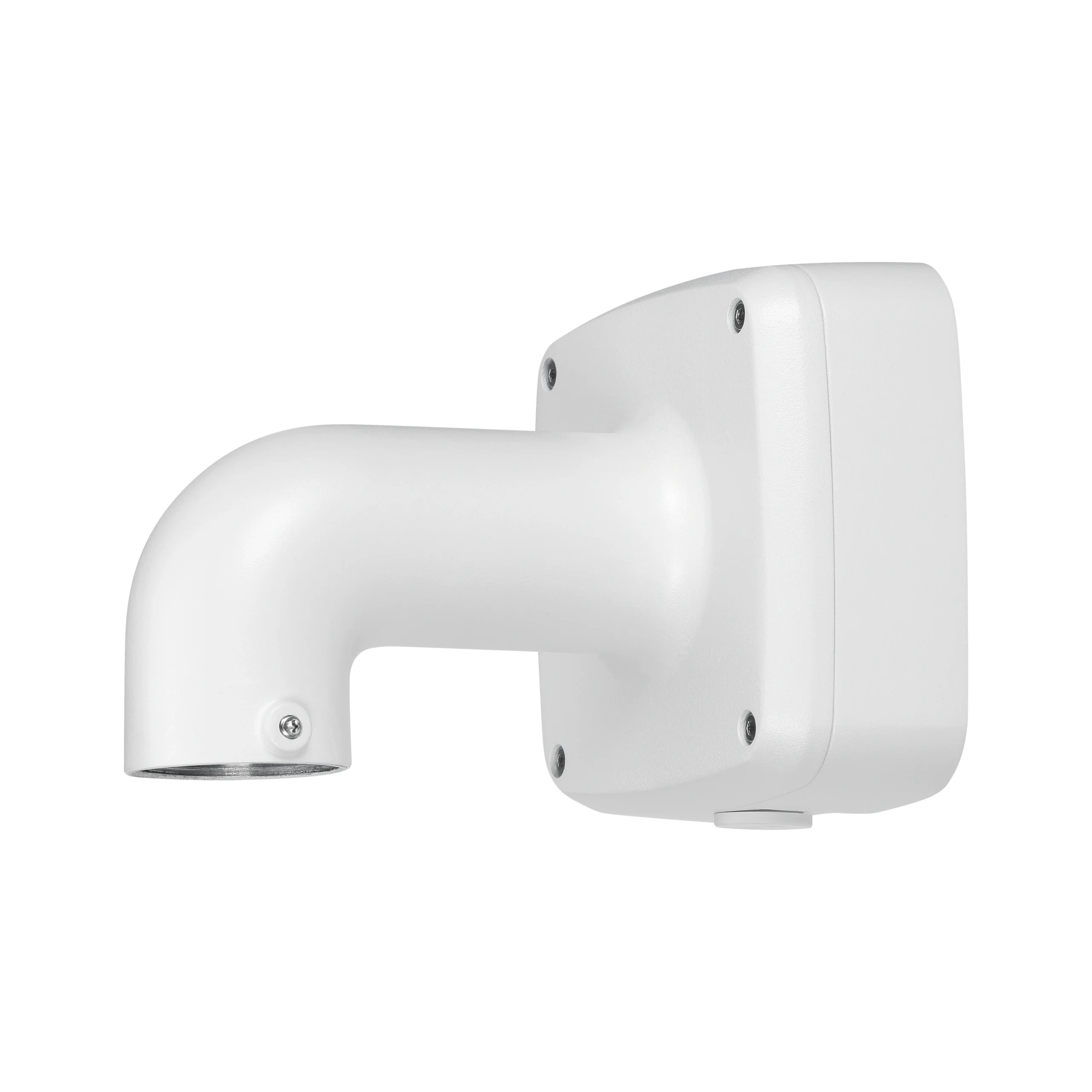

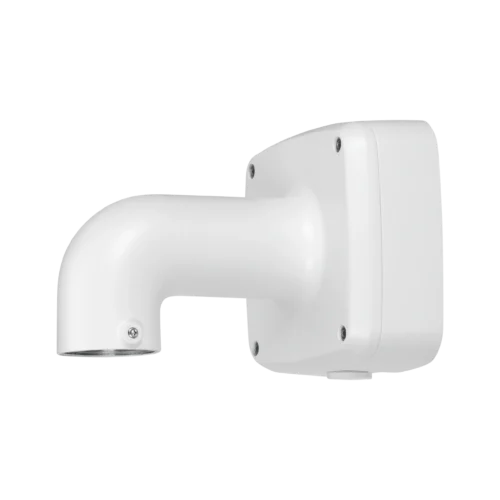

PFB302S – Dahua Wall Mount Bracket

Call for Price

SKU: PFB302S Categories: , , Tags: ,
  • Built of aluminum alloy and is cost-effective.
  • Suitable for a variety of cameras and is elegant.
  • Includes an embedded junction box that makes it easy to hide and connect the cables.
  • IP66 rated.
  • Mainly used in scenes that require wall mount installation.

Structure

Casing Material

Aluminum alloy

Product Dimensions

187.5 mm Γ— 134.0 mm Γ— 133.4 mm (7.38" Γ— 5.28" Γ— 5.25") (L Γ— W Γ— H)

Appearance Color

White

Net Weight

0.71 kg (1.57 lb)

Gross Weight

0.85 kg (1.87 lb)

Load Bearing

4.0 kg (8.82 lb)

Installation

Wall mount

Screw Thread Type

G1 1/2, G3/4

Applicable Model

Please see "Camera Accessories Selection"

Packaging Dimensions

252 mm Γ— 137 mm Γ— 137 mm (9.92" Γ— 5.39" Γ— 5.39") (L Γ— W Γ— H)

Environment

Protection

IP66

Operating Temperature

–40 Β°C to +60 Β°C (–40 Β°F to +140 Β°F)

Operating Humidity

<90% (RH)

Storage Temperature

–40 Β°C to +60 Β°C (–40 Β°F to +140 Β°F)

Storage Humidity

10%–90% (RH)

Anti-corrosion Level

Basic Protection

Description

PFB302S

Wall Mount Bracket

> Built of aluminum alloy and is cost-effective.

> Suitable for a variety of cameras and is elegant.

> Includes an embedded junction box that makes it easy to hide and connect the cables.

> IP66 rated.

> Mainly used in scenes that require wall mount installation.
