Description

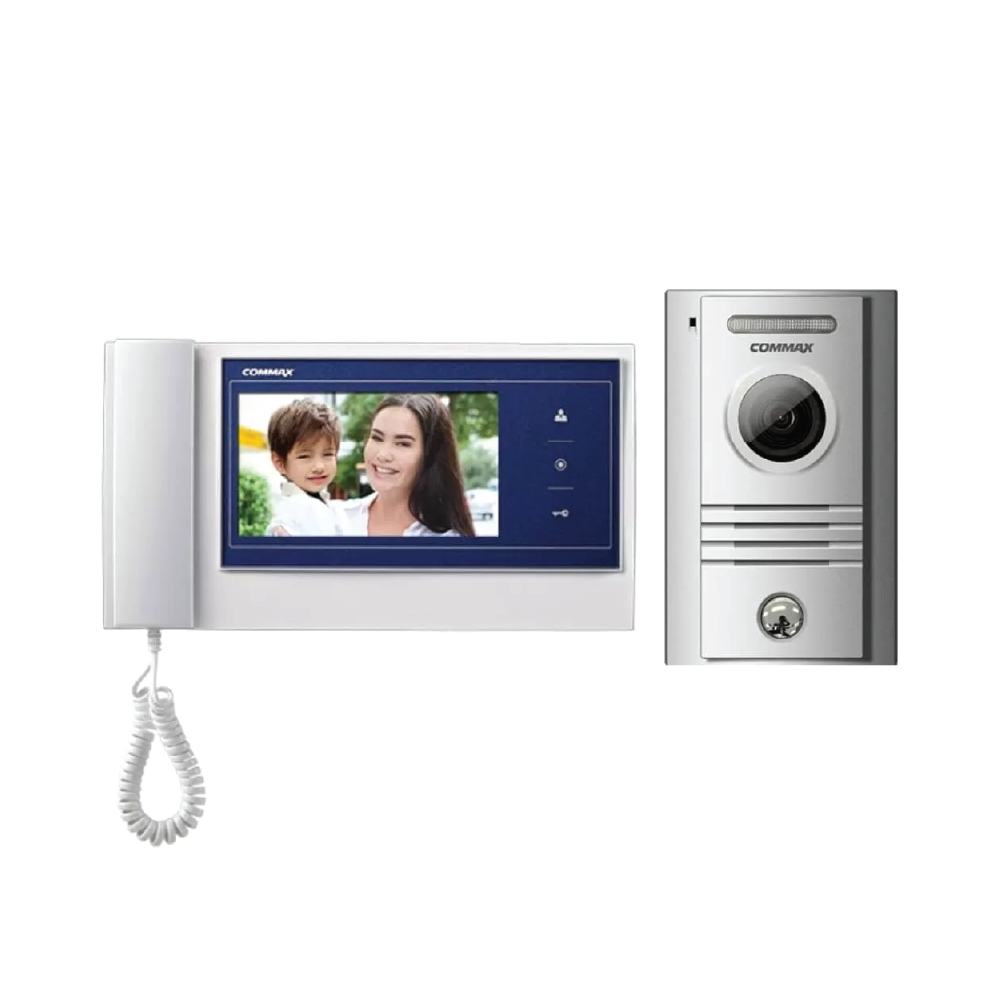

7 INCH WIDE LCD : Monitor visitors via 7 inch wide display LCD.
VIVID DISPLAY AND :It leads the world color video phone markets providing undistorted clear view and outstanding quality.
LED BACKLIGHT : Provide vivid pictures by utilizing LED backlight.
- 7 inch TFT LCD screen
- Video talk and door lock release enable (both individual and public entrance)
- Expandable up to 2 monitors with 2 CCTV cameras and 2 door cameras
- Memory storing in SD memory (CDV-70KM)
SPECIFICATION
- Power source
- AC 100-240V, 50/60Hz
- LCD size
- 7 inch wide color LCD
- Mount type
- Surface-mounted type
- Operating temp.
- 0℃~40℃
- Wiring
- Door camera: 4 wires(Polarity)
Interphone: 4 wires(Polarity) - Distance
- Door camera: 50m(0.65Ø)
Interphone: 20m(0.65Ø) - Consumption
- Max.16W/standby 3.9W
- Dimension(mm)
- 311(W)×168(H)×32(D)
