Description

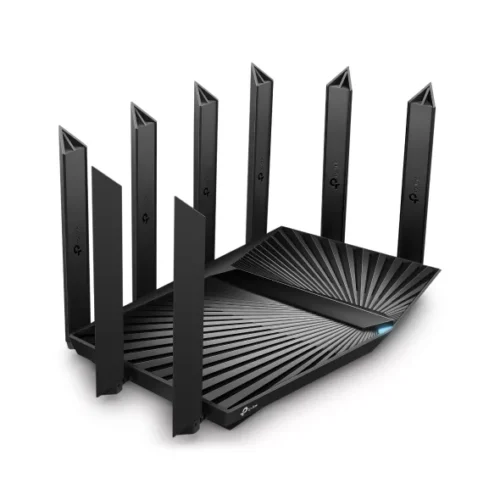

Archer AX90
New
- Faster AX6600 Tri-Band Wi-Fi – 4804Mbps (5 GHz) + 1201Mbps (5 GHz) + 574Mbps (2.4 GHz).†
- Ultra Connectivity – 1×2.5Gbps WAN/LAN port + 1×1Gbps WAN/LAN port + 3×Gigabit LAN ports and two USB ports ensure max flexibility and boosted throughput.
- Maximized Coverage – Eight high-gain antennas equipped with Beamforming ensure vast coverage.
- More Devices with Less Lag – OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.‡
- TP-Link HomeShield – Enhanced security defends against the latest cyber threats.*
- Powerful CPU – 1.5GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
- Refined Security—WPA3 reinforces Wi-Fi encryption for improved security.**
WIRELESS | |
---|---|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 4 Bedroom Houses 8× Fixed High-Performance Antennas Beamforming High-Power FEM 4T4R |
WiFi Capacity | Very High Tri-Band 4×4 MU-MIMO OFDMA Airtime Fairness DFS 8 Streams |
Working Modes | Router Mode Access Point Mode |
SECURITY | |
---|---|
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection |
Guest Network | 1× 5 GHz-1 Guest Network 1× 5 GHz-2 Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
---|---|
Processor | 1.5 GHz Quad-Core CPU |
Ethernet Ports | 1× 2.5 Gbps WAN/LAN Port 1× 1 Gbps WAN/LAN Port 3× 1 Gbps LAN Ports |
USB Support | 1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: Supported Functions: |
Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power | 12 V ⎓ 3.3 A |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Service Kits | HomeShield Learn More> |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls | HomeShield Parental Controls Custom Profiles |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
WiFi Reception Sensitivity | 2.4GHz: 11n HT20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS11:-62dBm 5GHz-1: 11ac VHT20 MCS0:-92dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 5GHz-2: 11ac VHT20 MCS0:-95dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 11ax HE160 MCS11:-53dBm |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm) |
Package Contents | Wi-Fi Router Archer AX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
