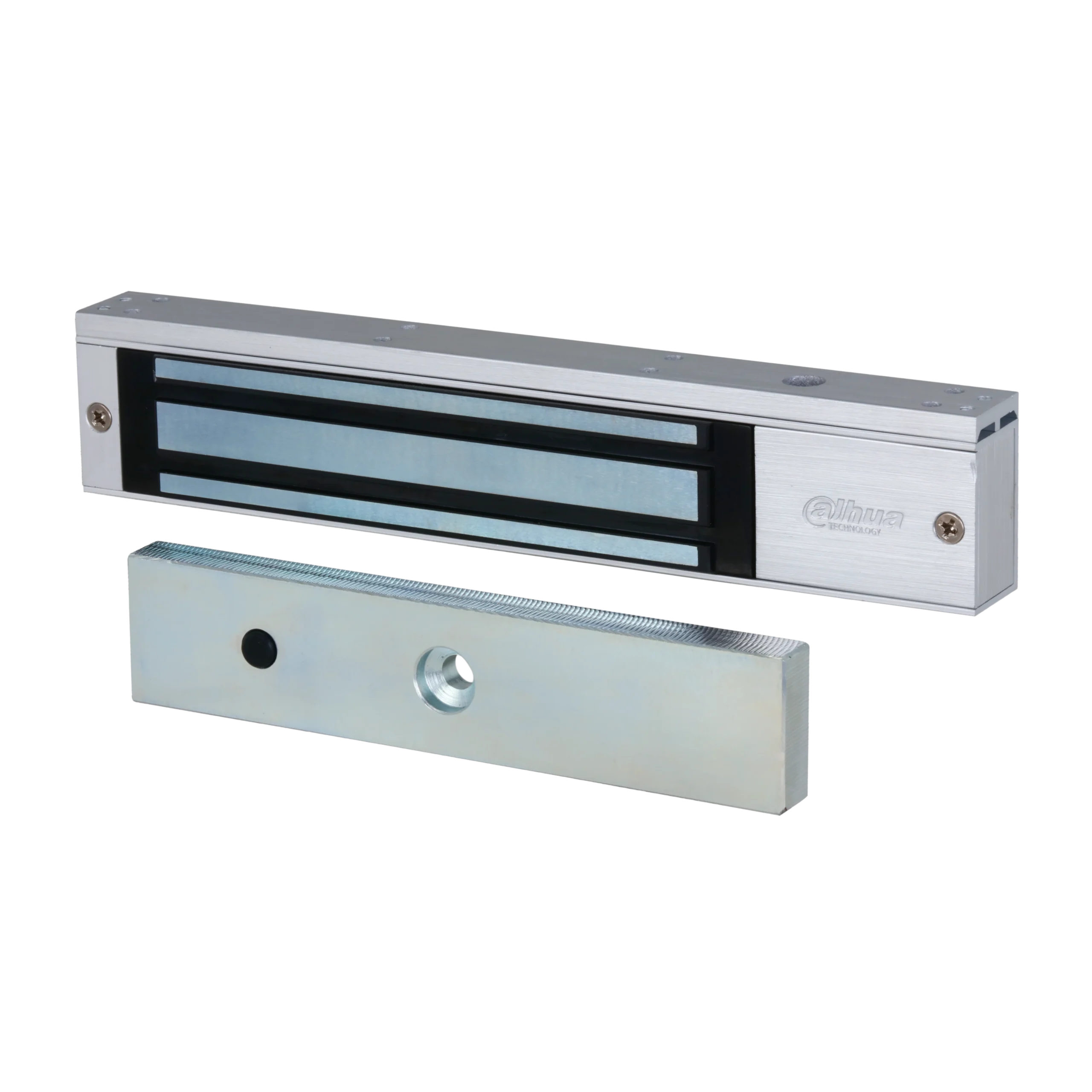

ASF280A-V1 - Dahua Magnetic Lock

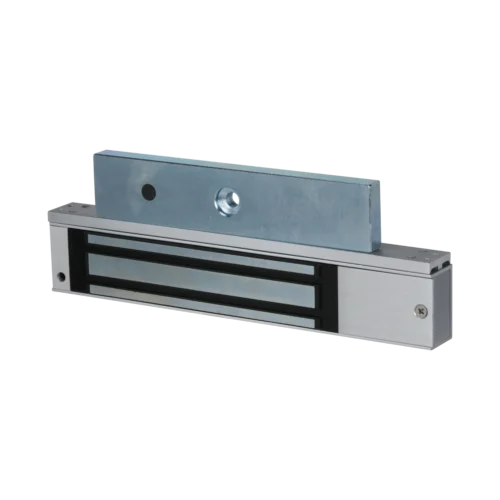

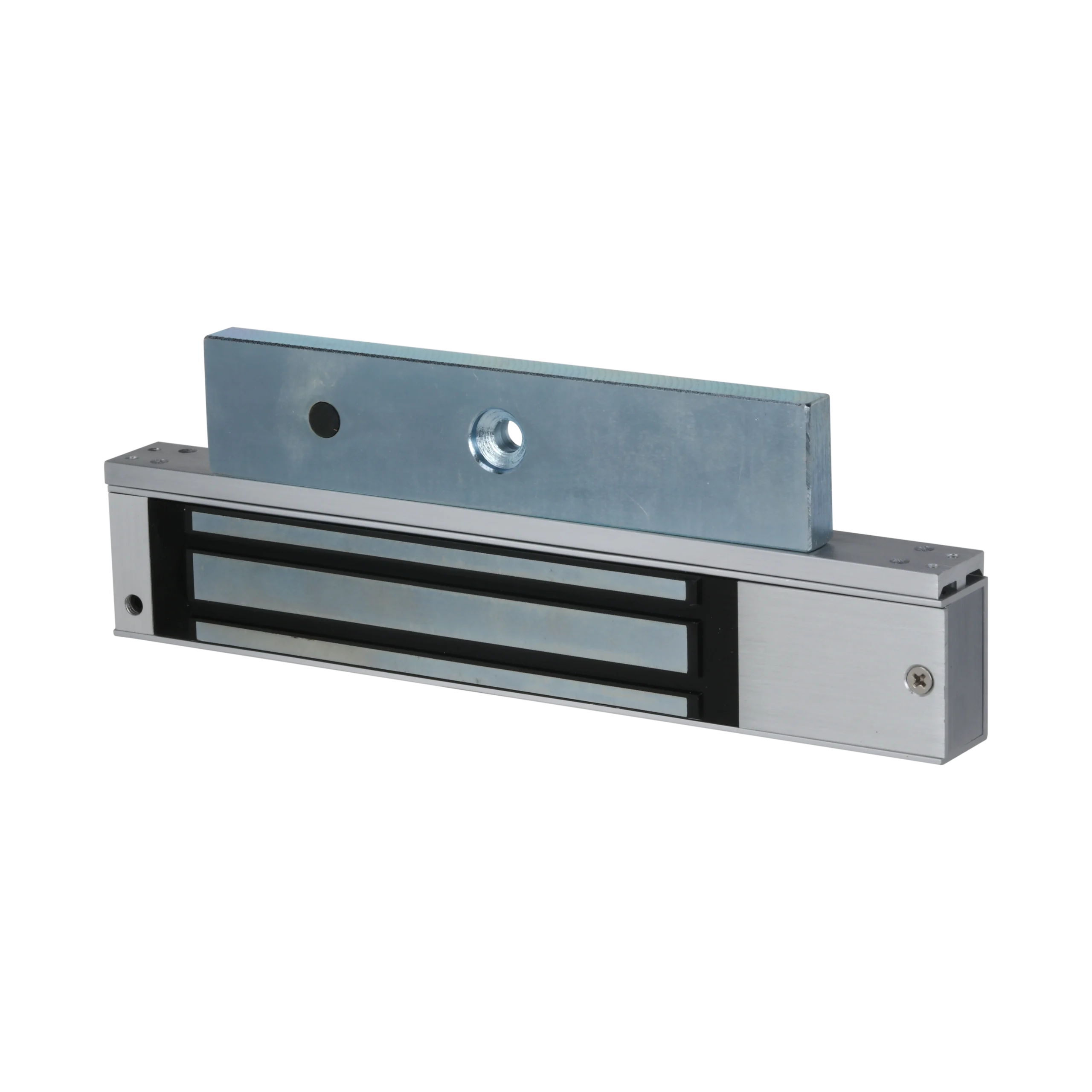

ASF280A-V1 - Dahua Magnetic Lock - Image 2

ASF280A-V1 – Dahua Magnetic Lock

Call for Price

> Built of aluminum alloy and treated with surface oxidation, making it suitable for indoor scenes.
> Embedded reverse current protection equipment.
> Built with anti-wear materials and has an anti-residual magnetism design.
> Displays the status with the LED indicator.
> 5-wire that supports door detector signal feedback.
> Has a long service life, allowing it to be powered on up to 40,000 times as indicated by the aging test.
> Completely relies on the electromagnetic force and is free from mechanical failure.
> Automatically unlocks the door when the device is powered off.
> Suitable for doors made of a variety of materials such as wood, glass, metal and fireproof materials.
> Compatible with all Dahua access control devices, and other mainstream access control devices.

Brand :
Dahua
SKU: ASF280A-V1 Categories: , , Tags: ,
Basic
Product Type Magnetic lock
Casing Material Aluminum alloy
Surface Treatment Electroplating and drawing
Suction Plate Dimensions 180 mm × 38 mm ×13 mm (7.09" × 1.50" × 0.51")
Function
Signal Output COM/NO/NC
Door Status Detection 1, relay
Security Open while power off
Performance
Max Tension 280 kg (617.29 lb), tensile force
Unlock Angle 90°
General
Applicable Door Thickness 5 cm–15 cm (1.97"–5.91")
Power Adapter Optional
Power Supply 12 VDC, 510 mA
Power Consumption ≤6.1 W (working)
Lifespan 40000
Product Dimensions 250 mm × 48.6 mm × 26 mm (9.84" × 1.91" × 1.02")
Packaging Dimensions 400 mm × 300 mm × 160 mm (15.75" × 11.81" × 6.30") (transport package)
Operating Temperature –20 °C to +55 °C (–4 °F to +131°F)
Operating Humidity 5%–95% (RH), non-condensing
Operating Environment Indoor
Gross Weight 2.1 kg (4.63 lb)
Accessory DHI-ASF280ZL-V1, DHI-ASF280L-V1, and DHI-ASF280U-V1
Installation Surface Mount
Anti-corrosion Level Basic Protection

Description

ASF280A-V1

Magnetic Lock

> Built of aluminum alloy and treated with surface oxidation, making it suitable for indoor scenes.
> Embedded reverse current protection equipment.
> Built with anti-wear materials and has an anti-residual magnetism design.
> Displays the status with the LED indicator.
> 5-wire that supports door detector signal feedback.
> Has a long service life, allowing it to be powered on up to 40,000 times as indicated by the aging test.
> Completely relies on the electromagnetic force and is free from mechanical failure.
> Automatically unlocks the door when the device is powered off.
> Suitable for doors made of a variety of materials such as wood, glass, metal and fireproof materials.
> Compatible with all Dahua access control devices, and other mainstream access control devices.
