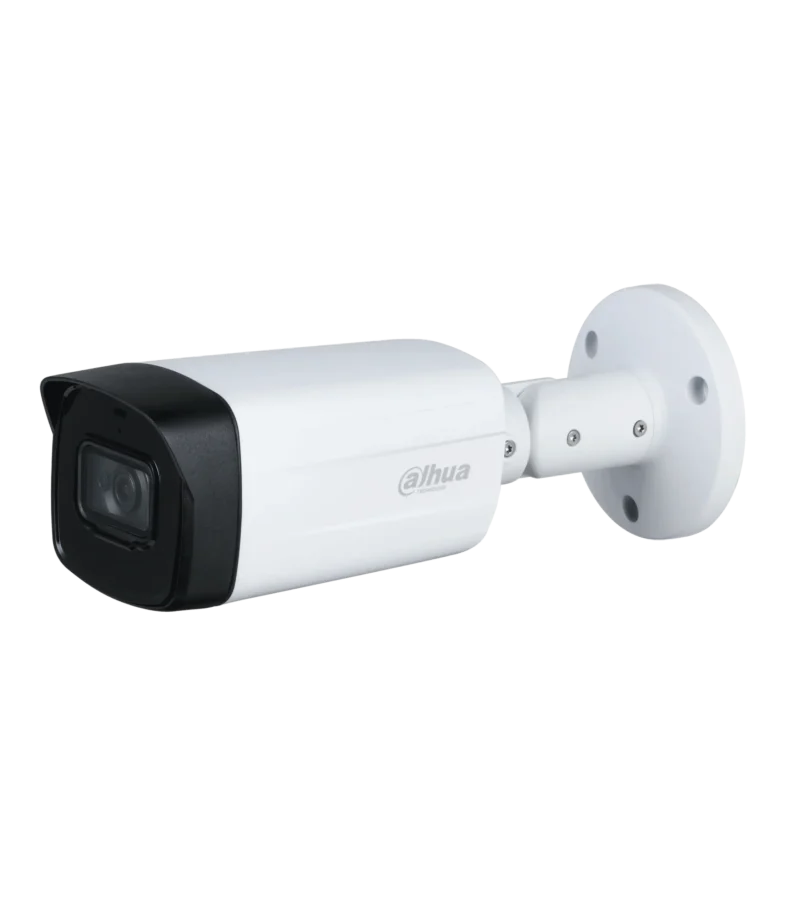

DH-HAC-HFW1800TH-I4 - Dahua 4K Real-time HDCVI IR Bullet Camera

DH-HAC-HFW1800TH-I4 – Dahua 4K Real-time HDCVI IR Bullet Camera

Call for Price

>Max. 4K resolution, real-time video transmission
> CVI/CVBS/AHD/TVI switchable
> Fixed lens (2.8mm; 3.6mm;6mm optional)
> Max. IR length 40m, Smart IR
> IP67, 12V±30%DC

Continue Shopping Categories: , , Tags: , Brand:

Camera

Image Sensor

1/2.7 inch CMOS

Effective Pixels

3840 (H)× 2160 (V), 4K

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s

S/N Ratio

>65dB

Minimum Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

Fill Light Working Distance

40m (131.2.5ft)

IR On/Off Control

Auto; manual

IR LED Number

1

Pan/Tilt/Rotation Range

Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8mm; 3.6mm;6mm

Max. Aperture

F2.0

Angle of View

2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical) 3.6mm: 104° x 87° x 47° (diagonal x horizontal x vertical) 6mm:62.4° x54.7° x31.3°(diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8mm: 1.0 m (3.3 ft) 3.6mm: 1.9 m (6.2 ft) 6mm:3.6m(11.8ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

74.7 m (245.1 ft)

29.9 m (98.1 ft)

14.9 m (48.9ft)

7.5 m

(24.6 ft)

3.6mm

106.7 m (350.1 ft)

42.7 m (140.1 ft)

21.3 m (69.9 ft)

10.7 m (35.1 ft)

6mm

160m

(524.9 ft)

64 m (210.0ft)

32 m (105.0ft)

16 m (52.5ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Frame Rate

CVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H

Resolution

4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/HLC/WDR

WDR

DWDR

White Balance

Auto; manual

Gain Control

Auto; manual

Noise Reduction

2D NR

Smart IR

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 4.3W (12V DC, IR on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal front cover+plastic main body+metal bracket

Camera Dimensions

240.7mm×90.7m×90.4mm (9.48”×3.57”×3.56”)

Net Weight

0.42Kg (0.93lb)

Gross Weight

0.62Kg (1.37lb)
