HikVision/2MP/WDR Varifocal Bullet Network Camera/MOI/(2.8-12mm)/VF

Call for Price

Description

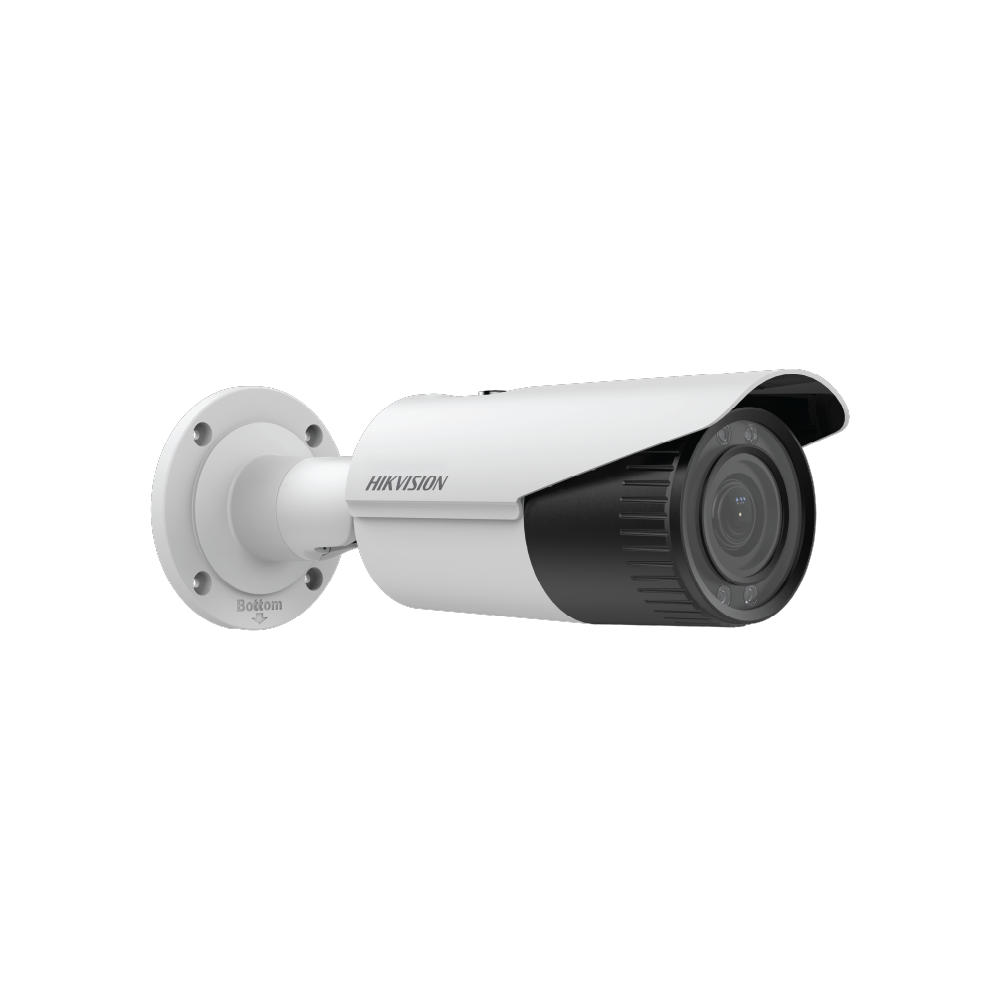

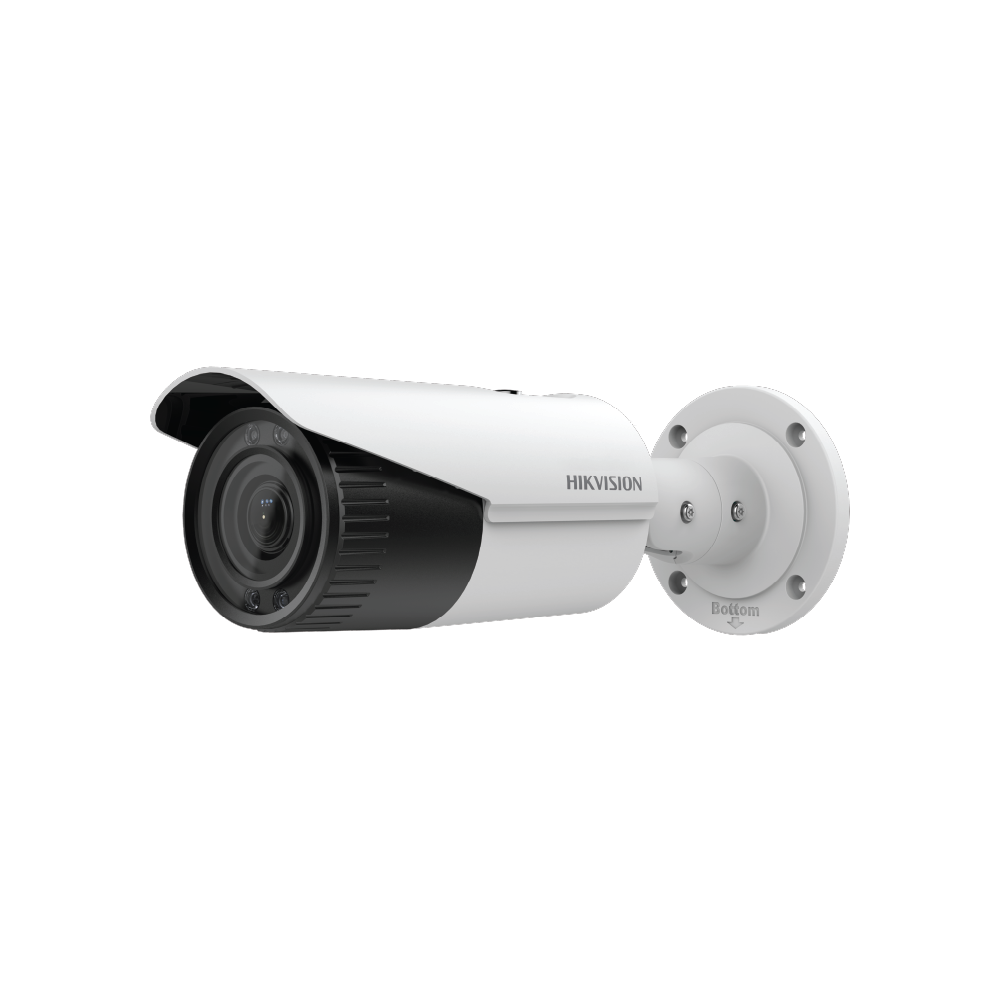

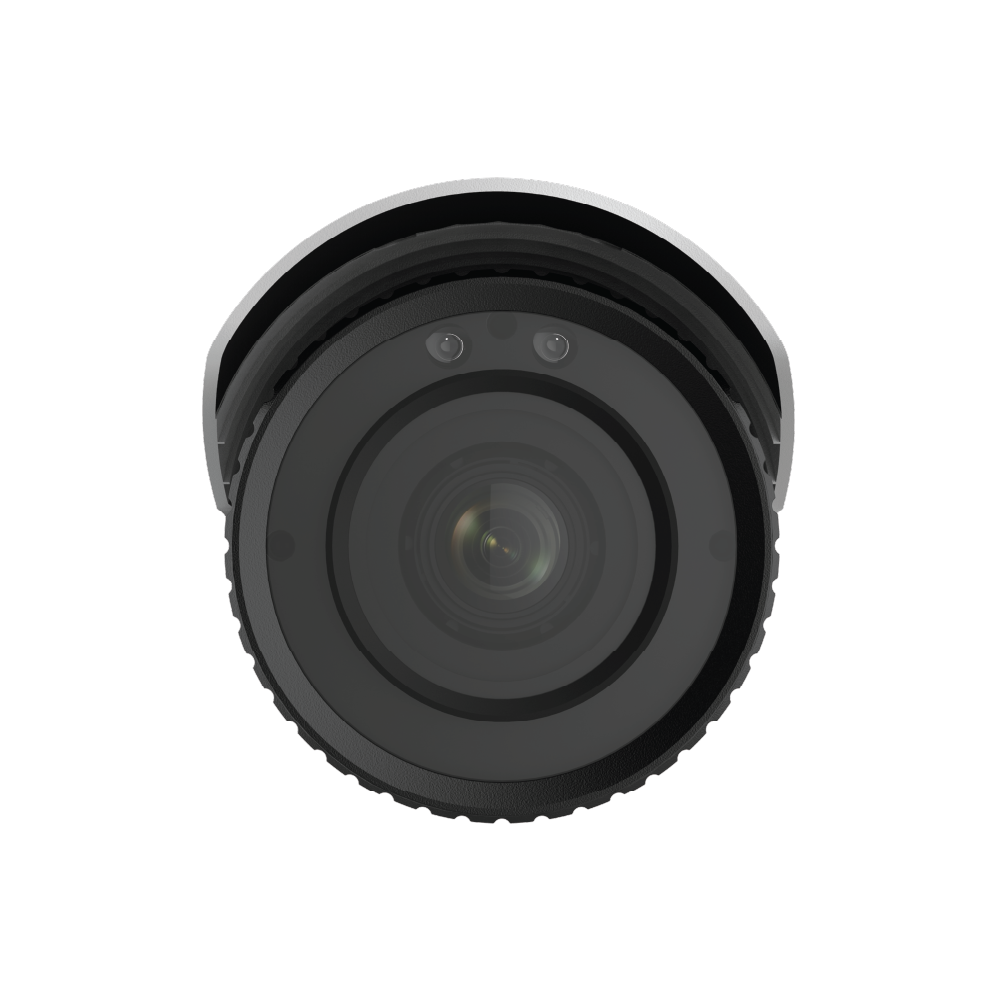

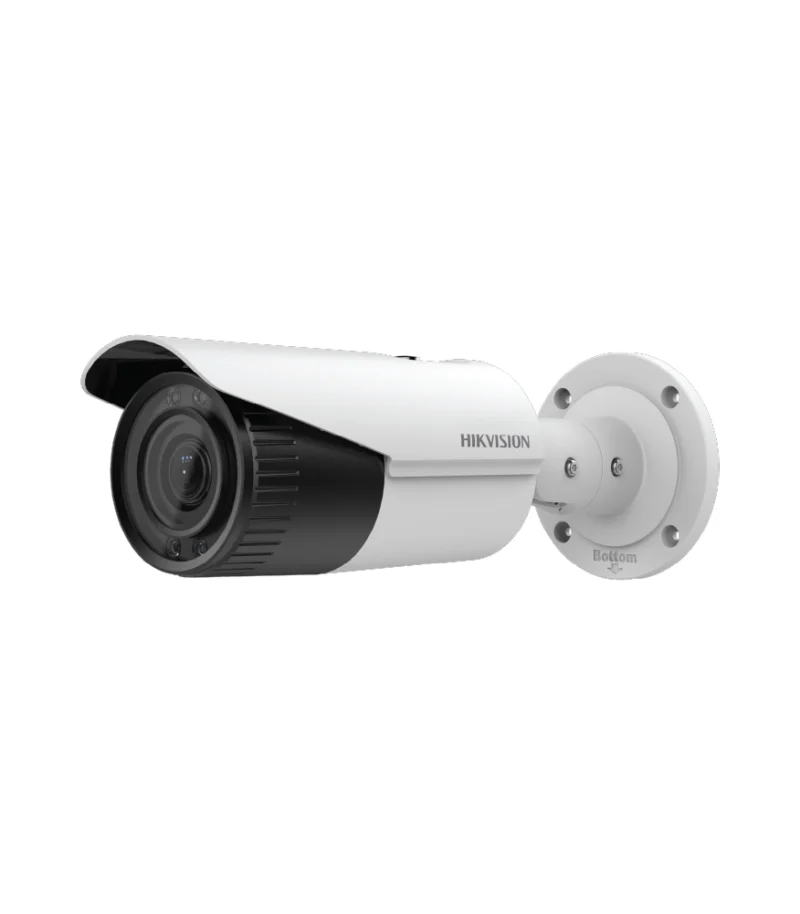

2MP/WDR Varifocal Bullet Network Camera/MOI – Hikvision DS-2CD2621G0-IZS.

2 MP WDR Varifocal Bullet Network Camera,

High quality imaging with 2 MP resolution.

Efficient H.265+ compression technology.

Clear imaging against strong back light due to 120 dB true WDR technology.

-Z: motorized varifocal lens for easy installation and monitoring.

-S: audio and alarm interface available.

Water and dust resistant (IP67)

Robust structure design with full metal materials.

  • Camera
  • Image Sensor1/2.7″ Progressive Scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360°
  • Lens
  • Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV2.8 to 12 mm: horizontal FOV 94° to 36°, vertical FOV 50° to 20°, diagonal FOV 109° to 42°
  • Lens MountØ14
  • Iris TypeFixed
  • ApertureF1.6
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 60 m
  • IR Wavelength850 nm
  • Video
  • Main Stream

    50 Hz: 25 fps (1920 × 1080, 1280 × 720)

    60 Hz: 30 fps (1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 25 fps (640 × 480, 640 × 360 )

    60 Hz: 30 fps (640 × 480, 640 × 360 )

  • Video Compression

    Main stream: H.265+/H.265/H.264+/H.264

    Sub-stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Region Of Interest (ROI)1 fixed region for main stream
  • Audio
  • Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-S: 8 kHz/16 kHz
  • Environment Noise Filtering-S: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface, ISAPI
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule, Day, Night
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Audio

    -S:

    1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

    1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

  • Alarm-S: 1 input,1 output, (max. 12 VDC, 30 mA)
  • Reset KeyYes
  • Event
  • Basic EventMotion detection, video tampering alarm, exception
  • Smart EventLine crossing detection, intrusion detection
  • Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, audible warning, trigger alarm output
  • General
  • Power

    12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug

    PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W

  • MaterialMetal
  • DimensionØ105 mm × 294.5 mm (4.1″ × 11.6″)
  • Package Dimension386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
  • Approx. 1050 g (2.3 lb.)
  • With Package WeightApprox. 1500 g (3.3 lb.)
  • Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Approval
  • EMC

    FCC SDoC: 47 CFR Part 15, Subpart B;

    CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;

    RCM: AS/NZS CISPR 32: 2015;

    IC VoC: ICES-003: Issue 6, 2016;

    KC: KN 32: 2015, KN 35: 2015

  • Safety

    UL: UL 60950-1;

    CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

    CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;

    BIS: IS 13252(Part 1):2010+A1:2013+A2:2015

  • Environment

    CE-RoHS: 2011/65/EU;

    WEEE: 2012/19/EU;

    Reach: Regulation (EC) No 1907/2006

  • ProtectionIP67: IEC 60529-2013
