Description
- 6 pairs of IR light detectors: Permissions validation and anti-tailgating
- LED light indicates passing direction
- The barrier will stop working for a period of time when detecting obstruction when open/close barrier
- Self-detection, Self-diagnostics, and automatic alarm
- System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
- Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered.
- Barrier will automatically open when powering down
- System
- MCBF＞3 million times
- MotorBrushless motor
- Interface
- Exit Button2
- Alarm Input1
- General
- Throughput
20 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Power Supply Method100 to 240 VAC; 50 to 60 Hz
- IR Light Detectors6 pairs
- Lane Width550 mm to 1100 mm
- Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
- Barrier MaterialStainless steel pipe; Acrylic glass
- Built-In Access ControllerNo
- Working Humidity10% to 95% (No Condensing)
- Dimensions
Without packaging: 1200 mm × 200 mm × 1020 mm (47.2″ × 7.9\” × 40.2\”)
With packaging: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\” × 45.5\”)
- Pedestal MaterialSUS304 stainless steel
- Application EnvironmentIndoor and outdoor
- Protective LevelIPX4 (proved by Hikvision laboratory)
- Weight
Net (Approximately): 38.3 kg (Left), 43.3 kg (Middle), 40.2 kg (Right)/84.5 lb (Left), 95.5 lb (Middle), 88.6 lb (Right)
Rough (Approximately): 66.5 kg (Left), 71.5 kg (Middle), 68.4 kg (Right)/146.6 lb (Left), 157.7 lb (Middle), 150.8 lb (Right)
- ApprovalCE/CB/RoHS/REACH/WEEE
- Power Consumption65W (stand by)
- Configuration
- Module SelectionNO
- Wall Distance60mm
- Lane Width650,750,900,1100
- Recommended Width650
- Pedestal Width200mm
- Pedestal Length1200mm
- Barrier MaterialAcrylic glass,Stainless steel pipe
- BaseYES
- Base ModelDS-K3B411X-BASE

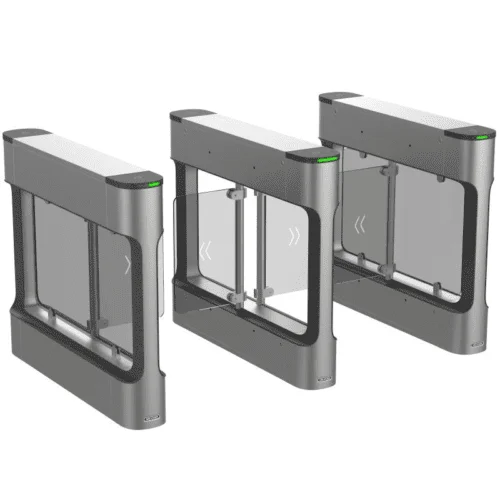

- Product TypeSwing barrier
