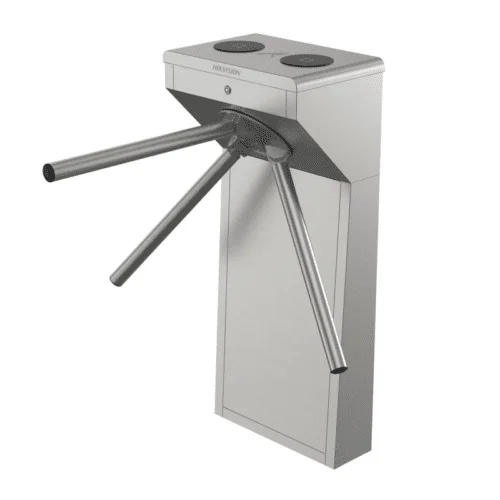

Value Tripod Turnstile

Description

• Bidirectional (Entering/Exiting) lane.
• High-brightness LED indicates the entrance/exit and passing status except “Pg” type.
• Fire alarm passing: When triggered, the arms will be dropped automatically for emergency evacuation.
• Support IO connection for 3rd party ACS integration.
• For “Pg” type, the face terminal need purchase separately.

• System
• MCBF2 Million

• Interface
• Network InterfaceTCP/IP
• Lock Controlx 2
• Exit Buttonx 2
• Alarm Outputx 2
• TAMPERNA
• Fire Alarm Inputx 1
• Case Inputx 2

• Hardware
• Access ControllerBuilt-in
• Network SwitchNot included
• Power Supply For Face Recognition ModuleNot included
• KeyfobNot supported

• Capacity
• Card Capacity500,000
• Event Capacity500,000

• Authentication
• Card TypeEM, M1, Desfire, Felica

• Function
• Configuration Via Web BrowserYes

• General
• Throughput

  More than 25 persons per minute

  The actual throughput is affected by the person passing rate and passing method.

• Lane Width550mm
• Barrier MaterialSUS304 stainless steel pipe
• Pedestal MaterialSUS304 stainless steel 1.0mm(0.03”)
• IndicatorYes, except for “Pg” type
• Power Consumption35W (stand by)
• Working Temperature-20 °C to 65 °C (-4 °F to 149 °F)
• Working Humidity0% to 95% (No condensing)
• Dimensions

  Without package: 426 mm ×268 mm × 982.5 mm (16.77″ × 10.55\” × 38.68\”)

  With package: 700 mm × 430 × 1120 mm (27.56 × 16.93\” × 44.09\”)”

• Weight

  Without package:21 kg (46.3 lb)

  With package: 29.5 kg (65 lb)

• ApprovalCE, CB, RoHS, REACH, WEEE

• Configuration
• Lane Width550mm
• Pedestal Length426mm
• Module SelectionNO
• Pedestal Width286mm
• Wall Distance60mm
• BaseYES
• Barrier MaterialStainless steel pipe
• Authentication ModeCard;Face;QR code
• Card TypeEM;M1;Desfire;Felica
• Recommended Width550
• Base ModelDS-K3G200X-BASE
• Product TypeTripod Turnstile
• Remote Controller TypeNA
