Description

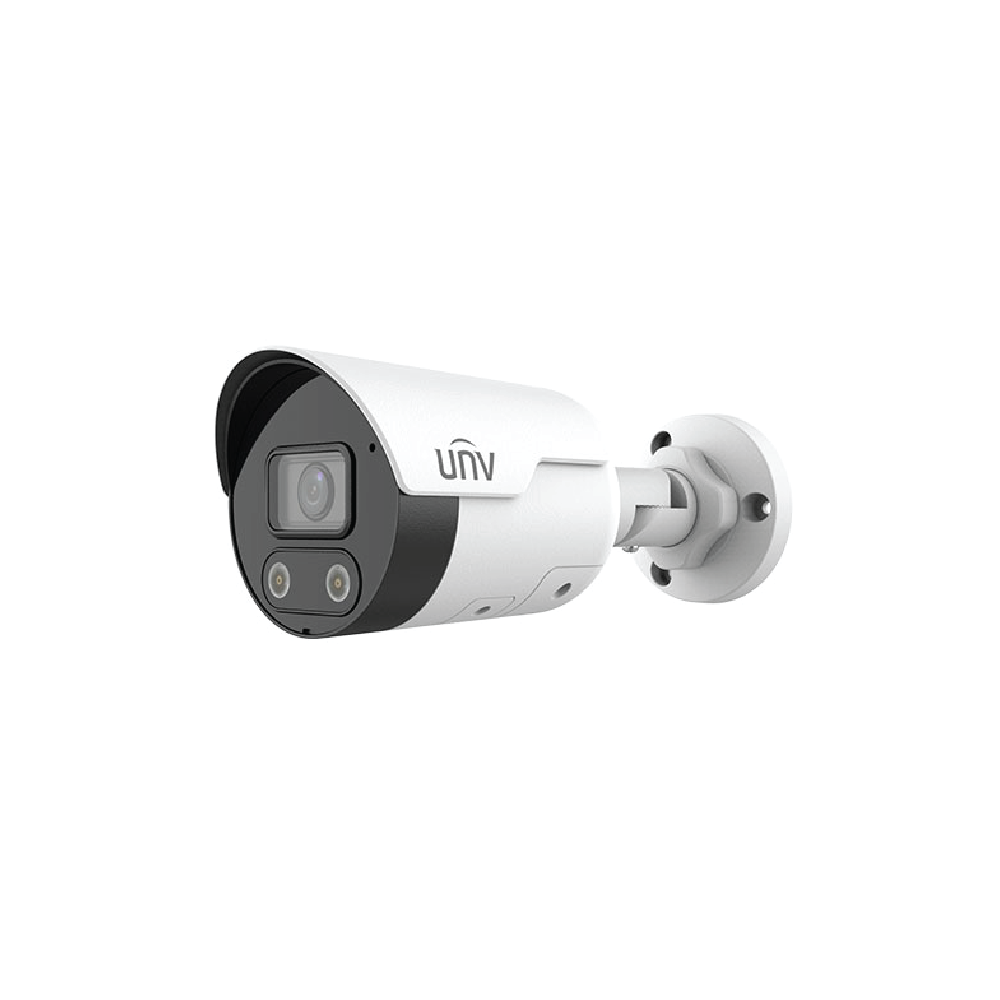

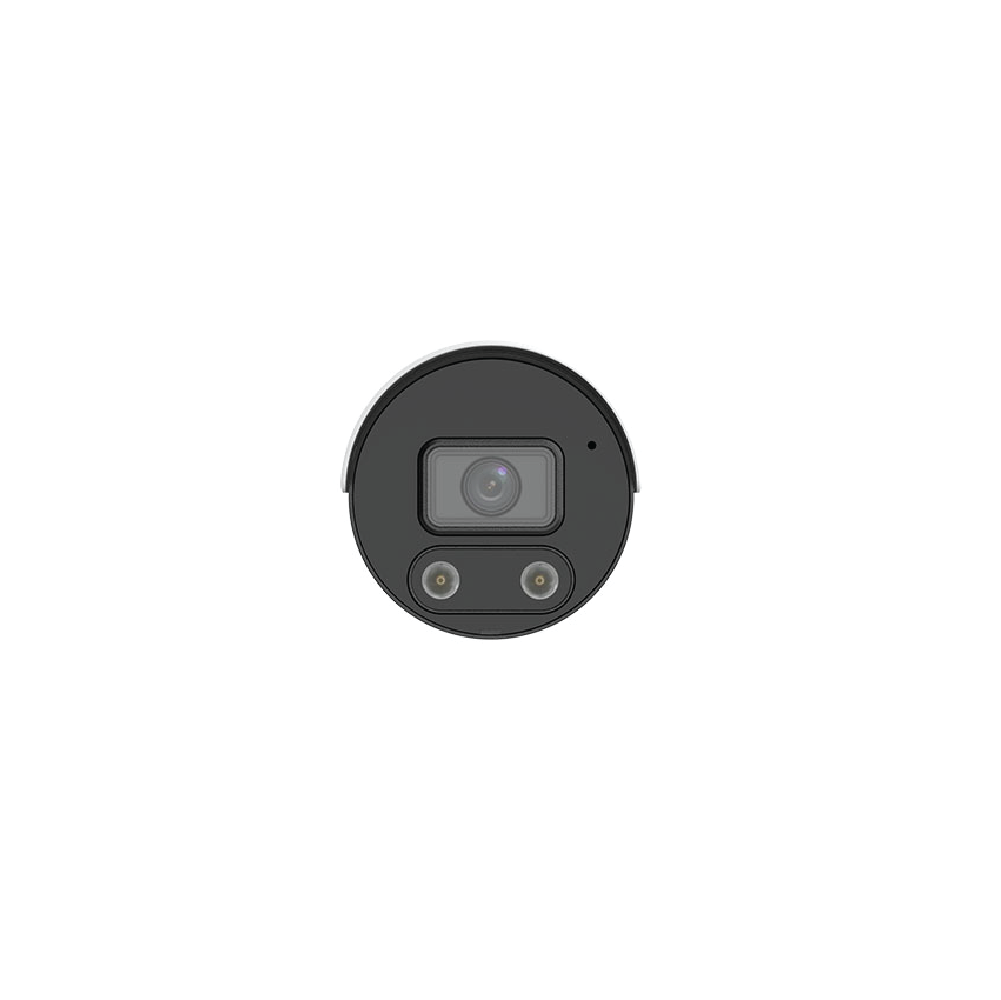

IPC2122LE-ADF28(40)KMC-WL
2MP HD ColorHunter Mini IR Fixed Bullet Network Camera
• High quality image with 2MP, 1/2.8″CMOS sensor
• 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic & Speaker
• Smart IR, up to 30m (98ft) IR distance
• White Light, up to 30m (98ft) white light distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
• 2MP (1920*1080) @30/25fps; 720P (1280*720) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic & Speaker
• Smart IR, up to 30m (98ft) IR distance
• White Light, up to 30m (98ft) white light distance
• Supports 128 G Micro SD card
• IP67 protection
• Support PoE power supply
• 3-Axis
Camera | |||||||||
Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS | ||||||||
Minimum Illumination | Colour: 0.003 lux ( F1.6, AGC ON) 0Lux with light | ||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Adjustment Angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
S/N | >52dB | ||||||||
WDR | 120dB | ||||||||
Lens | |||||||||
Lens Type | 2.8mm @F1.6 | 4.0mm @F1.6 | |||||||
Iris | Fixed | ||||||||
Field of View (H) | 106.7° | 87.5° | |||||||
Field of View (V) | 57.1° | 46.3° | |||||||
Field of View (D) | 115.7° | 92.4° | |||||||
DORI | |||||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||||
2.8 | 43.4 | 17.4 | 8.7 | 4.3 | |||||
4.0 | 62.1 | 24.8 | 12.4 | 6.2 | |||||
Illuminator | |||||||||
IR Range | Up to 30m (98ft) IR range | ||||||||
White Light Range | Up to 30m (98ft) white light range | ||||||||
Wavelength | 850nm | ||||||||
IR On/Off Control | Auto/Manual | ||||||||
Video | |||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
H.264 Code Profile | Baseline profile, Main profile, High profile | ||||||||
Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||||
Video Bit Rate | 128 Kbps~6 Mbps | ||||||||
U-code | Support | ||||||||
OSD | Up to 4 OSDs | ||||||||
Privacy Mask | Up to 4 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Video stream | Dual streams | ||||||||
Image | |||||||||
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
Digital Noise Reduction | 2D/3D DNR | ||||||||
Smart IR | Supported | ||||||||
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||||||
HLC | Supported | ||||||||
BLC | Supported | ||||||||
Defog | Digital Defog | ||||||||
Events | |||||||||
Basic Detection | Cross line, intrusion(based on human body detection),motion detection, tampering alarm, audio detection | ||||||||
General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | ||||||||
Audio | |||||||||
Audio Compression | G.711A,G.711U | ||||||||
Audio Bitrate | 64 Kbps | ||||||||
Two-way Audio | Support | ||||||||
Suppression | Support | ||||||||
Sampling Rate | 8KHZ | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 128GB | ||||||||
Network Storage | ANR, NAS(NFS) | ||||||||
Network | |||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API , SDK | ||||||||
User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||||||
Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||||||
Client | EZStation EZView EZLive | ||||||||
Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
Interface | |||||||||
Audio I/O | N/A | ||||||||
Alarm I/O | N/A | ||||||||
RS485 | N/A | ||||||||
Built-in Mic | Support | ||||||||
Built-in Speaker | Support | ||||||||
WIFI | N/A | ||||||||
Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
Video Output | N/A | ||||||||
Certification | |||||||||
EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | ||||||||
Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | ||||||||
Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | ||||||||
Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | ||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 9.0W | |||||||||
Power Interface | Ø 5.5mm coaxial power plug | ||||||||
Dimensions(L × W × H) | 191×75×74mm (7.5”×2.9”×2.9”) | ||||||||
Weight | 0.41kg (0.90lb) | ||||||||
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Surge Protection | 4KV | ||||||||
Reset Button | N/A |
