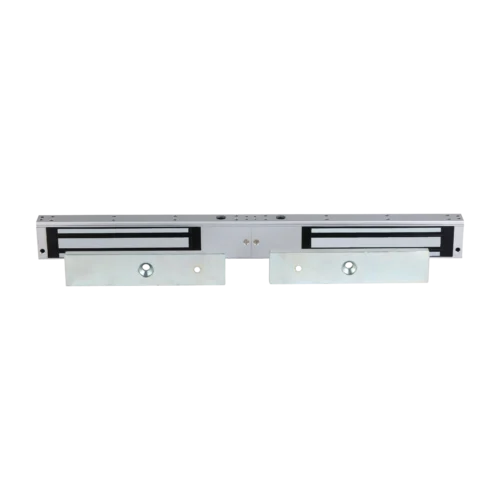

ASF280B-V1 - Dahua Magnetic Lock

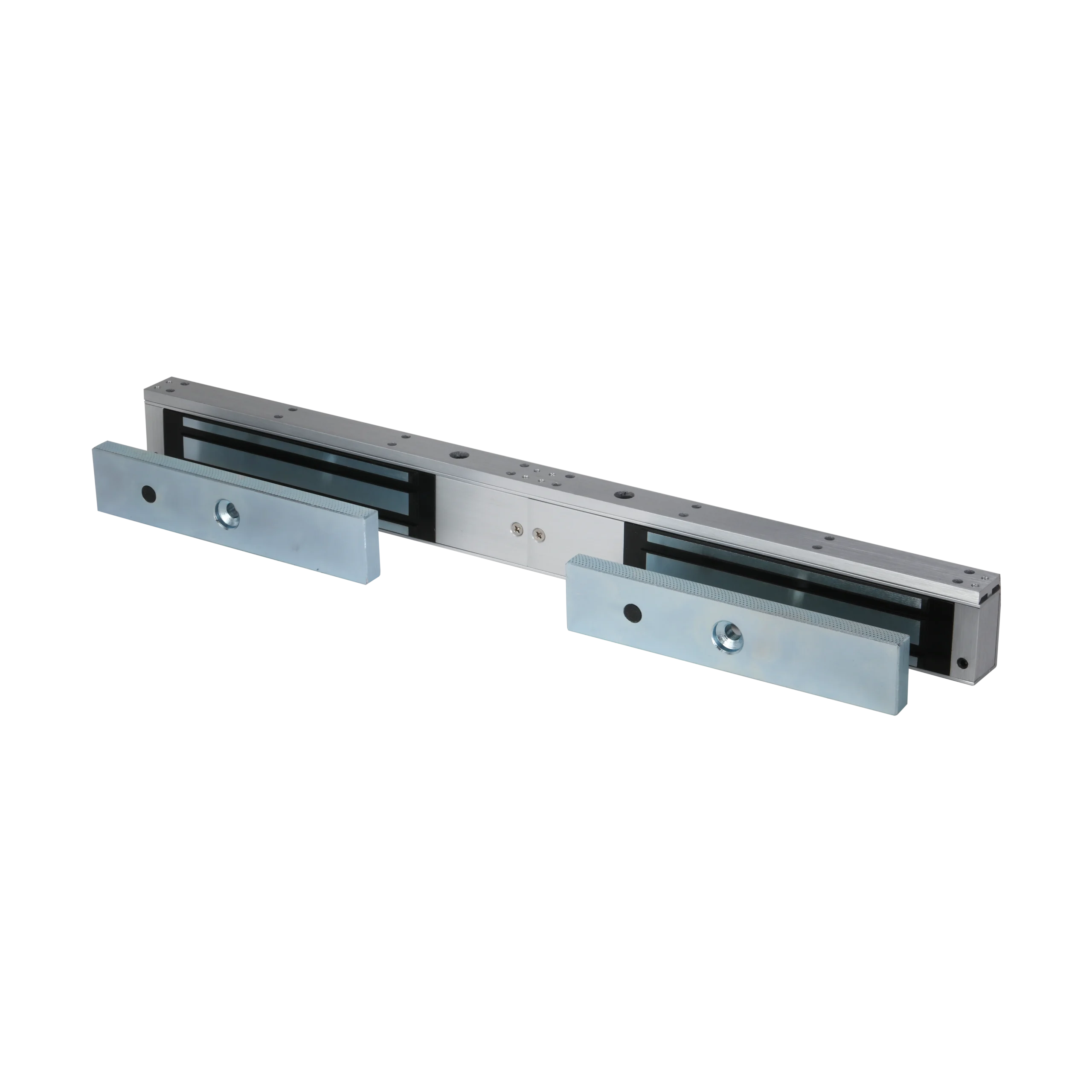

ASF280B-V1 - Dahua Magnetic Lock - Image 2

ASF280B-V1 – Dahua Magnetic Lock

Call for Price

> Built of aluminum alloy and treated with surface oxidation, making it suitable for indoor scenes.
> Embedded reverse current protection equipment.
> Built with anti-wear materials and has an anti-residual magnetism design.
> Displays the status with the LED indicator.
> 5-wire that supports door detector signal feedback.
> Has a long service life, allowing it to be powered on up to 40,000 times as indicated by the aging test.
> Completely relies on the electromagnetic force and is free from mechanical failure.
> Automatically unlocks the door when the device is powered off.
> Suitable for doors made of a variety of materials such as wood, glass, metal and fireproof materials.
> Compatible with all Dahua access control devices, and other mainstream access control devices.

Brand :
Dahua
SKU: ASF280B-V1 Categories: , , Tags: ,

Basic

Product Type

Magnetic lock

Casing Material

Aluminum alloy

Surface Treatment

Electroplating and drawing

Suction Plate Dimensions

180 mm × 38 mm ×13 mm (7.09" × 1.50" × 0.51") (2 pecs)

Function

Signal Output

COM/NO/NC

Door Status Detection

1, relay

Security

Open while power off

Performance

Max Tension

280 kg (617.29 lb) (2 pecs), tensile force

Unlock Angle

90°

General

Applicable Door Thickness

5 cm–15 cm (1.97"–5.91")

Power Adapter

Optional

Power Supply

12 VDC, 510 mA (2 pecs)

Power Consumption

≤12.2 W (working)

Lifespan

40000

Product Dimensions

500 mm × 48.6 mm × 26 mm (19.69" × 1.91" × 1.02")

Packaging Dimensions

520 mm × 63 mm × 66 mm (20.47" × 2.48" × 2.60") (package) 540 mm × 220 mm × 160 mm (21.26" × 8.66" × 6.30") (transport package)

Operating Temperature

–20 °C to +55 °C (–4 °F to +131°F)

Operating Humidity

5%–95% (RH), non-condensing

Operating Environment

Indoor

Gross Weight

4.2 kg (9.26 lb)

Accessory

DHI-ASF280ZL-V1, DHI-ASF280L-V1, and DHI-ASF280U-V1

Installation

Surface Mount

Anti-corrosion Level

Basic Protection

Description

ASF280B-V1

Magnetic Lock

> Built of aluminum alloy and treated with surface oxidation, making it suitable for indoor scenes.
> Embedded reverse current protection equipment.
> Built with anti-wear materials and has an anti-residual magnetism design.
> Displays the status with the LED indicator.
> 5-wire that supports door detector signal feedback.
> Has a long service life, allowing it to be powered on up to 40,000 times as indicated by the aging test.
> Completely relies on the electromagnetic force and is free from mechanical failure.
> Automatically unlocks the door when the device is powered off.
> Suitable for doors made of a variety of materials such as wood, glass, metal and fireproof materials.
> Compatible with all Dahua access control devices, and other mainstream access control devices.
