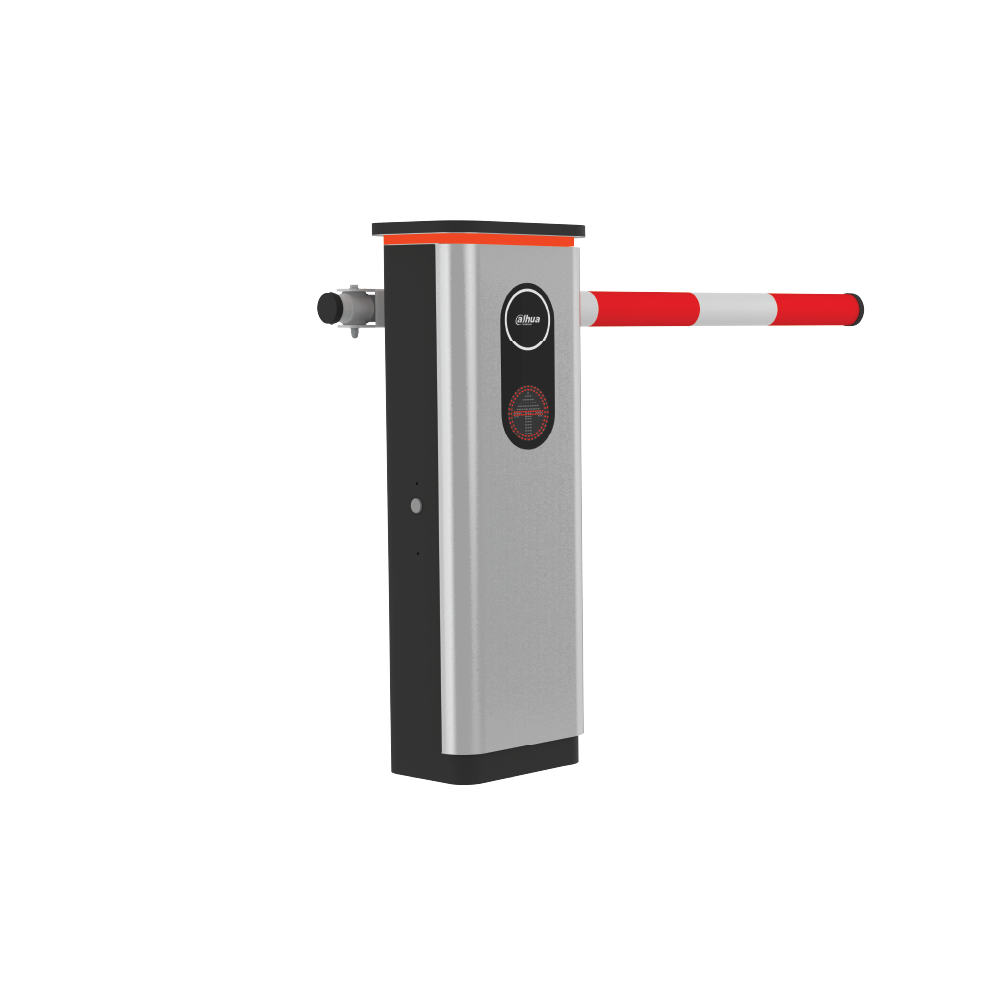

IPMECD-2067 - Cylinder Arm Barrier

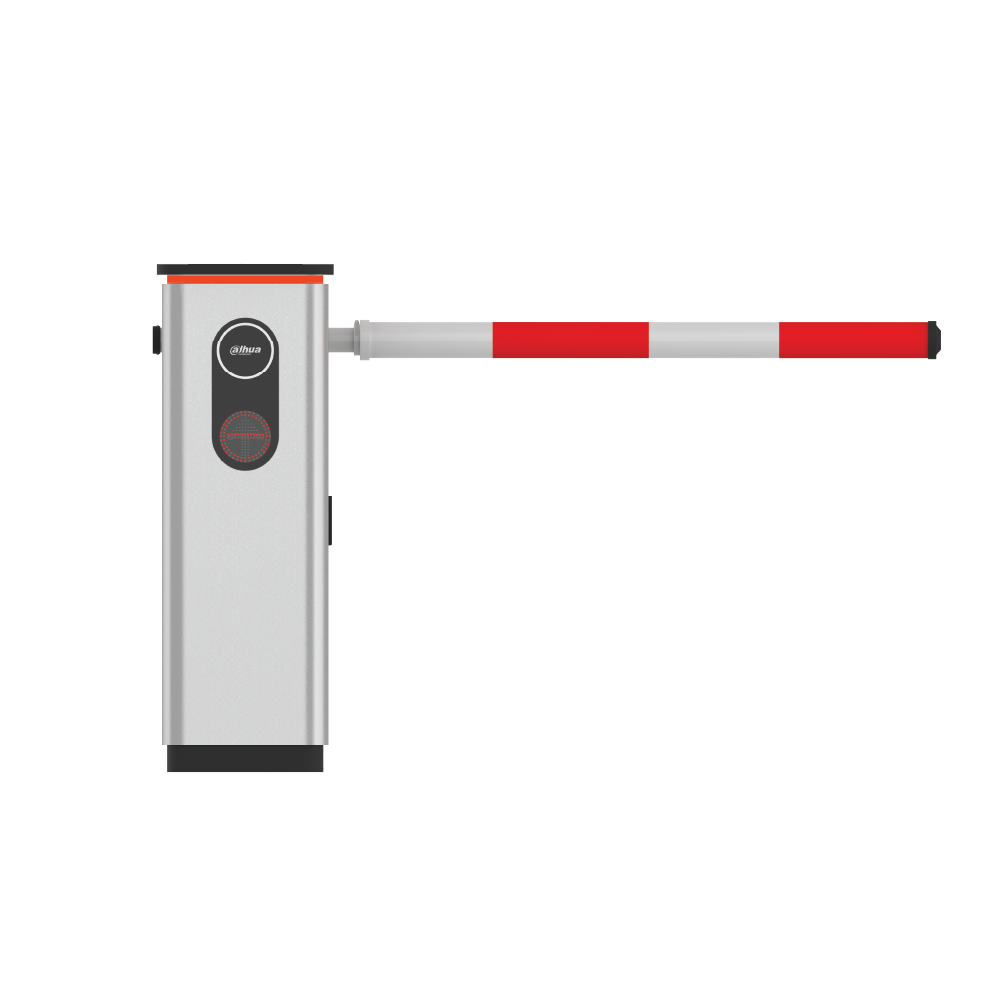

IPMECD-2067 - Cylinder Arm Barrier - Image 2

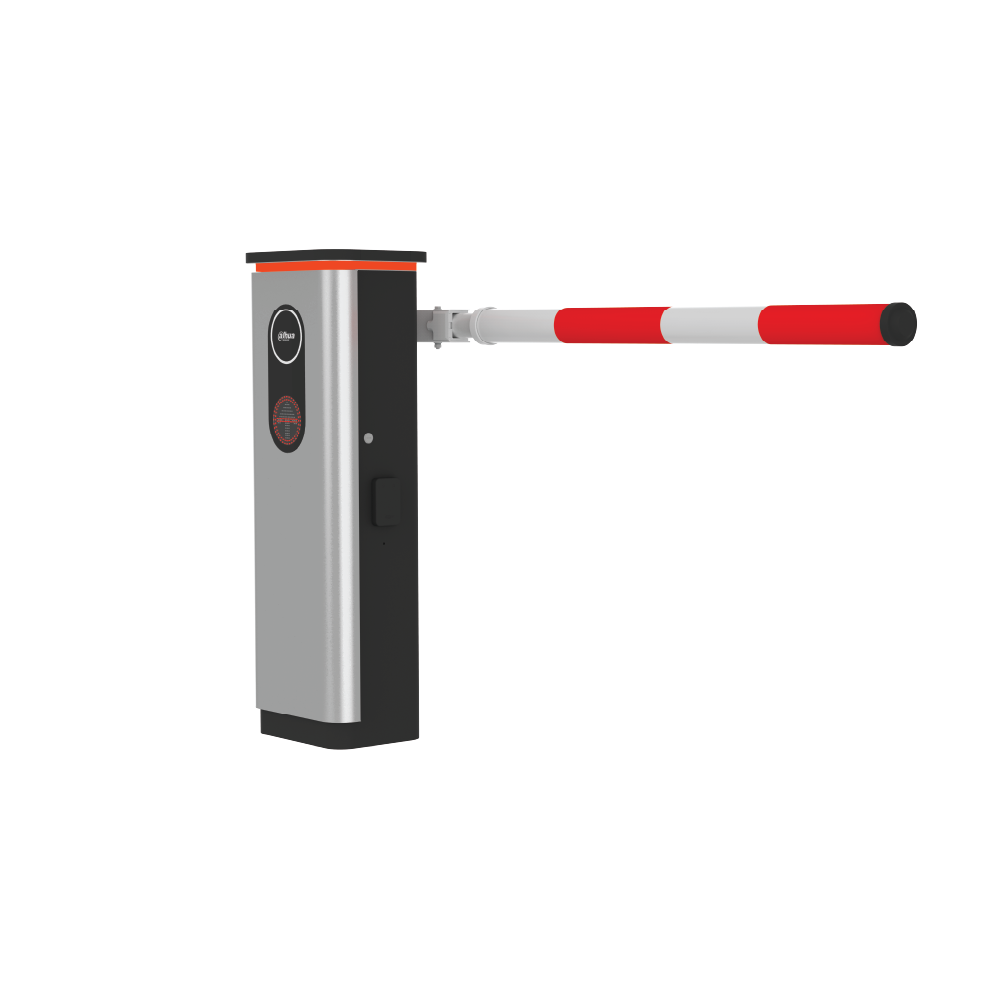

IPMECD-2067 - Cylinder Arm Barrier - Image 3

IPMECD-2067 – Cylinder Arm Barrier

Call for Price

SKU: IPMECD-2067 Categories: , , , Tags: , Brand:

> The arm is not included in the barrier gate controller.
> The springless barrier features a cylinder arm on the right, allowing for customized settings for both left and right operation, with quick switching between the two directions (Right by default).
> 24 VDC brushless motor that is quiet, highly secure, low power consumption, stable and efficient.
> 3 m–4 m (9.84 ft–13.12 ft) cylinder arm that can be adjusted according to its rising speed. It opens and closes in just 1.4-6 sec.
> Automatically rises when the barrier arm makes contact with an object.
> Automatically rises during a power failure.
> The speed and position at which the barrier rises and falls is adjustable.
> Supports remote control at a maximum distance of 50 m (164 ft) in open space.
> Supports external radar, loop, and the IR anti-smashing function. It also has a built-in 12 VDC output for powering the external radar.
> The camera can be connected via the RS-485 port, and the barrier status, including the number of operations, operating status, operation log can be read on the camera’s web interface.
> Operating temperature: –40 °C to +70 °C (–40 °F to +158 °F).
> Operating voltage: 100–264 VAC.
> Motor can withstand 6 million uses.

Basic

Arm Type

Cylinder Arm Barrier

Arm Length

cylinder arm: 3 m–4 m (9.84 ft–13.12 ft)

Arm Model

IPMECD-0267-M30 IPMECD-0267-M40

Opening/Closing Time

1.2 sec–4 sec（speed is measured by the arm length and weight）

Motor Type

DC brushless

Rotational Speed

2000 RPM

Transmission Ratio

88:1

Bluetooth Standard

GFSK, π/4-DQPSK

Bluetooth Frequency Range

NA2.402 GHz–2.480 GHz ISM band

Bluetooth Power Transmission

–15.7 dBm to +6.4 dBm

Sub 1G Modulation Type

ASK

Sub 1G Frequency Range

433.82 MHz–434.02 MHz

Sub 1G Power Transmission

433.82 MHz–434.02 MHz@–10 dBm

Port

RS-485

1

I/O

1

Status Output

2 channels. One channel is fully open and the other channel is fully closed.

Function

Anti-drop

Supports loop, IR and radar anti-smashing function.

Auto Opening in Power Failure

Yes

Auto Lifting against Obstruction

Yes

Anti-collision

Yes

Count Mode

Yes

Hand Crank Control in Power Failure

Yes

Limit Description

The position at which the barrier rises and falls is adjustable.

RS-485 Log

Access operation log information through the RS-485 port, the information includes the number of opening barrier, the type of opening barrier, error code and more

Remote Control

Supports remote control at a maximum distance of 50 m (164 ft) in open space.

Number of Pairable Remote Controllers

Includes 2 remote controls, and supports up to 40

Left and Right Interchangeable

Yes

Power Output

12 V ± 5% (Max: 1 A)

General

Power Supply

100–264 VAC

Power Consumption

＜360 W

Motor Lifespan

6 million times

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Humidity

10%–90% (RH), non-condensing

Protection

IP54

Anti-corrosion Level

Basic Protection

Product Dimensions

340.0 mm × 260.0 mm × 978.0 mm (13.39" × 10.24" × 38.50") (L × W × H)

Packaging Dimensions

1,058.0 mm × 375.0 mm × 425.0 mm (41.77" × 14.76" × 16.73") (L × W × H)

Net Weight

37.6 kg (82.92 lb)

Gross Weight

43.2 kg (95.52 lb)

Installation

Bottom-mounted with expansion bolts

Description

IPMECD-2067
Cylinder Arm Barrier

> The arm is not included in the barrier gate controller.
> The springless barrier features a cylinder arm on the right, allowing for customized settings for both left and right operation, with quick switching between the two directions (Right by default).
> 24 VDC brushless motor that is quiet, highly secure, low power consumption, stable and efficient.
> 3 m–4 m (9.84 ft–13.12 ft) cylinder arm that can be adjusted according to its rising speed. It opens and closes in just 1.4-6 sec.
> Automatically rises when the barrier arm makes contact with an object.
> Automatically rises during a power failure.
> The speed and position at which the barrier rises and falls is adjustable.
> Supports remote control at a maximum distance of 50 m (164 ft) in open space.
> Supports external radar, loop, and the IR anti-smashing function. It also has a built-in 12 VDC output for powering the external radar.
> The camera can be connected via the RS-485 port, and the barrier status, including the number of operations, operating status, operation log can be read on the camera’s web interface.
> Operating temperature: –40 °C to +70 °C (–40 °F to +158 °F).
> Operating voltage: 100–264 VAC.
> Motor can withstand 6 million uses.
