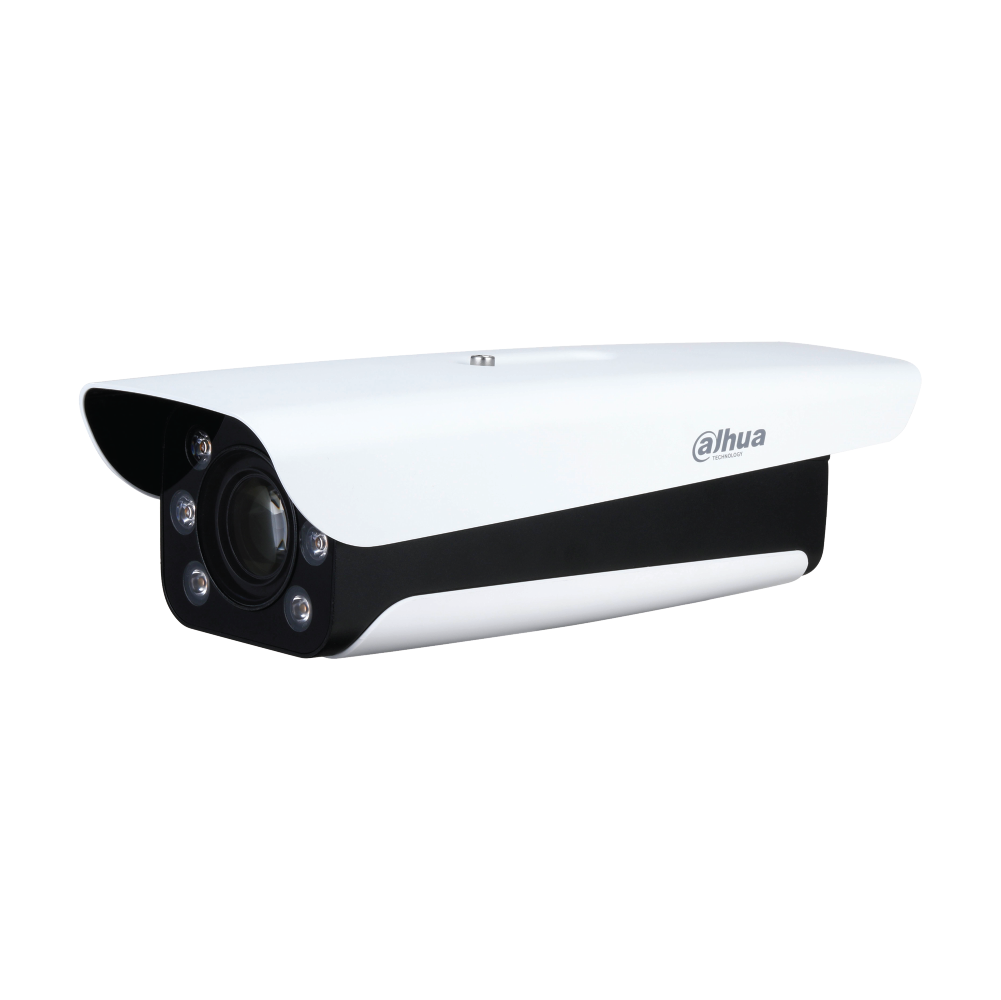

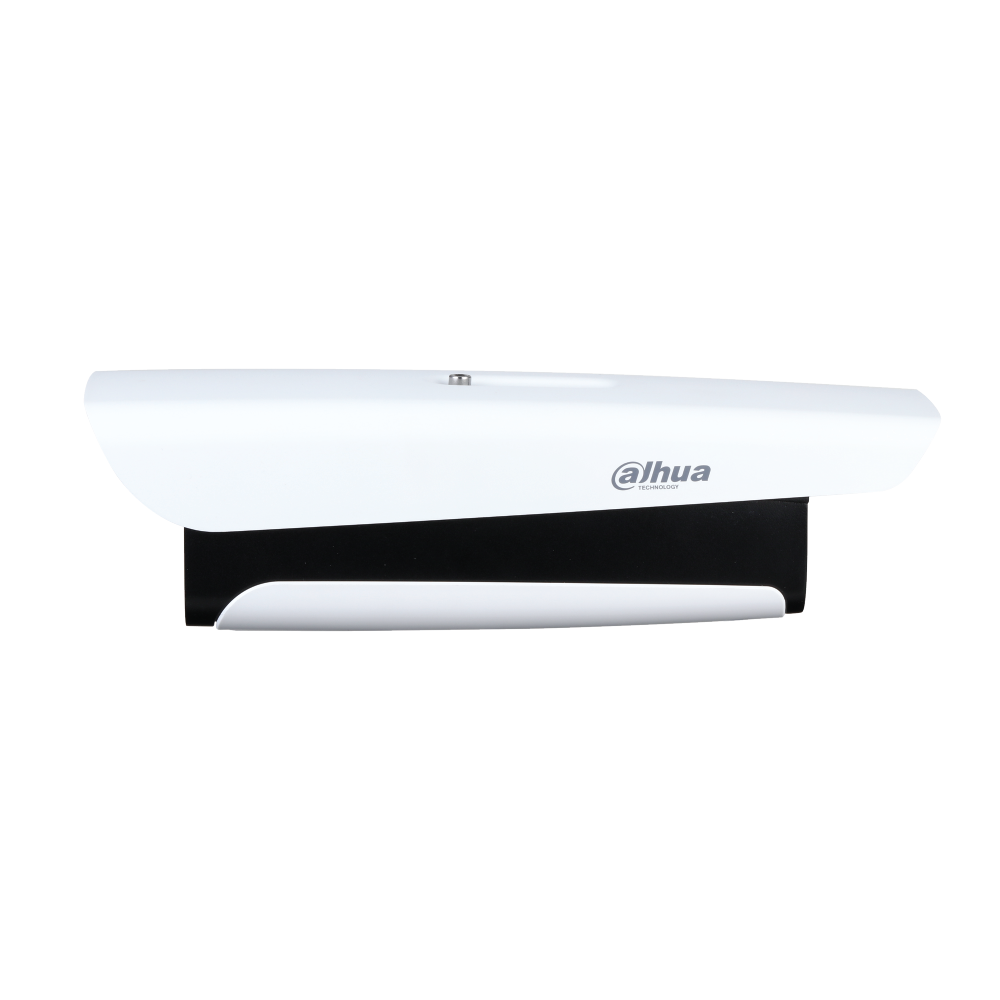

ITC439-PW1H-Z1050 – 4MP Outdoor Parking Space Detector

Basic

Illuminator Number

6 × white light (adjustable brightness)

Image Sensor

1/1.8'' CMOS

Image Resolution

2688 (H) × 1520 (V) (OSD black background is not calculated in the pixels)

Video Resolution

Main stream: 4M (2688 × 1520); UXGA (1600 x 1200); 1080p (1920 × 1080); 720p (1280 × 720) Sub stream: 720p (1280 × 720); D1 (704 × 576, 704 × 480); CIF (352 × 288, 352 × 240)

Video Frame Rate

PAL: Main stream (2688 × 1520@25 fps, 1600 × 1200@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps); sub stream: (1280 × 720@25 fps, 704 × 576@25 fps, 352 × 288@25 fps) NTSC: Main stream (2688 × 1520@30 fps, 1600 × 1200@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps); sub stream: (1280 × 720@30 fps, 704 × 576@30 fps, 352 × 288@30 fps)

Bit Rate

H.264M: 32 kbps–32768 kbps H.264H: 32 kbps–32768 kbps H.265: 32 kbps–32768 kbps MJPEG: 512 kbps–65536 kbps

Video Compression

H.264M; H.264H; H.265; MJPEG

Picture Encoding Format

JPEG

Noise Reduction

3D NR

White Balance

Auto; Natural; Street lamp; Outdoor; Manual; Regional custom

Electronic Shutter Speed

1/25–1/10000, auto or manual

WDR

96 db

Edge Enhancement

Yes

Exposure Mode

Auto; Manual (select from shutter values or customize shutter range)

Iris Control

Auto iris (W: 1.33–T: 1.34)

Performance

Shutter

Single shutter

Storage

1 × built-in TF card slot. The following cards are supported: Kingston 16 GB, 32 GB, 64 GB, and 128 GB; Dahua 16 GB, 32 GB, 64 GB, and 128 GB; SanDisk 16 GB, 32 GB, 64 GB, and 128 GB.

Image Tampering Prevention

Yes. Verifies watermarks in videos and images

Field of View

H: 40.55° (W)–9.33° (T) V: 22.7° (W)–5.3° (T) D: 46.6° (W)–10.63° (T)

Illumination Distance

30 m (98.43 ft)

Min. Illumination

0.002 lx (built-in illuminator on)

Alarm Event

Storage full, storage error, no storage card, network disconnection, IP conflict, and illegal access.

Security

Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control

OSD Overlay

Time, address, device SN, week, space statistics, anti-counterfeiting code, and custom information.

Auto Registration

Yes

Intelligence

Vehicle Detection

Vehicle capture rate ≥95%

Vehicle Recognition

Supports licensed and unlicensed vehicle recognition.

Illegal Parking Detection

Yes

Available Space Detection

Yes

Number of Available Spaces

Max. 50 spaces

Counting Mode

Area monitoring, parking space monitoring, and plate recognition mode.

Parking Space Attributes

The attributes of large and small spaces can be configured.

Port

Lens Mount

Module

Analog Output

1

Network

1 × RJ-45 Ethernet port, 100/1000 M network transmission

RS-485

2

RS-232

1

Alarm Input

3, optocoupler input (on-off input)

Alarm Output

3 (1 for relay, and 2 for optocoupler), used to link the barrier.

Audio Input

1-channel RCA port

Audio Output

1-channel RCA port

General

Power Supply

12 VDC, 24 VAC, POE+

Power Consumption

<20 W

Operating Temperature

−30 °C to +65 °C (−22 °F to +149 °F)

Operating Humidity

10% (RH)–90% (RH) (no condensation)

Casing

Metal + plastic

Protection Grade

IP67

Dimensions

370.5 mm × 124.7 mm × 105.7 mm (14.59" × 4.91" × 4.16") (L × W × H)

Net Weight

1.7 kg (3.75 lb)

Gross Weight

2.3 kg (5.07 lb)

Installation

Universal mounting bracket

Lens

Included, 11 mm–46.5 mm
