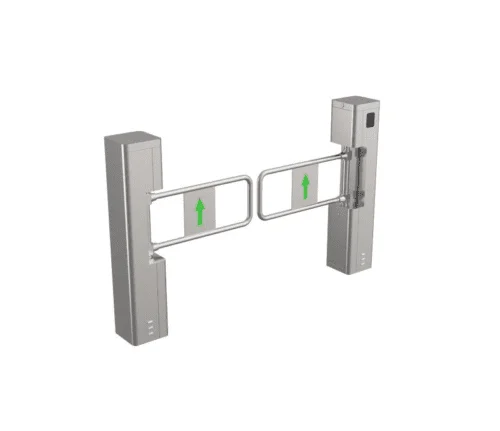

Value Swing Gate

Description

• Valid passing duration settings: System will cancel the passing permission if a person does not pass through the lane within the valid passing duration
• Door remaining open when fire alarm triggered: The barrier will open automatically when alarm is triggered
• Barrier will be in free status when powering down

• System
• MCBF＞3 million times
• MotorBrush motor

• General
• Throughput

  20 to 60 persons per minute

  The actual throughput is affected by the person passing rate and passing method.

• Power Supply Method100 to 240 VAC; 50 to 60 Hz
• Working Temperature-10 °C to 45 °C (14 °F to 113 °F)
• Lane Width

  600 mm ( for Stainless steel pipe )

  600 mm to 1100 mm ( for Acrylic glass )

• Barrier MaterialStainless steel pipe; Acrylic glass
• Working Humidity10% to 95% (No Condensing)
• Pedestal MaterialSUS304 stainless steel
• Dimensions

  Without packaging: 1200 mm × 200 mm × 1020 mm (47.2″ × 7.9\” × 40.2\”)

  With packaging: 1408 mm × 348 mm × 1156 mm (55.4 × 13.7\” × 45.5\”)

• Application EnvironmentIndoor
• Weight

  35 kg/38 kg (Left/Right)

  77.2 lb/83.8 lb (Left/Right)

• Configuration
• Module SelectionNO
• Authentication ModeCard;Face
• Card TypeEM;M1
• Wall Distance130 mm
• Lane Width600;650;750;900;1100
• Recommended Width600
• Pedestal Width200mm
• Pedestal Length200mm
• Barrier MaterialAcrylic glass;Stainless steel pipe
• BaseNO
