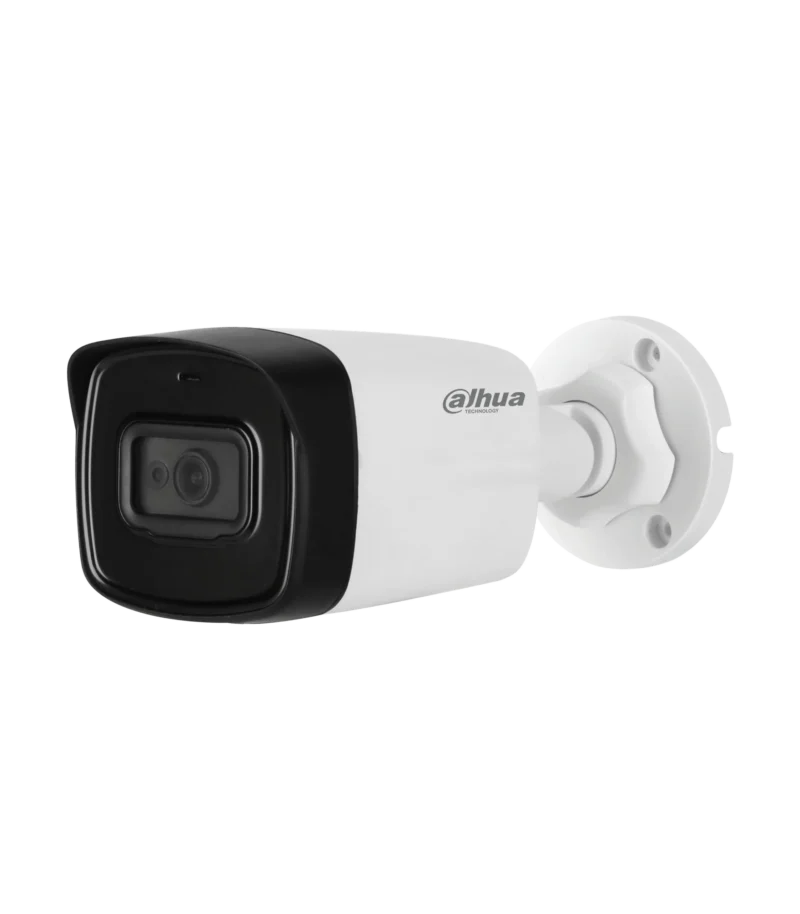

HAC-HFW1800TL(-A) – Dahua 4K Real-time HDCVI IR Bullet Camera

Call for Price

Max. 4K resolution, real-time video transmission

> CVI/CVBS/AHD/TVI switchable
> Built-in mic (-A)
> Fixed lens (2.8mm; 3.6mm;6mm optional)
> Max. IR length 80m, Smart IR
> IP67, 12V±30%DC

Brand :
Camera
Image Sensor1/2.7 inch CMOS
Effective Pixels3840 (H)× 2160 (V), 4K
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
S/N Ratio>65dB
Minimum Illumination0.03Lux/F2.0, 30IRE, 0Lux IR on
Fill Light Working Distance80m(262.5ft)
IR On/Off ControlAuto; manual
IR LED Number2
Pan/Tilt/Rotation RangePan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8mm; 3.6mm;6mm
Max. ApertureF2.0
Angle of View2.8mm: 125° x 105° x 56° (diagonal x horizontal x vertical) 3.6mm: 104° x 87° x 47° (diagonal x horizontal x vertical) 6mm:62.4° x54.7° x31.3°(diagonal x horizontal x vertical)
Iris TypeFixed iris
Close Focus Distance2.8mm: 1.0 m (3.3 ft) 3.6mm: 1.9 m (6.2 ft) 6mm:3.6m(11.8ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8mm74.7 m (245.1 ft)29.9 m (98.1 ft)14.9 m (48.9ft)7.5 m(24.6 ft)
3.6mm106.7 m (350.1 ft)42.7 m (140.1 ft)21.3 m (69.9 ft)10.7 m (35.1 ft)
6mm160m(524.9 ft)64 m (210.0ft)32 m (105.0ft)16 m (52.5ft)
Video
Frame RateCVI: 4K@25/30fps; 4K@15fps; 5M@20fps; 4M@25fps/30fps; AHD: 4K@15fps; TVI: 4K@15fps; CVBS: 960H"
Resolution4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960 × 576/960 × 480)
Day/NightAuto switch by ICR
BLCBLC/HLC/WDR
WDRDWDR
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction2D NR
Smart IRYes
MirrorOff/On
Privacy MaskingOff/On (8 area, rectangle)
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel, built-in mic (-A)
Power
Power Supply12V ±30% DC
Power ConsumptionMax 6W (12V DC, IR on)
Environment
Operating Temperature-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
Storage Temperature-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
Protection GradeIP67
Structure
CasingMetal front cover+plastic main body+plastic bracket
Camera Dimensions198.9mm×80.2mm×76.2mm(7.83”×3.16”×3.0”)
Net Weight0.28Kg (0.62lb)
Gross Weight0.42Kg (0.93lb)
