HAC-HDW1239TLQ(-A)-LED

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s;

NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.001 [email protected] (Color, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 101°; V: 53.4°; D: 119.5°

3.6 mm: H: 81.5°; V: 44.3°; D: 95.7°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.1 m (3.61 ft)

3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

47.1 m

( 154.53 ft)

18.9 m

( 62.01 ft)

9.4 m

( 30.84 ft)

4.7 m

( 15.42 ft)

3.6 mm

55.7 m

( 182.74 ft)

22.3 m

( 73.16 ft)

11.1 m

( 36.42 ft)

5.6 m

( 18.37 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

CVBS: PAL: 960H; NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Color

BLC

BLC; HLC; WDR

WDR

130 dB

White Balance

Auto;Area white balance

Gain Control

Manual;Auto

Noise Reduction

3D NR

Illumination Mode

Smart Light

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 5.94 W (12 VDC, LED on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Dome (metal + plastic) + plastic enclosure

Product Dimensions

Φ97.1 mm × 94.2 mm (Φ3.82" × 3.71")

Net Weight

0.22 kg (0.49 lb)

Gross Weight

0.31 kg (0.68 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

Description

2MP Full-color HDCVI Fixed-focal Eyeball Camera

* The parameters and datasheets below can only be applied to1239-S3 series.

> 24/7 color imaging, Max. 30 fps@1080p

> Smart Light+.

> 30 m illumination distance

> Super Adapt, 130 dB true WDR, 3D NR

> Built-in Mic.

> Quick-to-install eyeball saves installation time.

> 3.6 mm fixed lens (2.8 mm optional)

> CVI/CVBS/AHD/TVI switchable

> IP67, 12 VDC

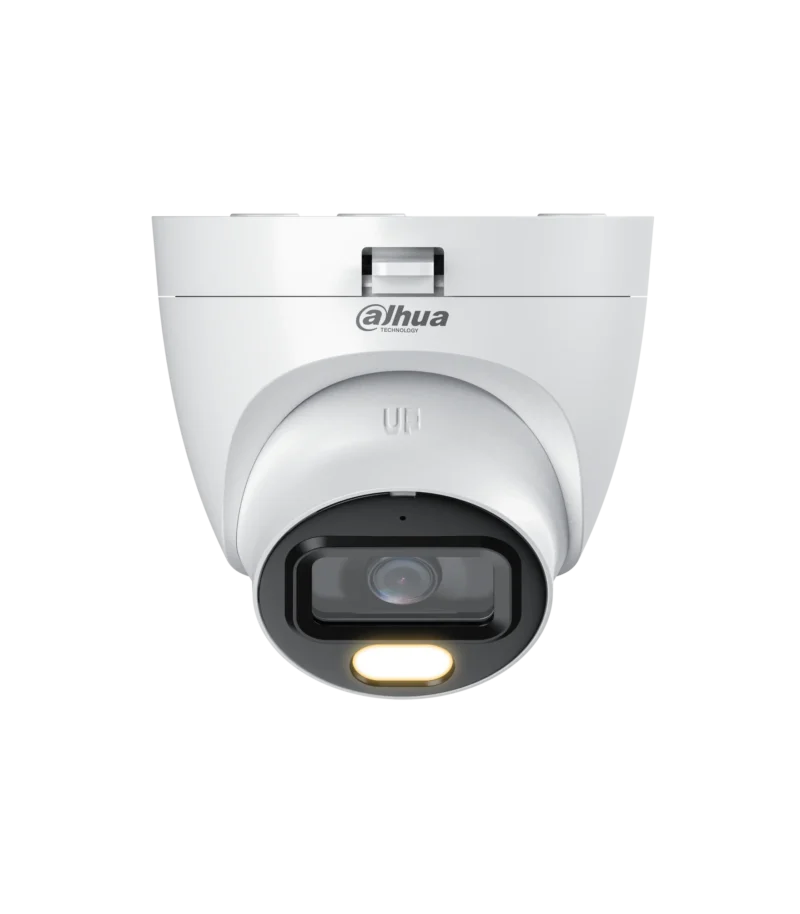

HAC-HDW1239TLQ(-A)-LED – Dahua 2MP Full-color HDCVI Fixed-focal Eyeball Camera
