Dahua/Fingerprint Enrolment Reader

Call for Price

Description

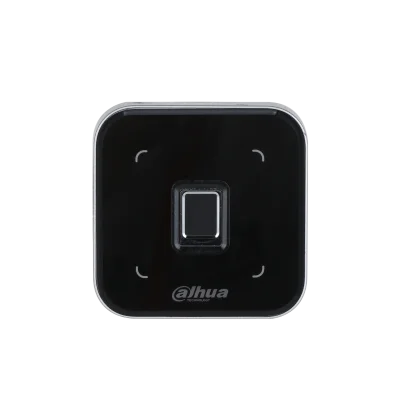

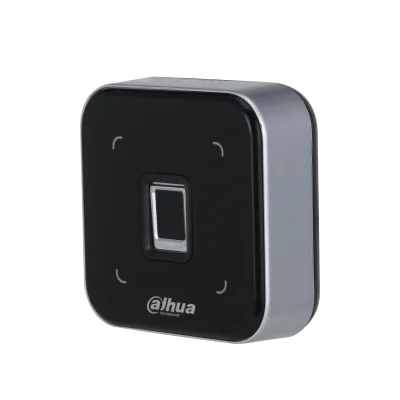

Fingerprint Enrollment Reader Dahua – ASM101A.

> PC material and acrylic panel suitable for indoor use.

> Support IC card (Mifare card), ID card issuing, and fingerprint collection.

> USB2.0 interface. Plug and play, no need to install driver.

> LED indicator and buzzer prompt for successful card issuing and.

> Supports SmartPSS AC and DSS Pro platforms.

Fingerprint Enrollment Reader

> PC material and acrylic panel suitable for indoor use
> Support IC card (Mifare card), ID card issuing, and fingerprint collection
> USB2.0 interface. Plug and play, no need to install driver
> LED indicator and buzzer prompt for successful card issuing and
> Supports SmartPSS AC and DSS Pro platforms

Basic

Product Type

Capacitive fingerprint enrollment reader

Buzzer

Yes

Casing

PC/acrylic panel

Function

Communication Mode

ID card; IC card (Mifare card)

Prompt of Succeeded in Issuing Card

Card issuer flashes green

Performance

IC Card Encryption

Yes

Card Reading Frequency

13.56MHz/125KHz

Card Issuing Distance

0 cm–5 cm (0″–0.20″)

Fingerprint Sensor Type

Capacitive fingerprint sensor

Fingerprint Recording Time

1800 ms

General

Power Supply

5V 0.5A DC

Power Consumption

Standby ≤ 1.0W, working ≤ 1.7W

Product Dimensions

70 mm × 70 mm × 26 mm (2.76″ × 2.76″ × 1.02″) (L × W × H)

Packaging Dimensions

110 mm × 97 mm × 90 mm (4.33″ × 3.82″ × 3.54″)

(L × W × H, 1 in inner carton)

578 mm × 313 mm × 204 mm (22.76″ × 12.32″ × 8.03″)

(L × W × H, carton)

Operating Temperature

–20°C to +65°C (–4°F to +149°F)

Operating Humidity

5%RH–95% (non-condensing)

Operating Environment

Indoor

Gross Weight

0.17 kg (0.37 lb)

Installation

Desk mount

Certifications

CE; FCC

Specifications

Article number
9D00FA6PAJ3855F
EAN Code
6939554951152
SKU
DHI-ASM101A
