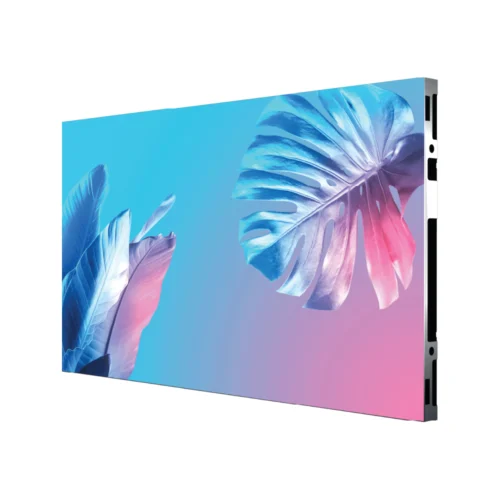

PHSIA1.8-SS - Dahua Indoor Fine Pixel Pitch LED

PHSIA1.8-SS – Dahua Indoor Fine Pixel Pitch LED

Call for Price

Categories: , , , Tag: Brand:

> Ultra-thin 25mm and super-light 5.0kg design.
> 16:9 Golden aspect ratio , can easily achieve pixel to pixel 2K,4K,8K,16K resoluton.
> CNC die-casting aluminum cabinet, splicing tolerance is controlled within ±0.1mm.
> Supports dual backup of power supply and signals (customizable).
> Dot by dot calibraton ensures color richness and brightness uniformity.

Model
Model DHI-PHSIA1.8-SS
Parameters
Pixel Pitch 1.875mm
Pixel Configuration 1R1G1B
LED Type SMD1515
Brightness (Max) 600 nit
Color Temperature 2000k ~ 9500K(adjustable)
Viewing Angle H160° / V140°
Pixel Density 284,444 dots/m²
Module Size 300mm×168.75mm
Module Resolution 160x90 dots
Cabinet Size W600mm×H337.5mm×D25mm
Cabinet Resolution (W×H) 320×180 dots
Cabinet Weight 4.5 kg ± 0.5
Cabinet Material Die-cast Aluminum
Operating Temperature/Humidity -20℃~+50℃/10~80%RH
Storage Temperature/Humidity -25℃~+60℃/10~80%RH
IP Rating Front IP30 / Rear IP30
Aspect Ratio 16:9
Gray Scale 14 bits
Contrast Ratio 5000:1
Refresh Rate 3840Hz
Input Voltage AC 110~220V (+/-10%)
Input Power (max) 400 W/m2
Input Power (Avg) 135 W/m2
Installation Wall Mounted/Floor Mounted
Maintenance Front Maintenance
Lamp Lifespan ≥100,000 H
Signal Transmission Distance CAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km)

Description

PHSIA1.8-SS

Indoor Fine Pixel Pitch LED

> Ultra-thin 25mm and super-light 5.0kg design.
> 16:9 Golden aspect ratio , can easily achieve pixel to pixel 2K,4K,8K,16K resoluton.
> CNC die-casting aluminum cabinet, splicing tolerance is controlled within ±0.1mm.
> Supports dual backup of power supply and signals (customizable).
> Dot by dot calibraton ensures color richness and brightness uniformity.
