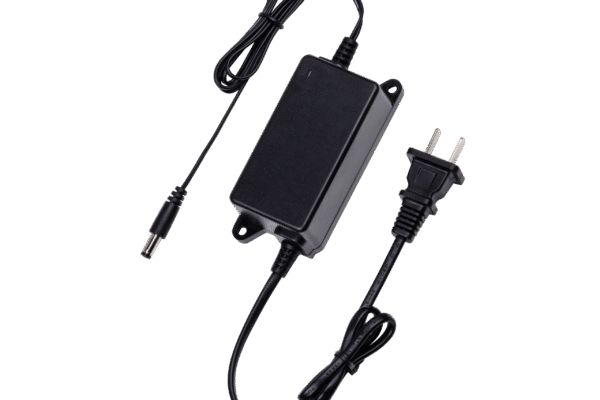

DH-PFM320D Series – Dahua 12V 2A Power Adapter

Call for Price

> Easy installation
> With indicator light working
> Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
> Accurate overcurrent, overvoltage protection
> Fully Meets ERP.COMMISSION REGULATION (EU)2019/1782 Requirement

Brand :
Electrical Specification
Input100–240 V, 50/60 Hz, 0.6 A
Output12 V, 2 A (+7% , –3%)
Protection/Environmental
ProtectionSurge protection, over temperature protection,over current, voltage load protectionESD: EN61000-4-2+/-4 kV Contact; +/-8 kV AirSurge: EN61000-4-5"Combination Wave: Common Mode ±4 KV (12 ohms);Differential Mode ±2 kV (2 ohms)
Working Temperature–30 °C to +70 °C (–22 °F to +158 °F)
Working Humidity< 95% RH
Physical Properties
Weight170 g (0.37 lb)
Dimension(Lxwxh)104 mm × 45 mm × 33 mm (4.09" × 1.77" × 1.30")
Installation ModePlane installation
ColorBlack
Input Plug2-pin Europlug3-pin British plug2-pin North American plug
Outgoing CordAC wire: 50 cm (19.69"), DC wire: 80 cm (31.50")
DC PlugΦ5.5 mm × Φ2.1 mm × 12 mm (Φ0.22" × Φ0.08" × 0.47")
Certifications
CertificationPFM320D-EN/PFM320D-BS:CE LVD(EN62368-1:2014+A11:2017)CE EMC(EN55032:2015,EN61000-3-2:2014,EN61000-3-3:2013,EN55035:2017)PFM320D-US:UL-VI(UL60950-1)FCC(FCC Part 15 Subpart B)DOE(VI)CEC(VI)

Description

PFM320D Series

12V 2A Power Adapter

> Easy installation
> With indicator light working
> Support -30℃~+70℃ wide-range temperature operation, and the full load efficiency of the power supply can be up to 100% at these temperatures
> Accurate overcurrent, overvoltage protection
> Fully Meets ERP.COMMISSION REGULATION (EU)2019/1782 Requirement
