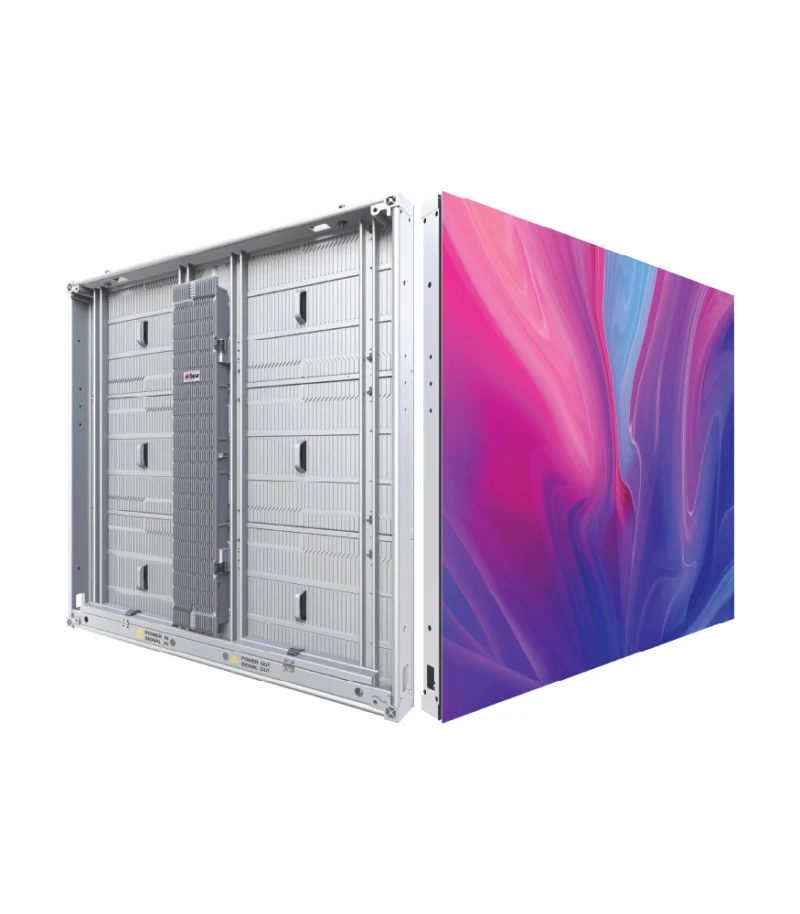

PHGOA10-PH - Dahua General Outdoor Fixed LED

PHGOA10-PH – Dahua General Outdoor Fixed LED

Call for Price

Categories: , , , Tag: Brand:

> Super thin and light design: 85mm and 30kg/㎡.
> Support front&rear installation and maintenance.
> Acurat electicit ditibuton for RGB LED chips to save energy and lower the power consumption by more than 30%.
> Aluminum Module chassis and panel frame accelerates heat dissipation.
> High protection grade, IP68 on front and IP66 on rear.
> Dot by dot calibration ensures color richness and brightness uniformity.

Model
Model DHI-PHGOA10-PH
Parameters
Pixel Pitch 10mm
Pixel Configuration 1R1G1B
LED Type SMD3535
Brightness (Max) 6500 nit
Color Temperature 3500K-10000K（adjustable)
Viewing Angle H160° / V90°
Pixel Density 10,000 dots/m²
Module Size 480mm×320 mm
Module Resolution 48x32 dots
Cabinet Size W960mm×H960mm×D85mm
Cabinet Resolution (W×H) 96×96 dots
Cabinet Weight 28 kg ± 0.5
Cabinet Material Aluminum Alloy
Operating Temperature/Humidity -40℃~+60℃/10~80%RH
Storage Temperature/Humidity -40℃~+60℃/10~80%RH
IP Rating Front IP68/Rear IP66
Aspect Ratio 1:1
Gray Scale（Max） 14 bits
Contrast Ratio 6000:1
Refresh Rate（Max） 3840Hz
Input Voltage AC 110~220V (+/-10%)
Input Power (max) 550 W/m2
Input Power (Avg) 150 W/m2
Installation Wall Mounted/Floor Mounted
Maintenance Front&Rear Maintenance
Lamp Lifespan ≥100,000 H
Signal Transmission Distance CAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km)
