Sale!
tiandy TC-C32KS

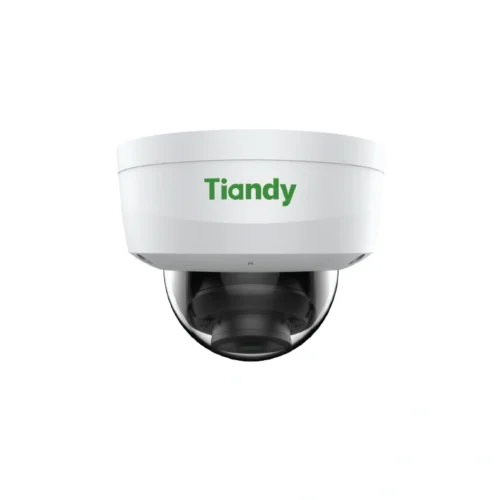

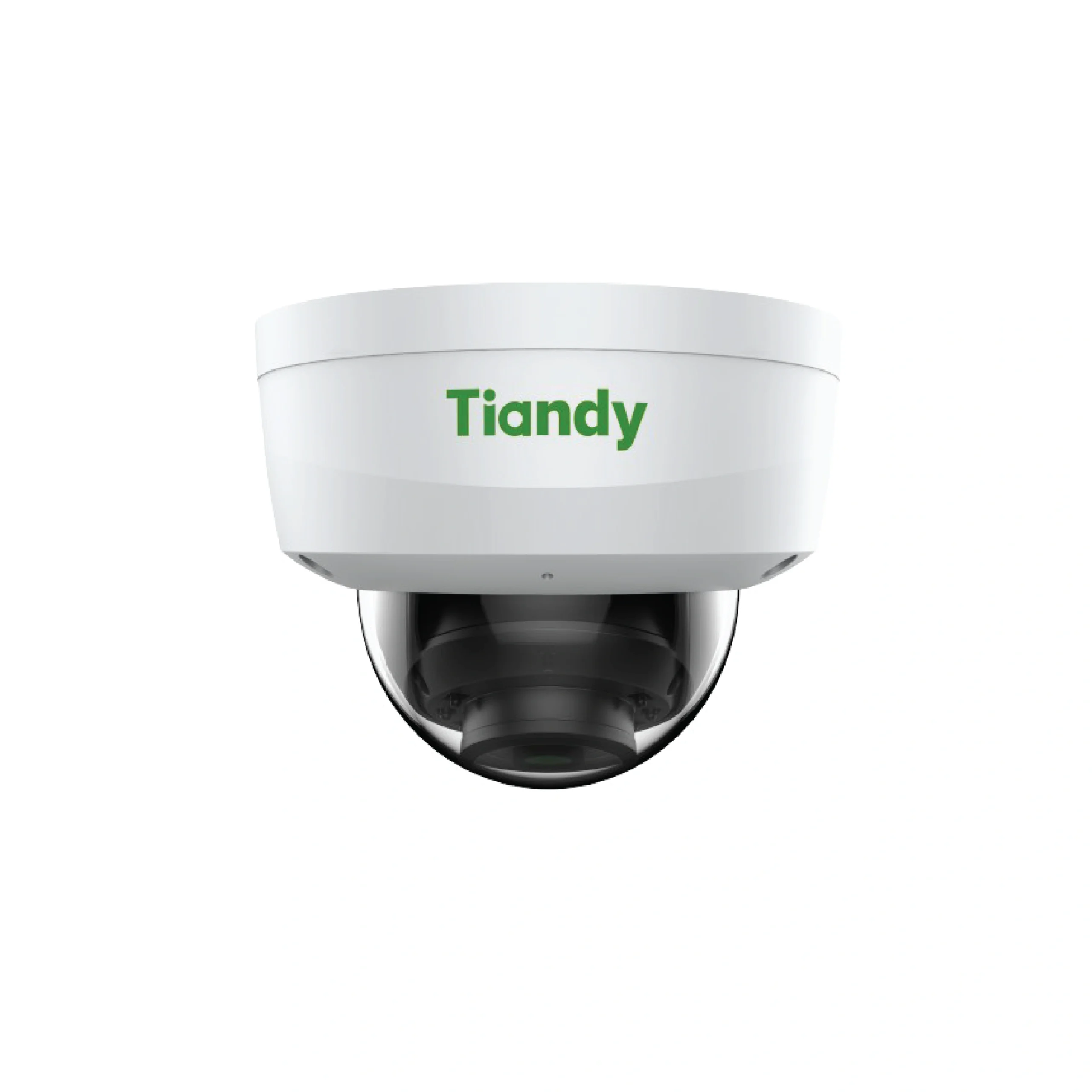

TC-C32KS – 2MP Fixed Dome Camera

Original price was: 120,00 ر.ق.Current price is: 100,00 ر.ق.

SKU: TC-C32KS Categories: , , Tags: ,

Features

  • Metal Housing
  • Up to Max. Resolution
  • S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
  • Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
  • IR Range 30m
  • Built-in Mic
  • Support microSD/microSDHC/microSDXC card, up to 512GB
  • Support Smart surveillance, Face Capture
  • Support Human/Vehicle Classification
  • Operating Conditions -40℃~65℃(No turning on the light), Humidity 95% or less (no condensation)
  • DC12V±25%,MAX 5.5W, POE 802.3af,MAX 7W
  • IP66, IK10
Camera
Image Sensor1/2.8" CMOS
Min. IlluminationColor:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time1s to 1/100,000s
Day & NightIR-cut filter with auto switch (ICR)
Wide Dynamic Range120dB
S/N>42dB
Angle Adjustment0~330°(P); 0~75°(T); 0~350°(R)
Lens
Lens TypeFixed focal lens
Focal Length2.8mm
Lens MountM12
Aperture RangeF1.6
Field of View104.9°(H); 56.5°(V); 119.2°(D)
DORI DistanceDetect:38.5m Observe:15m Recognize:7.5m Identify:3.5m
Illuminator
IR Light8
IR Distance30m
Wavelength850nm
Compression Standard
Video CompressionS+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Video Bit Rate32k~8Mbps
Audio CompressionG.711A/G.711U/ADPCM_D/AAC_LC
Audio Sampling Rate8kHz/32kHz/48kHz
Main StreamPAL:25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC:30fps(1920×1080, 1280×720, 640×480, 704×480)
Sub StreamPAL:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fps(704×480, 704×240, 352×240, 640×360)
Third StreamPAL:25fps(704×576, 704×288, 352×288) NTSC:30fps(704×480, 704×240, 352×240)
BLCYes
HLCYes
AGCYes
3D DNRYes
White BalanceAuto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance
ROI8 rectangular static areas
Corridor modeYes
OSDOverlay of additional characters in 5 regions, 1 line, with a maximum of 127 characters or 42 Chinese characters per region; 16*16/32*32/48*48/64*64
Picture Overlay1*200x200 size BMP 16 color bit image overlay
Privacy Mask4 black static areas
DefogYes
Feature
Alarm TriggerMotion Detection; Mask Alarm; Voltage Alarm; Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict; FTP Server Exception
Linkage Methodsend email; trigger recording; trigger capture; notify surveillance center
Video AnalyticsHuman/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Lost; Heatmap; Loitering; Running; Parking; People Counting; Crowed; Safety Helmet Detection; On Duty Detection; Video Abnormal
Rules of behavior analyse in 1 scene8
Face ModeFace Capture
Face Detection Performance16; 8
Network
ANRYes
ProtocolsHTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; SSL; 802.1X; QoS; IPv4; IPv6; PPPOE; SSH; Unicast; Multicast; RTCP; ARP; SRTP; RTSP; FTP; SFTP; NAS
System CompatibilityONVIF Profile S/T/G/M; CGI; Milestone; RTMP
Remote Connection≤7
ClientEasy7 Smart Client
Moblie ClientEasyLive Plus
Interface
Communication Interface1*RJ-45,10/100 Mbps self-adaptive Ethernet port
Reset ButtonYes(Built-in)
On-board storageSupport microSD/microSDHC/microSDXC card, up to 512 GB
RTCYes
General
Web Client Language19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/ French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian
Operating Temperature-40℃~65℃(No turning on the light)
Operating HumidityHumidity 95% or less (no condensation)
Storage Temperature-40℃~65℃
Storage HumidityHumidity 95% or less (no condensation)
Power SupplyDC12V±25%,MAX 5.5W; POE IEEE802.3af,MAX 7W
ProtectionSurge6000V; IP66; IK10
Boundary Dimensions120(L)120(W)90(H)mm
Package Dimensions140(L)140(W)120(H)mm
GrossWeight0.68kg

Description

TC-C32KS Spec:I3/E/Y/M/2.8mm/V4.1

2MP Fixed Dome Camera

Features

  • Metal Housing
  • Up to Max. Resolution
  • S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
  • Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
  • IR Range 30m
  • Built-in Mic
  • Support microSD/microSDHC/microSDXC card, up to 512GB
  • Support Smart surveillance, Face Capture
  • Support Human/Vehicle Classification
  • Operating Conditions -40℃~65℃(No turning on the light), Humidity 95% or less (no condensation)
  • DC12V±25%,MAX 5.5W, POE 802.3af,MAX 7W
  • IP66, IK10
